To replace the component, reverse the removal procedure.

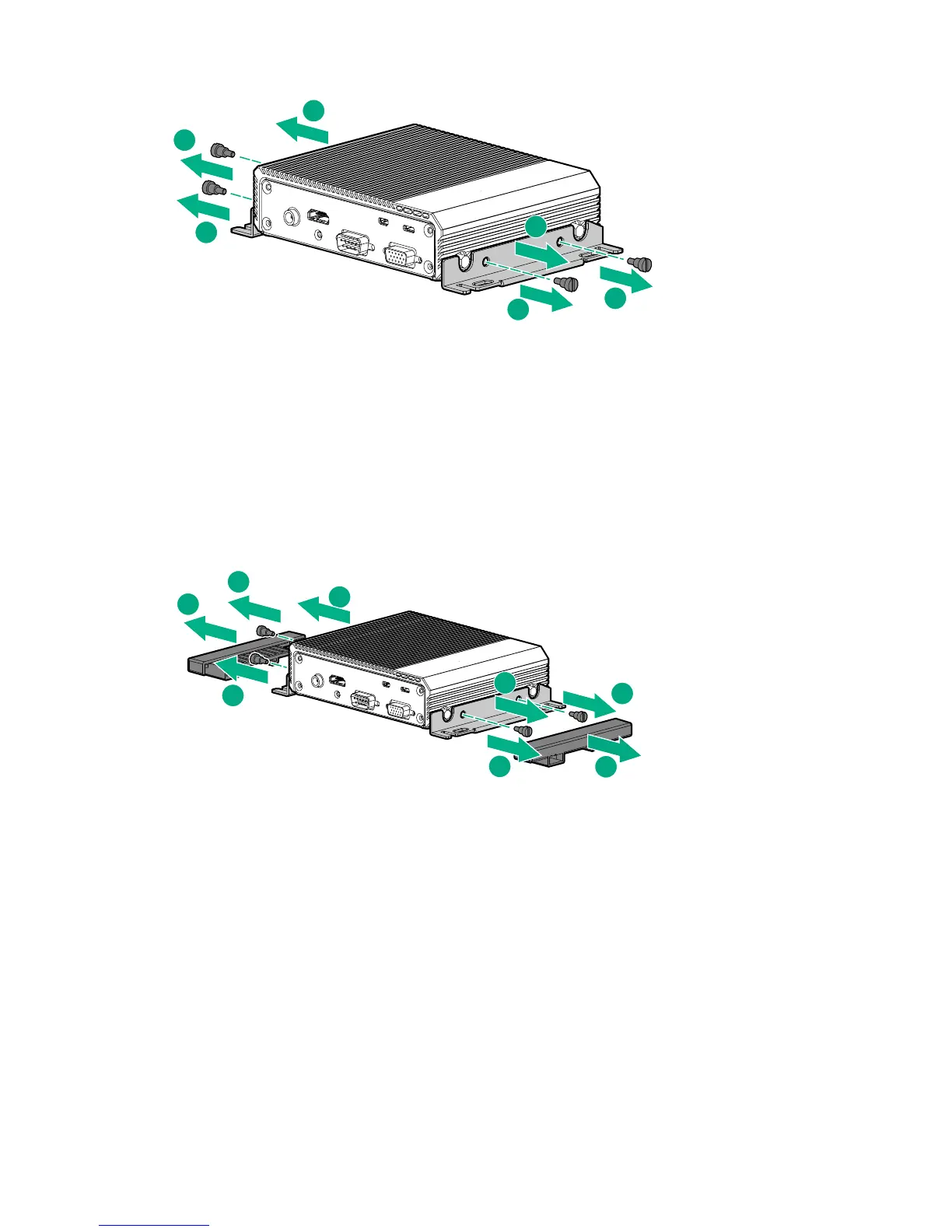

Dismounting a rack-mount gateway
Procedure
1. Slide the rail mounts off the wall-mount brackets.
2. Remove the four screws securing the wall-mount brackets to the gateway, and then remove the
brackets.
3
2
2
1
3
2
2
1
To replace the component, reverse the removal procedure.
Dismounting a VESA-mount gateway
Procedure
1. Remove the four M3 Phillips screws securing the VESA-mounting brackets to the gateway.
2. Remove the top-mounting bracket.
3. Remove the four M3.5 screws securing the bottom bracket.
4. Remove the bottom bracket.
Dismounting a rack-mount gateway 19
