Pin Signal name (10/100/1000 Mbps)

1 TX+, MDI0+

2 TX-, MDI0-

3 RX+, MDI1+

4 MDI2+

5 MDI2-

6 RX-, MDI1-

7 MDI3+

8 MDI3-

NC, if present, means that there is no connection.

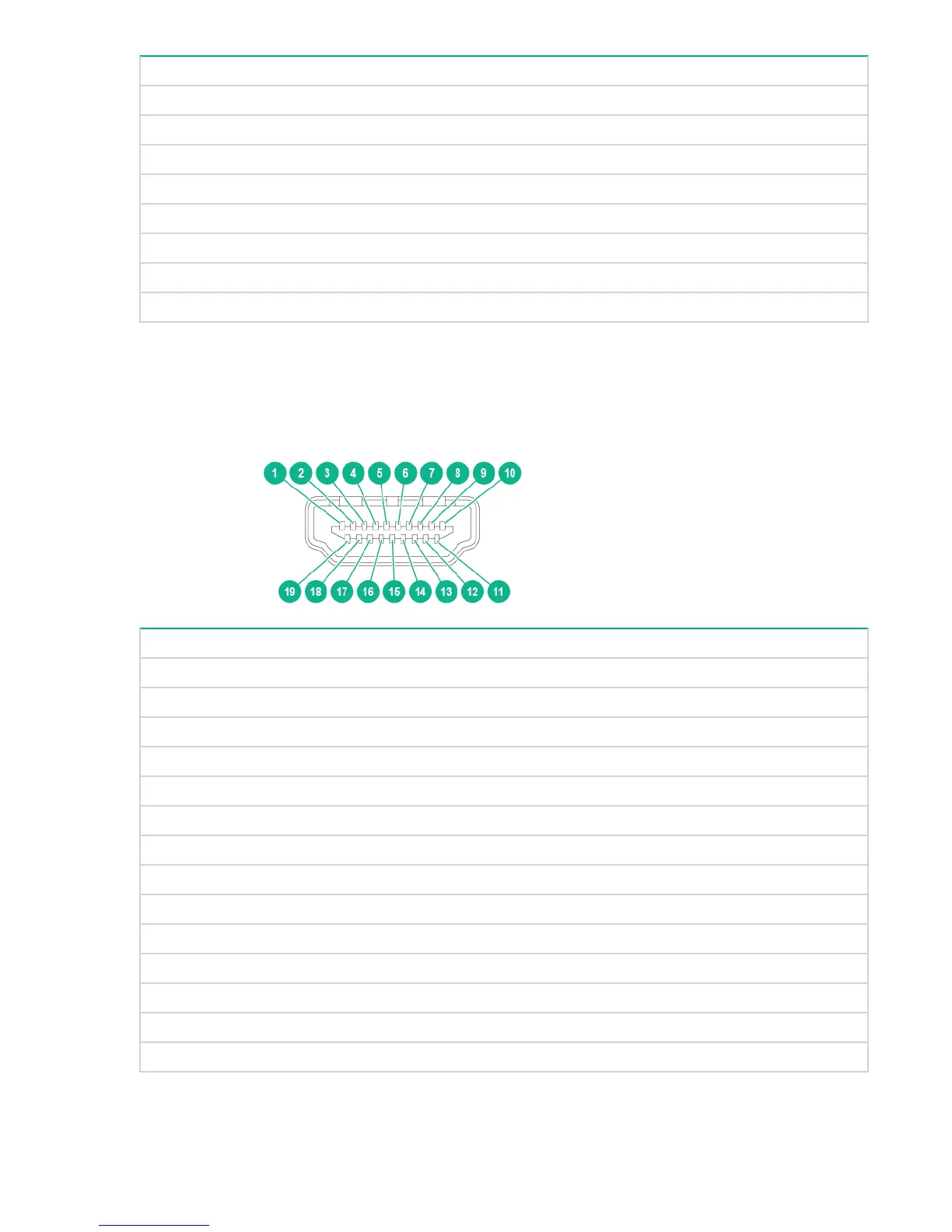

HDMI connector pin assignments

The HDMI link supports resolutions of up to 1920 x 1080 at 60 Hz. However, the HDMI link does not

support hot-plug function.

Pin Assignment

1 TMDS_Data2+/DP_Data0+

2 GND

3 TMDS_Data2-/DP_Data0-

4 TMDS_Data1+/DP_Data1+

5 GND

6 TMDS_Data1-/DP_Data1-

7 TMDS_Data0+/DP_Data2+

8 GND

9 TMDS_Data0-/DP_Data2-

10 TMDS_Clock+/DP_Data3+

11 GND

12 TMDS_Clock-/DP_Data3-

13 NC

14 NC

Table Continued

28 HDMI connector pin assignments
