Item Description Status
1 Power On/Off button LED
• Solid green = System on
• Off = System off
2 Drive LED
• Solid or blinking white = Drive active
• Off = Drive not active
3 Reset button Press to reset the system
1
1
The reset button is indented and you might need a tool, such as a pin, to press it.

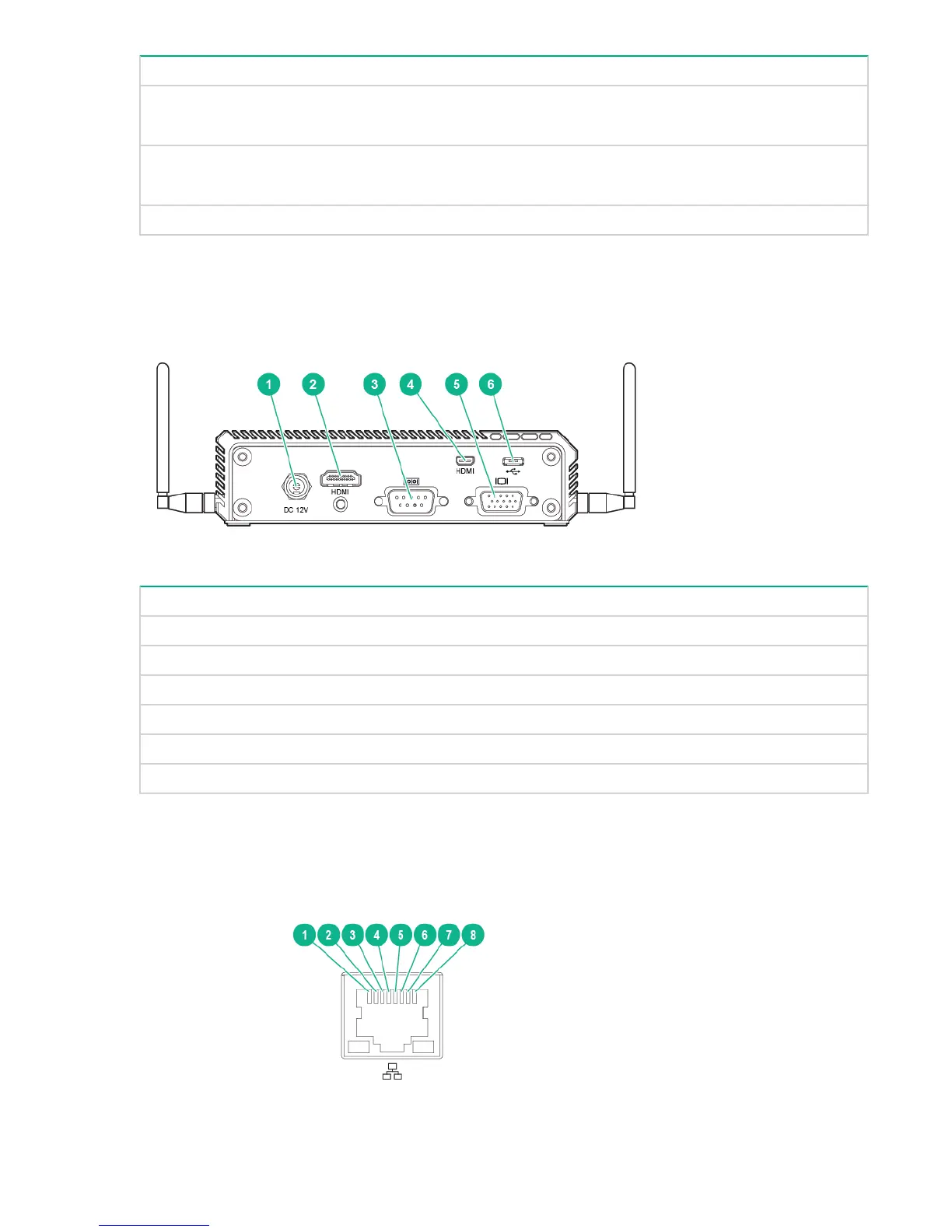

Rear panel components
Item Description
1 Power connector
2 HDMI connector
3 Serial port connector (RS-232 or RS-422/485)
4 Micro HDMI connector
5 VGA connector
6 Micro USB 2.0 connector
Connector pin assignments
RJ-45 LAN connector pin assignments
Rear panel components 27
