HPRT HT100 - Ribbon Loading

HT100/HT130 User Manual
Rev.1.2
13

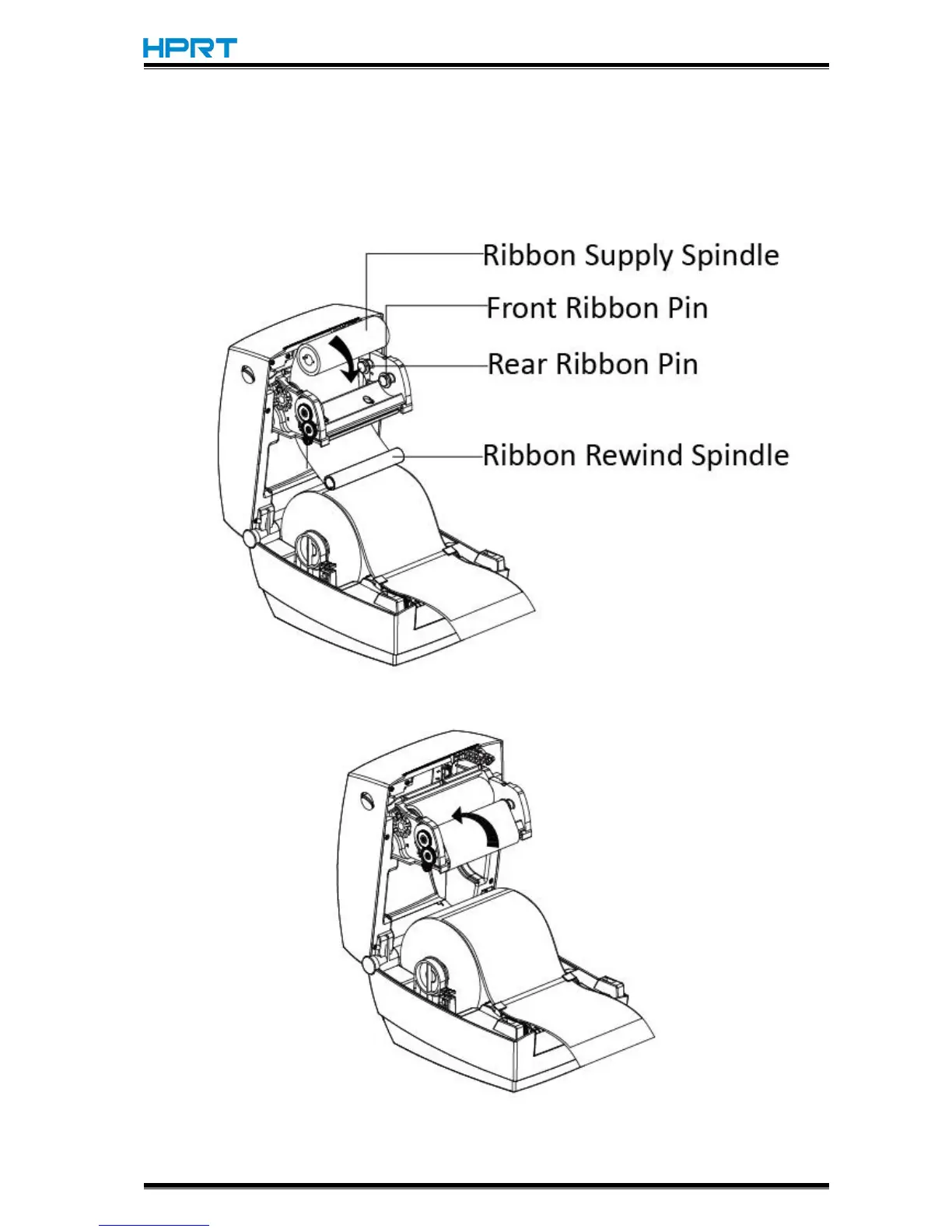

3.1.2 Ribbon Loading
1.After putting rewind spindle through printhead module, insert the right side of supply spindle
into the rear pin, and then insert the left side into the rear wheel. Then do the same procedure
for the ribbon rewind spindle.
2.Rotate the rear ribbon wheel until the ribbon is pulled tightly.
