3.4.2 Labels
When printing labels (Figure 3) or double-row labels (Figure 4), the sensor shall be aimed at the
left photoelectric hole (Figure 5), which is the original position.

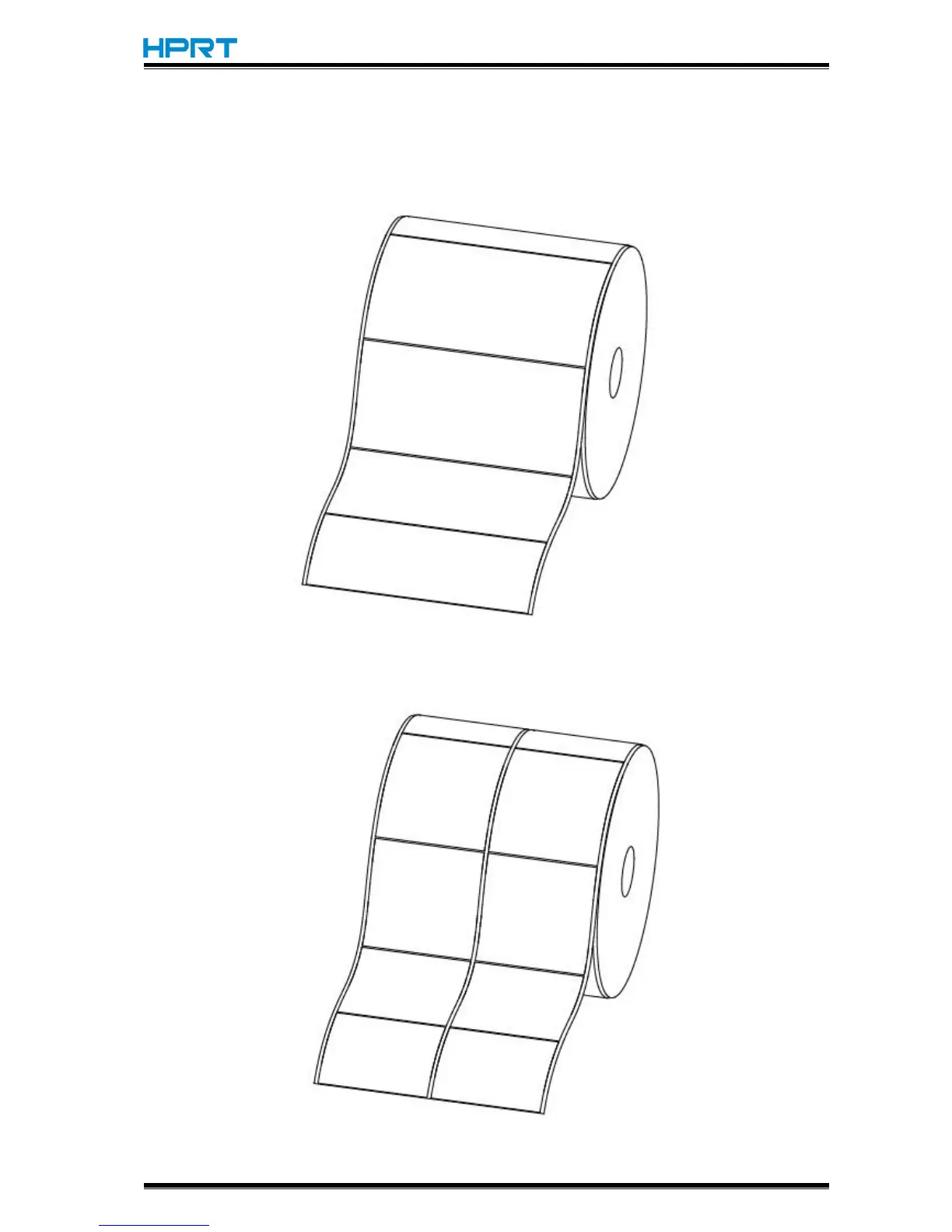

Figure 3 (Labels)
Figure 4 (Double-row Labels)
