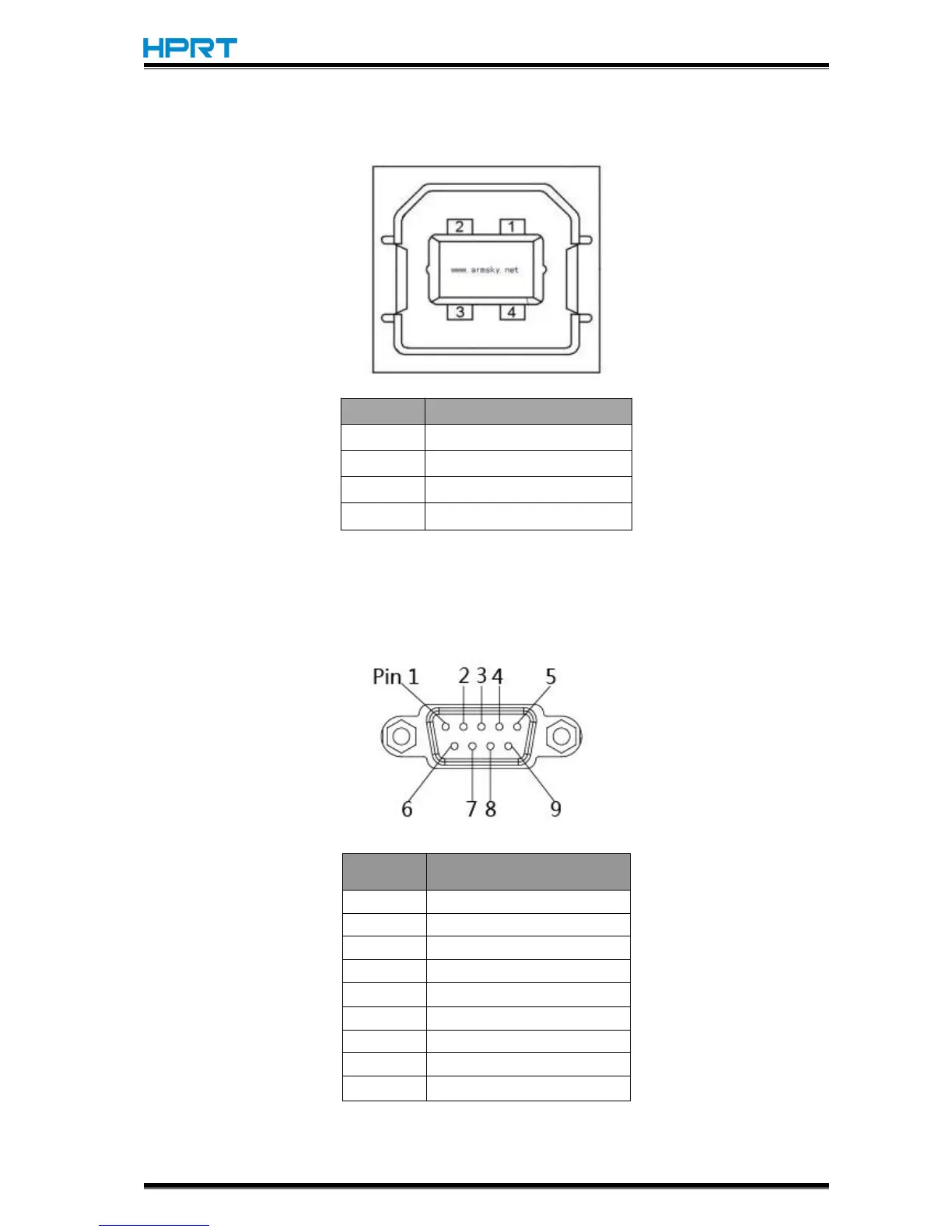

Chapter 4 Interface
4.1 USB Interface
PIN
SIGNAL NAME
1
VBUS
2
D-
3
D+
4
GND
4.2 Other Optional Interfaces
 Serial Port
PIN
SIGNAL NAME
1
+5VDC
2
TXD
3
RXD
4
-
5
GND
6
RTS
7
CTS
8
RTS
9
-
