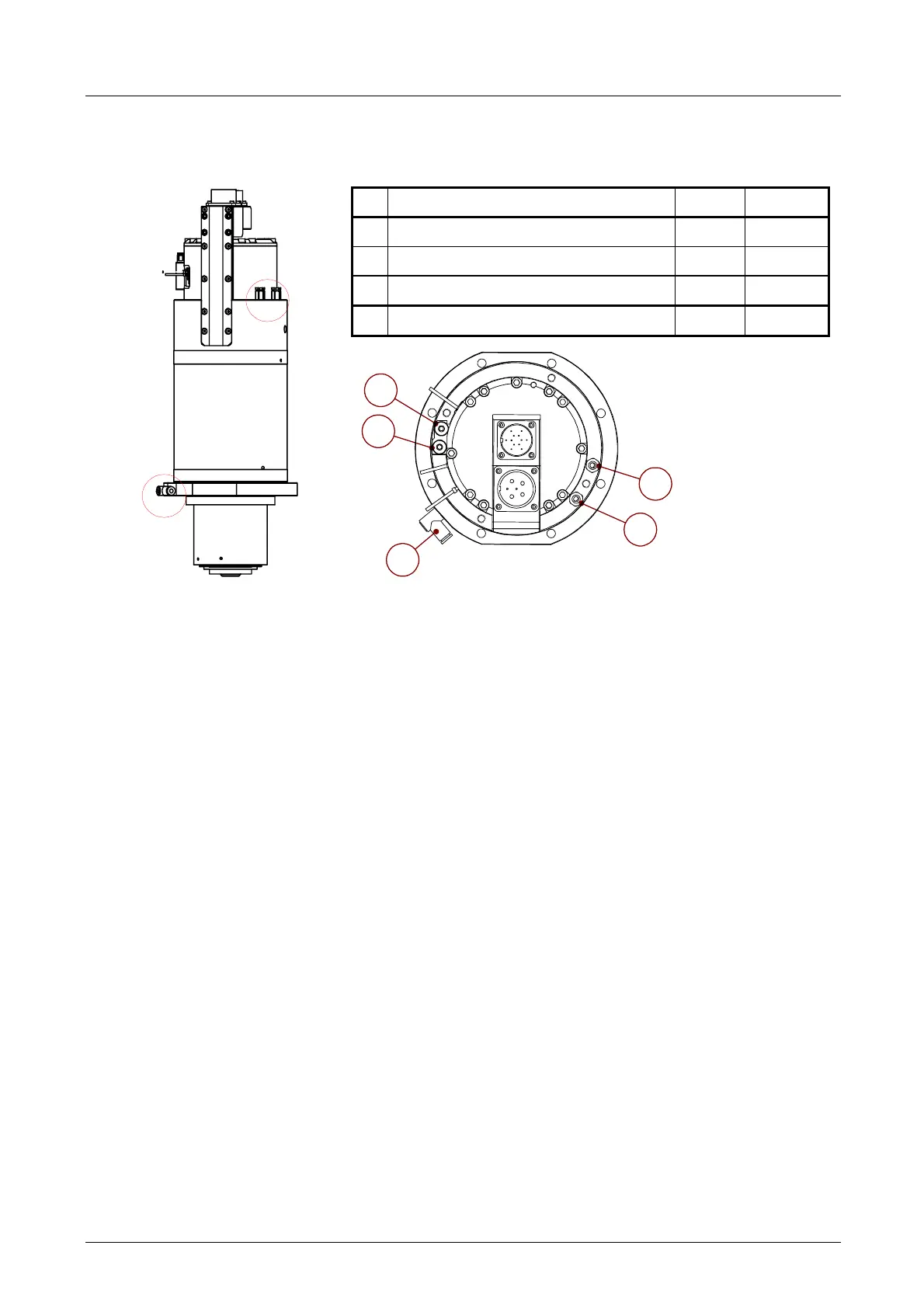

4.4.5 Pneumatic connection points for spindles ES884 - ES888 (single-acting
cylinder)
Ref. Description Pressure Ø Tube
1 Tool-holder release 10 bar Ø 6x4
2 Cone cleaning 4 bar Ø 6x4
3 Pressurisation 4 bar Ø 4x2
4 Cooling liquid inlet / ouput Ø 8 x 6
2
3
1
4
4
