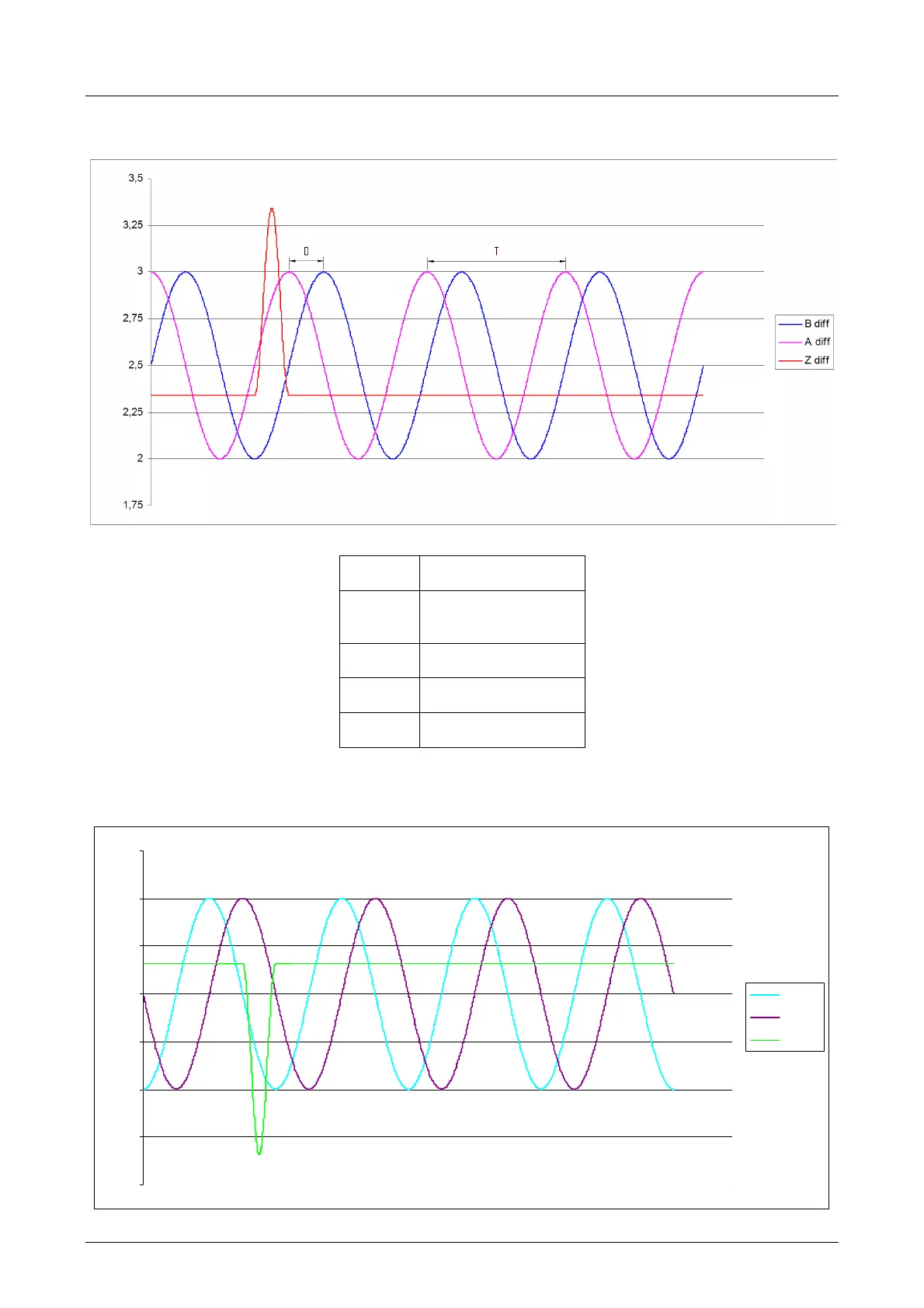

Differential signal temporal performance:
T Period
D Phase Difference
(D=T/4)
A diff (A) - (A-)
B diff (B) - (B-)
Z diff (Z) - (Z-)
Differential negated signal temporal performance:
1,5
1,75
2
2,25
2,5
2,75
3
3,25
A diff-
B dif f-
Z diff-
