8.8.5 Wiring the sensors of HSK models with boosted mounting plate
S1
S2
S4
4
1
2
PIN D
PIN F
PIN A
PIN B
S3
3
PIN C

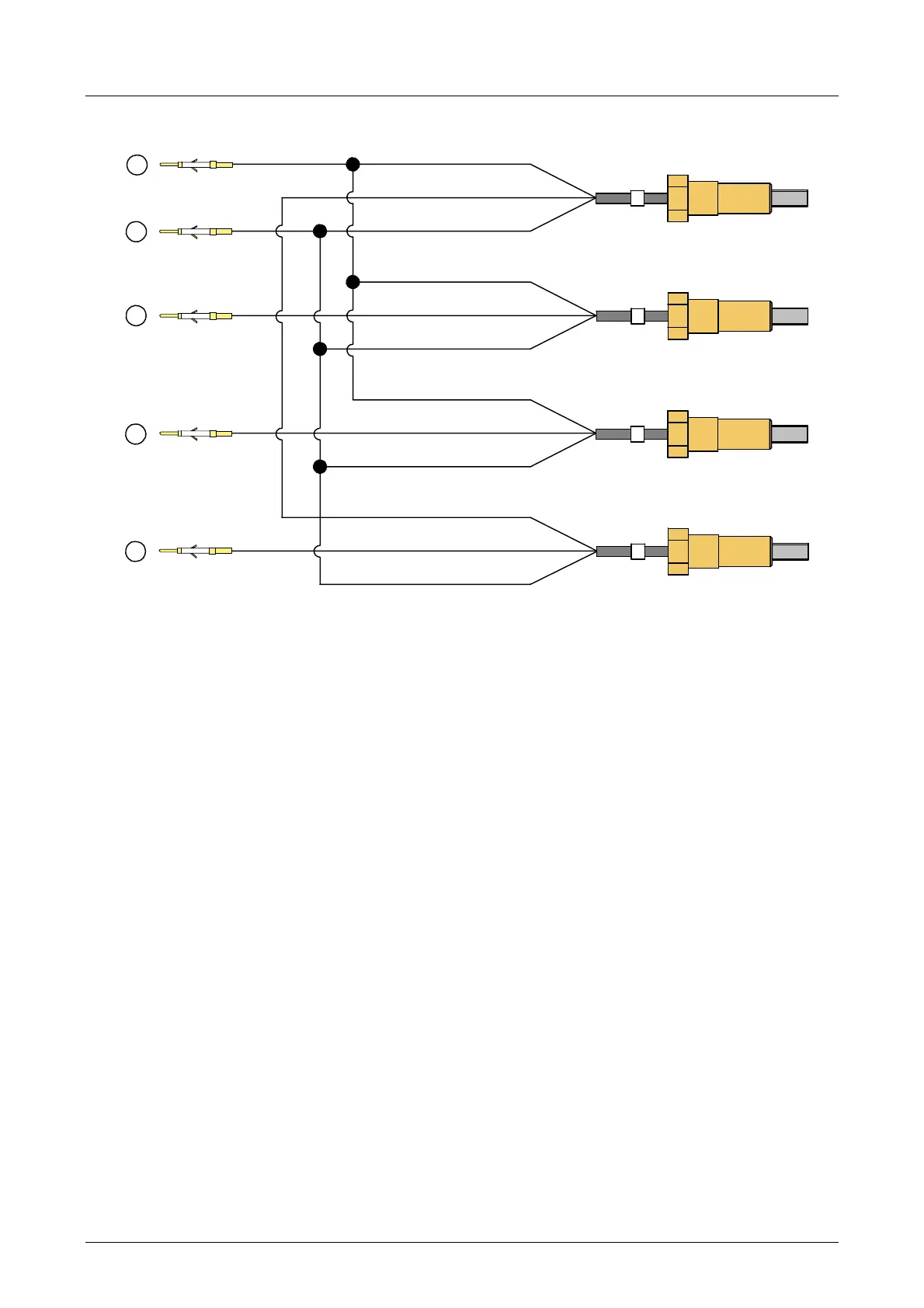

Figure 8.5 connection of the sensors of the HSK versions to the PINs of the signals connector
