HSD J10 - Page 8

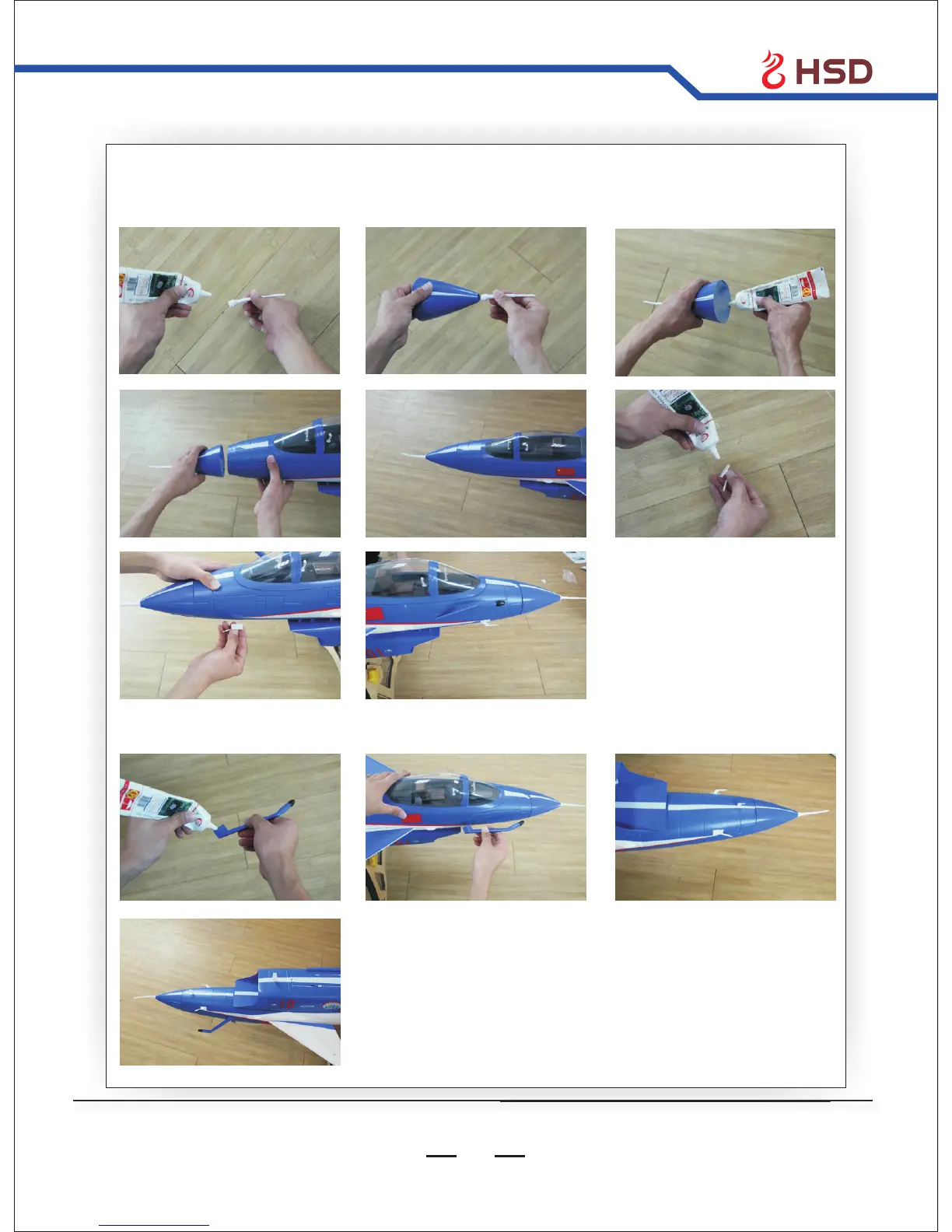

6.Glue the J-10 Pitot Tube on the nose cone as shown below. After, apply adhesive
to the inner edges of the nose cone and proceed to install it on the nose of the
aircraft.
7.Glue the fuel filler pipe onto the right side of the fuselage as shown below. After, turn
over the model and glue the antennas in their respective locations on the fuselage.
05
