2.10 Connect To Repeater

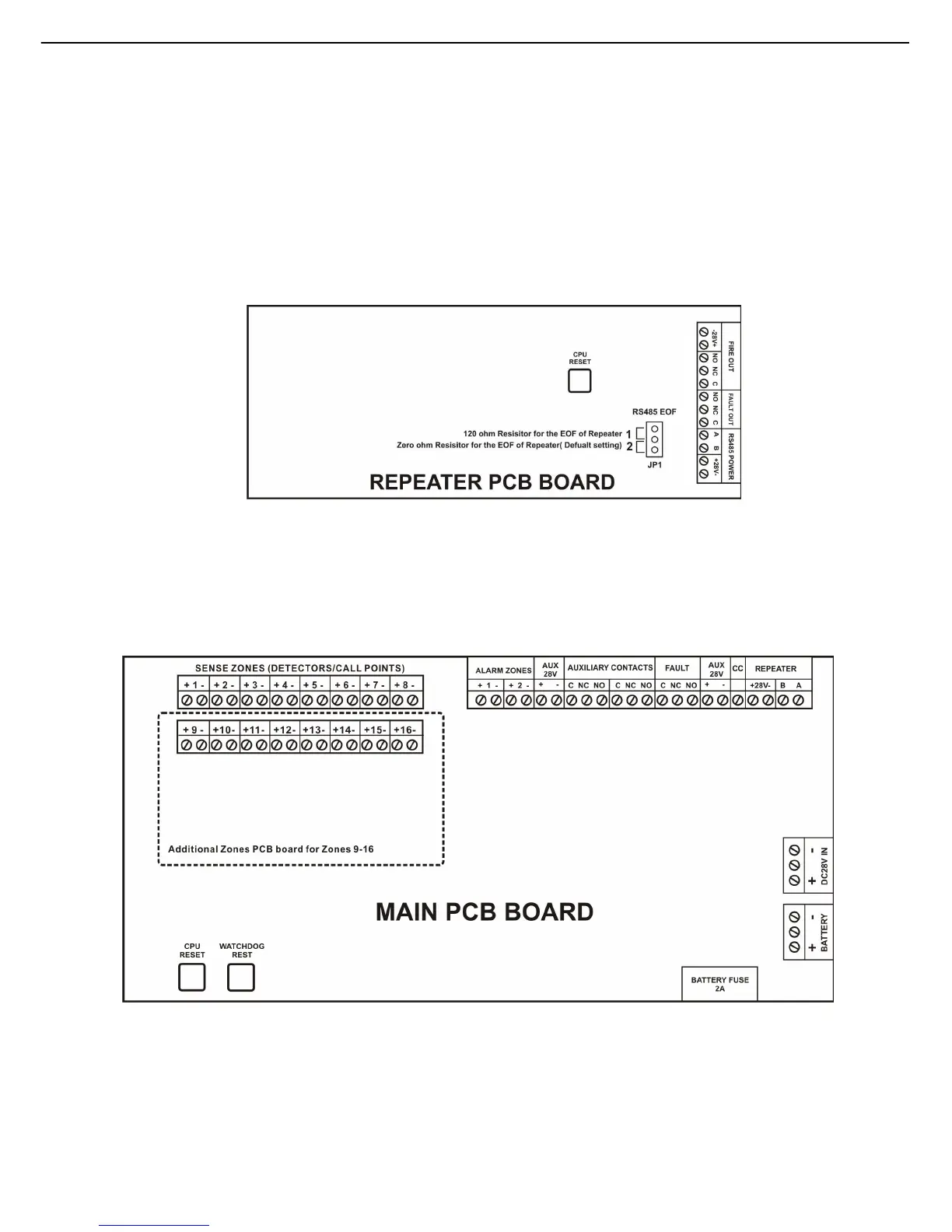

There is one jump JP1 on the repeater PCB board. For each one fire alarm control
panel can connect 64 repeaters in the same RS485 communication wires.
The default setting for RS485 JP1 jump is set to position 2, which EOF of RS485 is
zero ohm. For the end repeater of RS485, the jump JP1 should set to position 1, which
the EOF of RS485 is 120 ohm.
2.11 Main PCB Board
