Operation
Connecting the System
The wrench head and power pack are connected by a 10,000 psi operating pressure (40,000 psi burst)
twinline hose assembly. Each end of the hose will have one male and one female connector to ensure
proper interconnection between pump and wrench heads.
IMPORTANT: To avoid tool malfunction, do not reverse connectors.

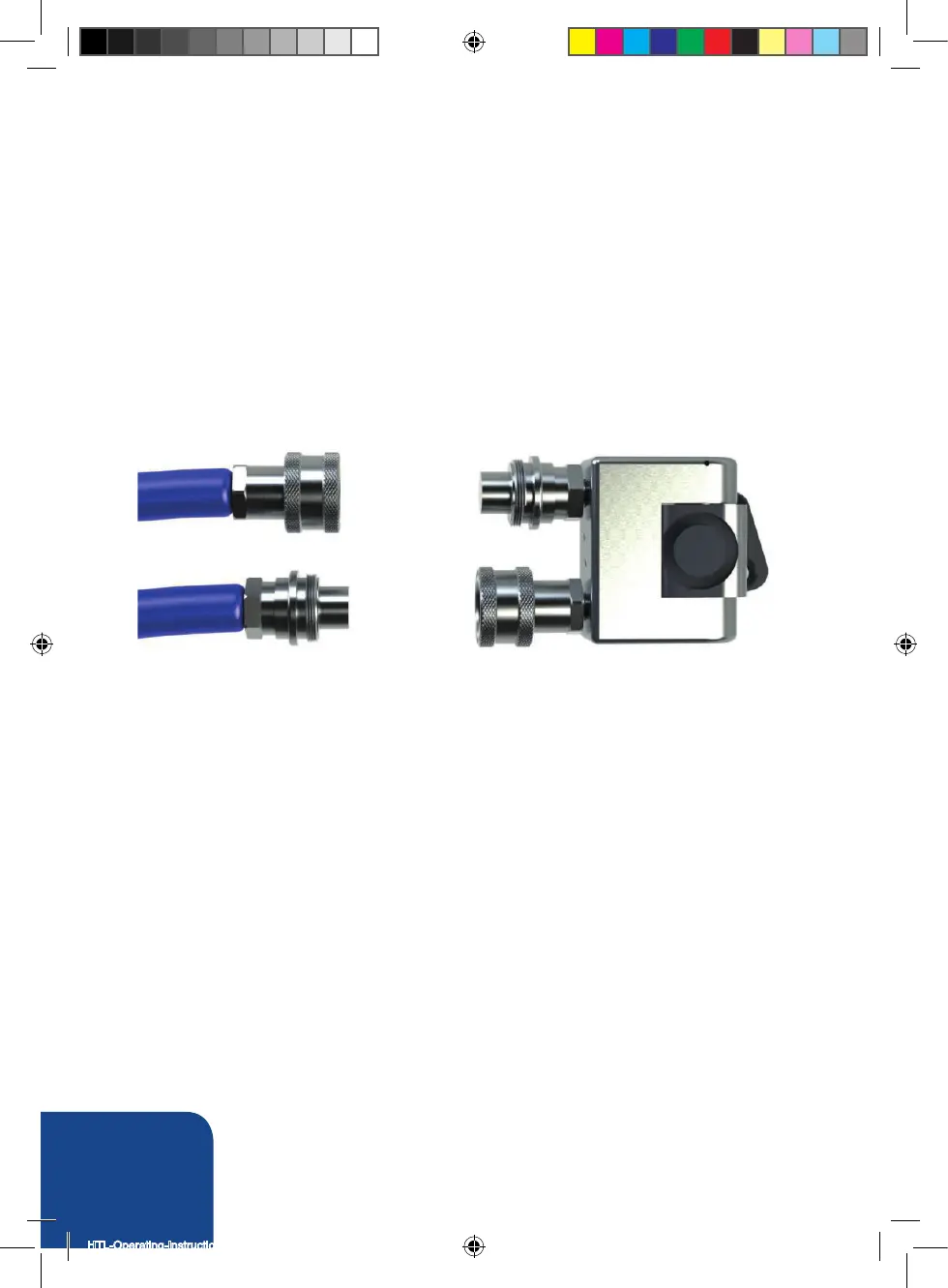

Connect the twinline hose to the uniswivel as shown below:
Ensure the connectors are fully engaged and screwed closely and completely together.
9
R A
