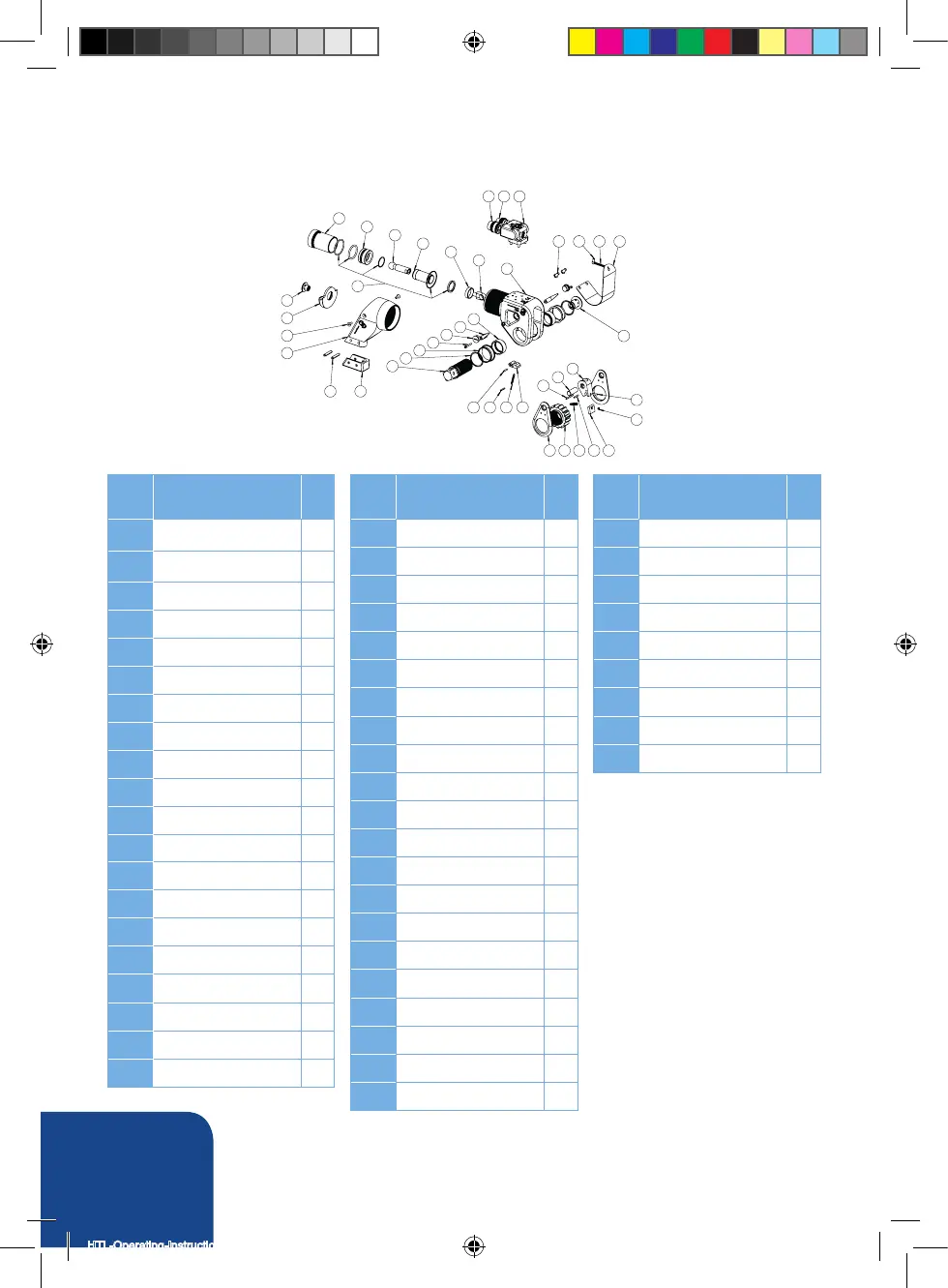

HTL W-4 - Spare Parts List

OUTSIDE UK: +44 (0) 1670 700 018
21
ITEM
No. PART DESCRIPTION QTY
1
BODY 1
2
REACTION ARM 1
3
DRIVE PLATE 2
4
RATCHET 1
5
PAWL 1
6
PAWL TOOTH 1
7
PISTON SLEEVE 1
8
SQUARE DRIVE 1
9
DRIVE BUSHING 2
10
DRIVE SLEEVE SPLINE 2
11
DISENGAGEMENT PAWL 1
16
DISENGAGEMENT LEVER
2
17
ROD END 1
18
ROD END PIN 1
19
PISTON 1
20
PISTON ROD 1
21
ACCESS PLUG 2
22
PISTON HEAD 1
23
PISTON BUSH 1
24
REACTION ARM PLATE 1
ITEM
No. PART DESCRIPTION QTY
25
REACTION ARM BOOT 1
26
SEAL KIT 1
27
SHROUD 1
28
DISENGAGEMENT LEVER
SCREW
2
29
SHROUD SPRING SCREW 1
30
HOUSING GRUB SCREW 1
31
REACTION ARM PLATE
SCREW
2
32
SHROUD SCREW 2
33
REACTION BOOT ROLL
PIN
2
34
PAWL SPRING ROLL PIN 1
35
DRIVE PLATE SPRING
ROLL PIN
1
36
PAWL TOOTH RETAINER
ROLL PIN
1
37
REACTION PAWL SPRING
PIN
1
38
DRIVE BUSHING
SPIROLOX RING
2
39
PAWL SPRING 2
40
REACTION PAWL SPRING 1
41
PAWL TOOTH SPRING 1
42
DRIVE RETAINER SPRING 1
43
DRIVE RETAINER CIRCLIP 1
44
REACTION ARM RETAINER
CIRCLIP
1
45
REACTION ARM RETAINER
SPRING
1
20
19
23
57
56 47
32 29 46
27
17
58
1
3
41
39
634
18
4
40
3
11
50
10
9
8
16
28
25
2
24
59
22
7
33
31
37
38
21
35
36
26
Spare Parts List
ITEM
No. PART DESCRIPTION QTY
46
SHROUD SPRING 1
47
SWIVEL 1
48
DRIVE RETAINER BALL
BEARING
3
49
REACTION ARM RETAINER
BALL BEARING
3
50
DISENGAGEMENT PAWL
HOUSING PIN
1
56
MALE COUPLER 2
57
FEMALE COUPLER 2
58
DRIVE RETAINER 1
59
REACTION ARM RETAINER 1
