LP-387 Rev. 7.3.15
43
Part 7 - Gas Connections
Failure to follow all precautions could result in re, explosion,
severe injury, or death.
It is very important that you are connected to the type of
gas noted on the rating plate. “LP” for liqueed petroleum,
propane gas, or “NG” for natural or city gas. Do not do a gas
conversion without an approved gas conversion kit. Prior to
turning the gas on, all gas connections must be approved by
the local gas supplier or utility, in addition to the governing
authority.
A gas conversion kit comes with the boiler. Follow the
included instructions VERY carefully if converting the boiler.
Failure to follow gas conversion instructions could result in
property damage, serious injury, or death.
The gas supply shall have a maximum inlet pressure of less
than 14” w.c. (3.5 kPa), and a minimum of 3.5” w.c. (.87 kPa).
The entire piping system, gas meter and regulator must be
sized properly to prevent pressure drop greater than 0.5” (.12
kPa) as stated in the National Fuel Gas Code. This information
is listed on the rating label.
UL recognized fuel gas detectors are recommended in
all enclosed propane and natural gas applications where
there is a potential for an explosive mixture of fuel gas to
accumulate. The installation of these detectors should
be made in accordance with the detector manufacturer’s
recommendations, and/or local laws. Failure to install fuel gas
detectors in these applications could result in re, explosion,
property damage, severe personal injury, or death.
A. Gas Piping
1. Run the gas supply line in accordance with all applicable
codes.
2. Locate and install manual shuto valves in accordance with
state and local requirements.
3. In Canada, the Manual Shuto must be identied by the
installing contractor.
4. It is important to support gas piping as the unit is not
designed to structurally support a large amount of weight.
5. Purge all gas lines thoroughly to avoid start up issues with
air in the lines.
Support gas supply piping with hangers, not by the boiler or its
accessories. The boiler gas valve and blower will not support the
weight of the piping. Make sure the gas piping is protected from
physical damage and freezing, where required. Failure to follow
these instructions could result in gas leakage, and result in re,
explosion, property damage, severe personal injury, or death.
Do not use Teon tape on gas line pipe thread. Use a pipe
compound rated for use with natural and propane gases. Apply
sparingly on male pipe ends, leaving the two end threads bare
and ow unobstructed. Failure to follow these instructions could
result in gas leakage or blockage, and result in re, explosion,
property damage, severe personal injury, or death.

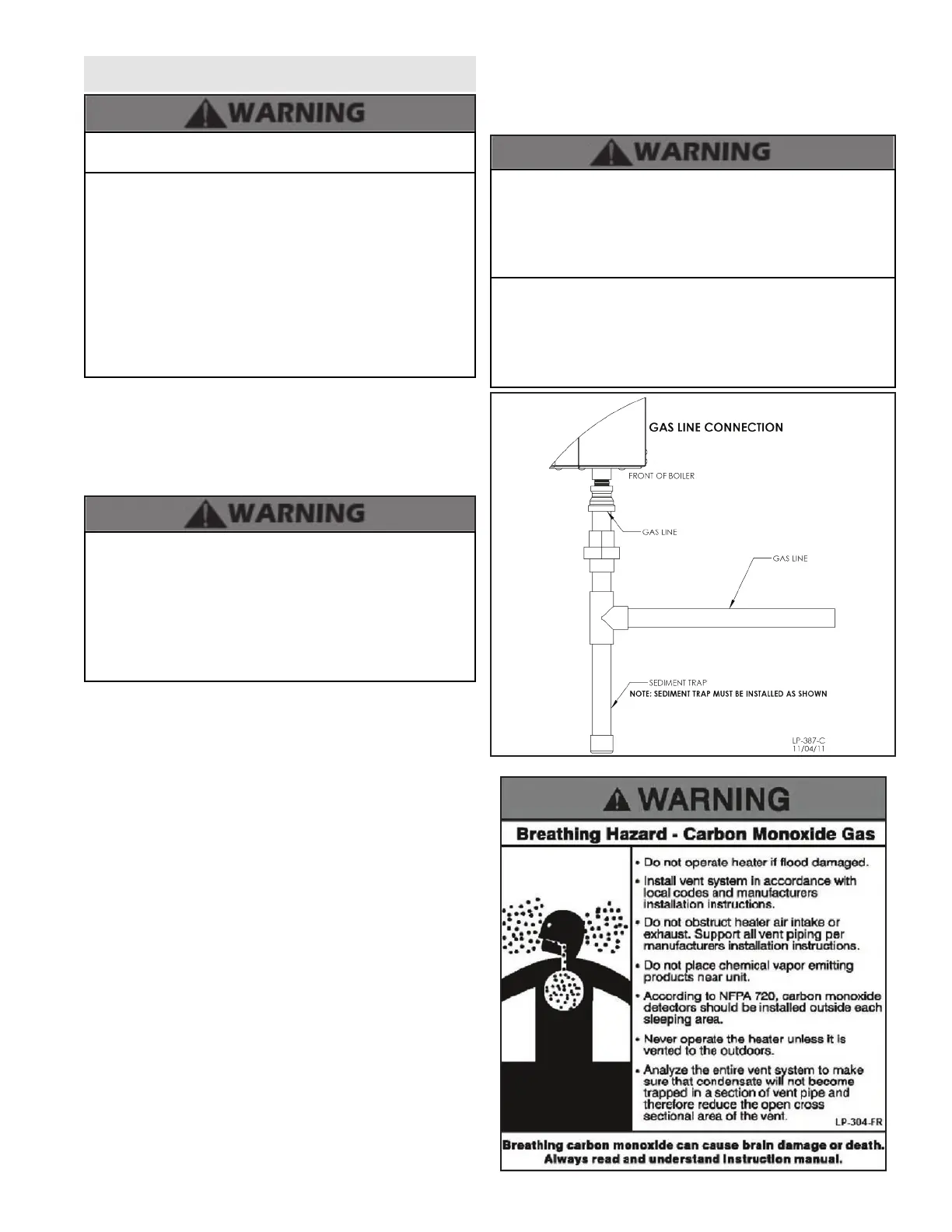

Figure 34 - Gas Connection
The gas connection on the boiler is 3/4”. It is mandatory that
this tting is used for connection to a eld fabricated drip leg
as shown in the illustration per the National Fuel Gas Code.
You must ensure that the entire gas line to the connection at
the boiler is no smaller than the unit supplied connection.
Once all inspections have been performed, the piping must
be leak tested. If the leak test requirement is a higher test
pres¬sure than the maximum inlet pressure, you must isolate
the boiler from the gas line. In order to do this, shut the gas
o using factory and eld-installed gas cocks. This will prevent
high pressure. Failure to do so may damage the gas valve. In
the event the gas valve is exposed to a pressure greater than
½ PSI, 14” w.c. (3.5 kPa), the gas valve must be replaced.
Never use an open ame (match, lighter, etc.) to check gas
connections.
6. Sealing compound must be approved for gas connections.
Care must be taken when applying compound to prevent
blockage or obstruction of gas ow which may aect the
operation of the unit.
