42
LP- 293 REV. 9.2.14

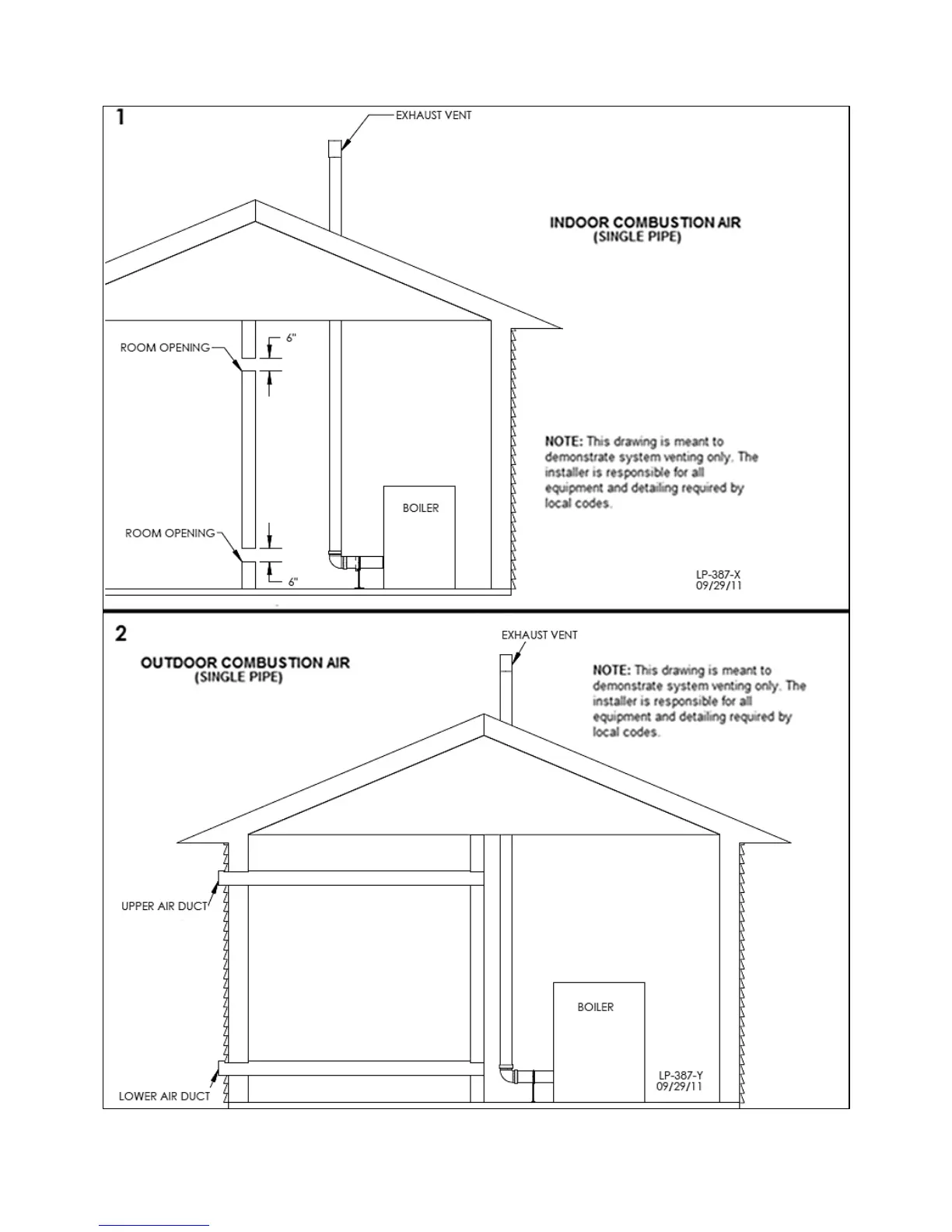

Figure 21 – 1, 21 - 2 NOTE: These drawings are meant to demonstrate system venting only. The installer is responsible for all
equipment and detailing required by local codes.
