HTP UFTC-140 - Page 68

LP-648 Rev. 002 Rel. 002 Date 9.16.20
68
15-1
17
34
31
19
23
24
25
26
27
30
15-2
15-5
15-3
15-7
15-6
15-8
16-2
16-1
15
16
15-4
22
21
15
16
33
35
20
B-6
B-5
B-5
B-5
B-27
B-5
B-10
B-6
B-3
B-6
B-5
B-8
B-13
18-1
B-10
B-6
18
29
28
32
B-23

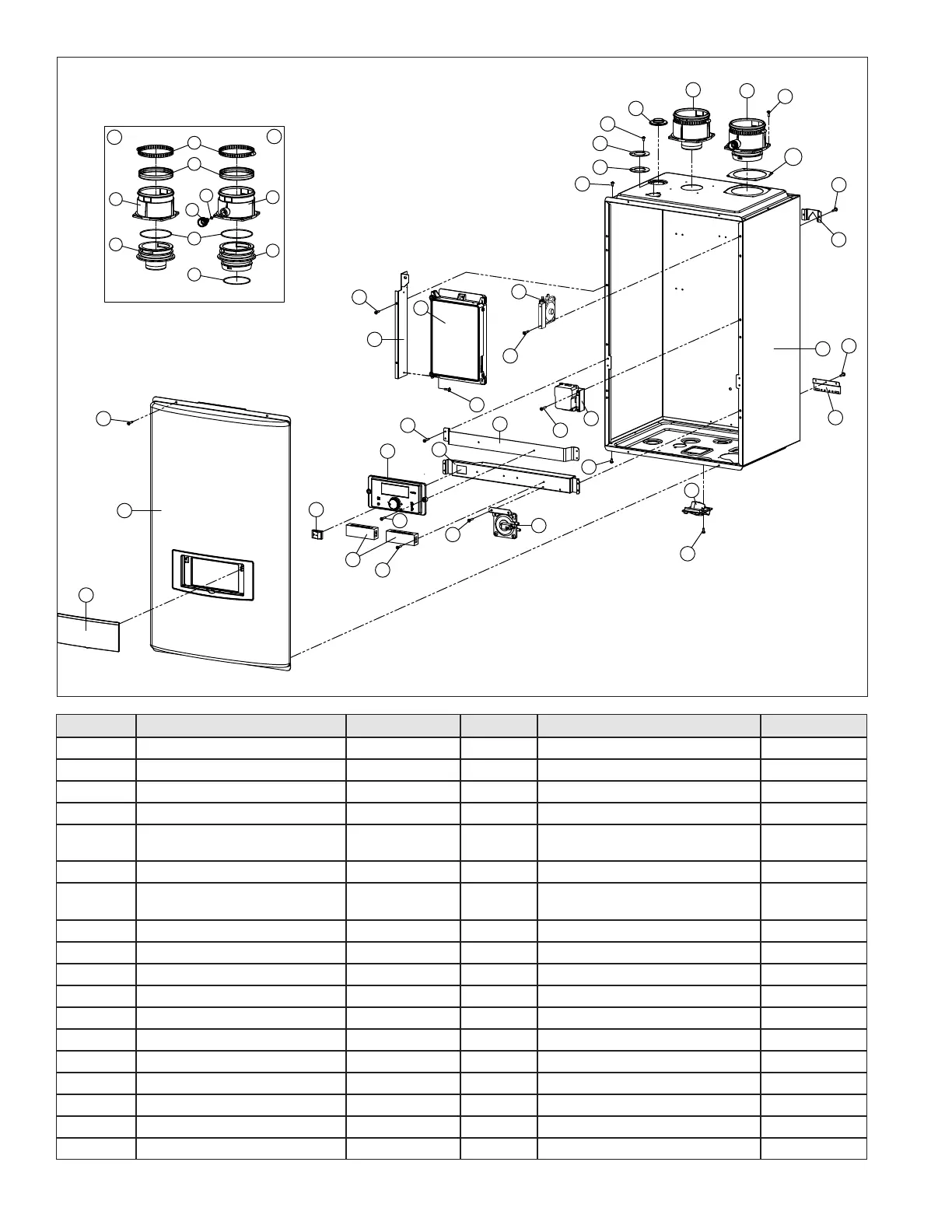

Figure 61 - Cabinet Replacement Parts - 140 Floor and Wall Mount Models
NUMBER DESCRIPTION PART NUMBER NUMBER DESCRIPTION PART NUMBER
15 Exhaust Duct Assembly 7855P-002 22 Ignition Transformer 7855P-007
15-1 Exhaust/Intake Duct Clamps (Φ100) 7855P-332 23 Control Board Bracket 7855P-340
15-2 Exhaust/Intake Gaskets 7850P-210 24 Power Switch Bracket 7855P-220
15-3 Exhaust Duct 7855P-333 25 Membrane Display Panel 7865P-032
15-4
Combustion Analyzer Port Plug
O-Ring
7855P-334 26 Manual Power Switch 7855P-014
15-5 Combustion Analyzer Port Plug 7855P-335 27 Terminal Block 6P 7855P-272
15-6
Intake and Exhaust Adapter
O-Ring (Φ85)
7855P-256 28 Condensate Block APS 7855P-017
15-7 Exhaust Duct Inner Adapter 7855P-004 29 Front Cover 7855P-218
15-8 Exhaust Adapter O-Ring (Φ75) 7855P-254 30 Display Panel Cover 7850P-023
16 Air Intake Cap Assembly 7855P-003 31 CH Pressure Gauge 7855P-135
16-1 Air Intake Cap 7855P-337 32 Exhaust Adapter Sealing Gasket 7850P-041
16-2 Air Intake Inner Adapter 7855P-338 33 Top Wall Mount Bracket 7850P-068
17 Air Vent Grommet 7855P-339 34 Cabinet 7855P-226
18 PRV Ring 7855P-269 35 Bottom Wall Mount Bracket 7850P-092
18-1 PRV Rubber Pad 7855P-339 Wire Gland (Not Shown) 7855P-348
19 Control Board 7855P-217 Wire Harness (Not Shown) 7865P-026
20 Control Panel Bracket 7855P-219
21 Air Pressure Switch 7855P-262
Table 38 - Cabinet Replacement Parts - 140 Floor and Wall Mount Models
