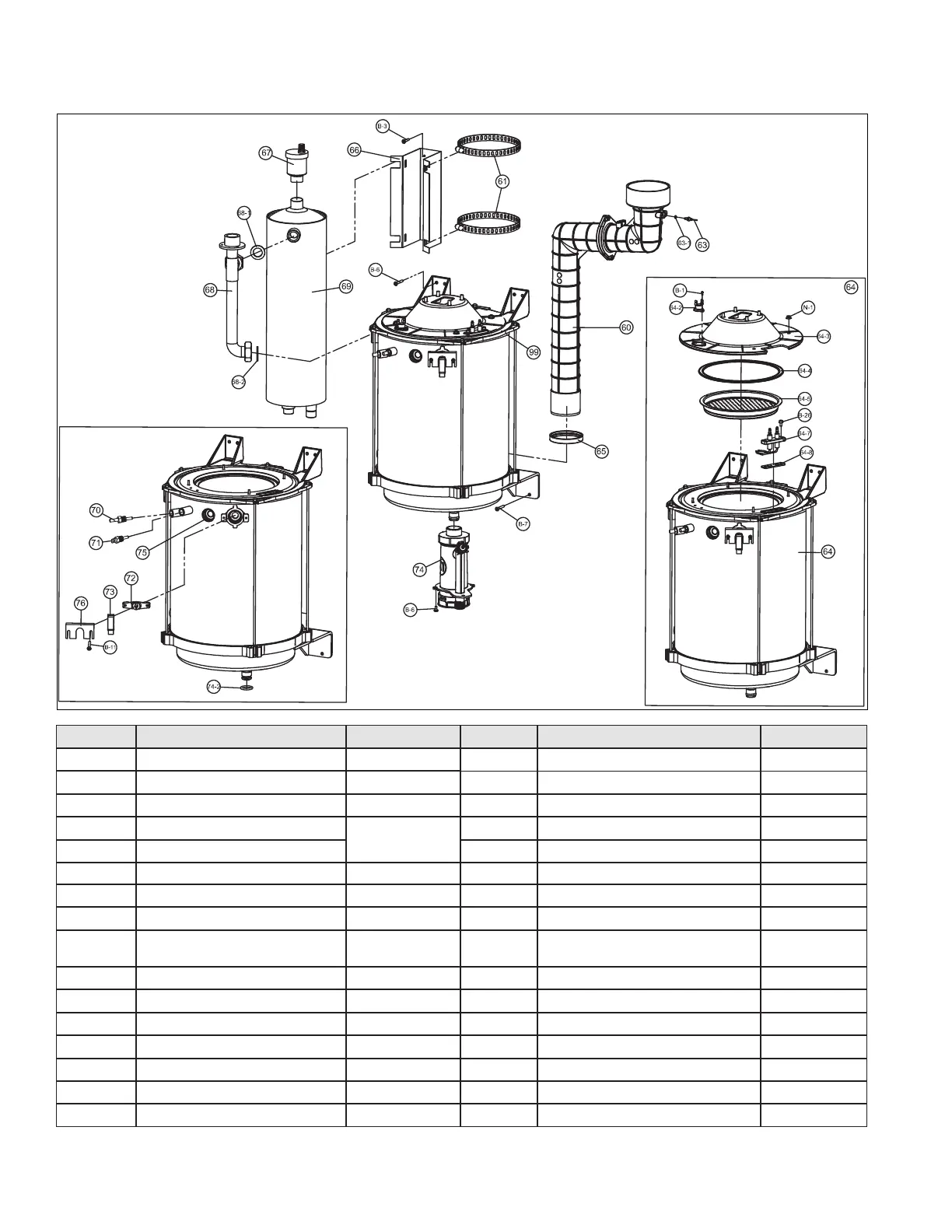

Figure 63 - Heat Exchanger Replacement Parts - 140 Floor and Wall Mount Models
NUMBER DESCRIPTION PART NUMBER NUMBER DESCRIPTION PART NUMBER
60 Exhaust Pipe Assembly 7855P-237 65 Exhaust Pipe Gasket 7855P-351
61 Storage Tank Clamp 7855P-297 66 Storage Tank Bracket 7855P-298
62 Exhaust Temperature Sensor Clip 7855P-349 67 Air Vent 7855P-063
62-1 Exhaust Temperature Sensor O-Ring
7855P-092
68 CH Supply Upper Pipe 7855P-471
63 Exhaust Temperature Sensor 68-1 3/4” CH Supply Pipe Gasket 7855P-073
64 Heat Exchanger Assembly 7855P-236 68-2 1” CH Supply Pipe Gasket 7855P-074
64-1 Burner Body Assembly N/A 69 Internal DHW Storage Tank 7855P-240
64-2 Burner Overheat Switch 7855P-066 70 CH Supply Temperature Sensor 7855P-030
64-3 Burner Body 7855P-067 71
Water Level Detection Sensor
(Low Water Cut-O)
7855P-029
64-4 Burner Gasket 7855P-634 72 Flame Sensor Bracket 7855P-356
64-5 Double Perf Ceramic Burner 7855P-474 73 Flame Sensor 7855P-031
64-6 Burner Plate O-Ring 7855P-249 74 Condensate Trap Assembly (New Model) 7855P-605
64-7 Ignitor 7855P-068 74-1 Condensate Trap Assembly (Old Model) 7855P-053
64-8 Ignitor Gasket 7855P-252 74-2 Condensate Trap O-Ring (P22A) 7855P-276
64-9 Heat Exchanger Top N/A 75 Sight Glass 7855P-401
64-10 Burner Refractory N/A
Table 40 - Heat Exchanger Replacement Parts - 140 Floor and Wall Mount Models
