HTP UFTC-140 - Page 72

LP-648 Rev. 002 Rel. 002 Date 9.16.20
72
15
16
B-23
23
22
26
29
28
27
21
25
30
31
B-6
B-13
B-6
B-5
B-6
B-8
B-6
B-5
B-6
36
B-6
35
33
32
B-6
B-10
34
18
19-1
17
B-10
B-6
B-6
B-6
19
20
B-5
24
24-1
B-6
15-1
15-2
15-3
5-6
16-1
15
16
15-5
15-4

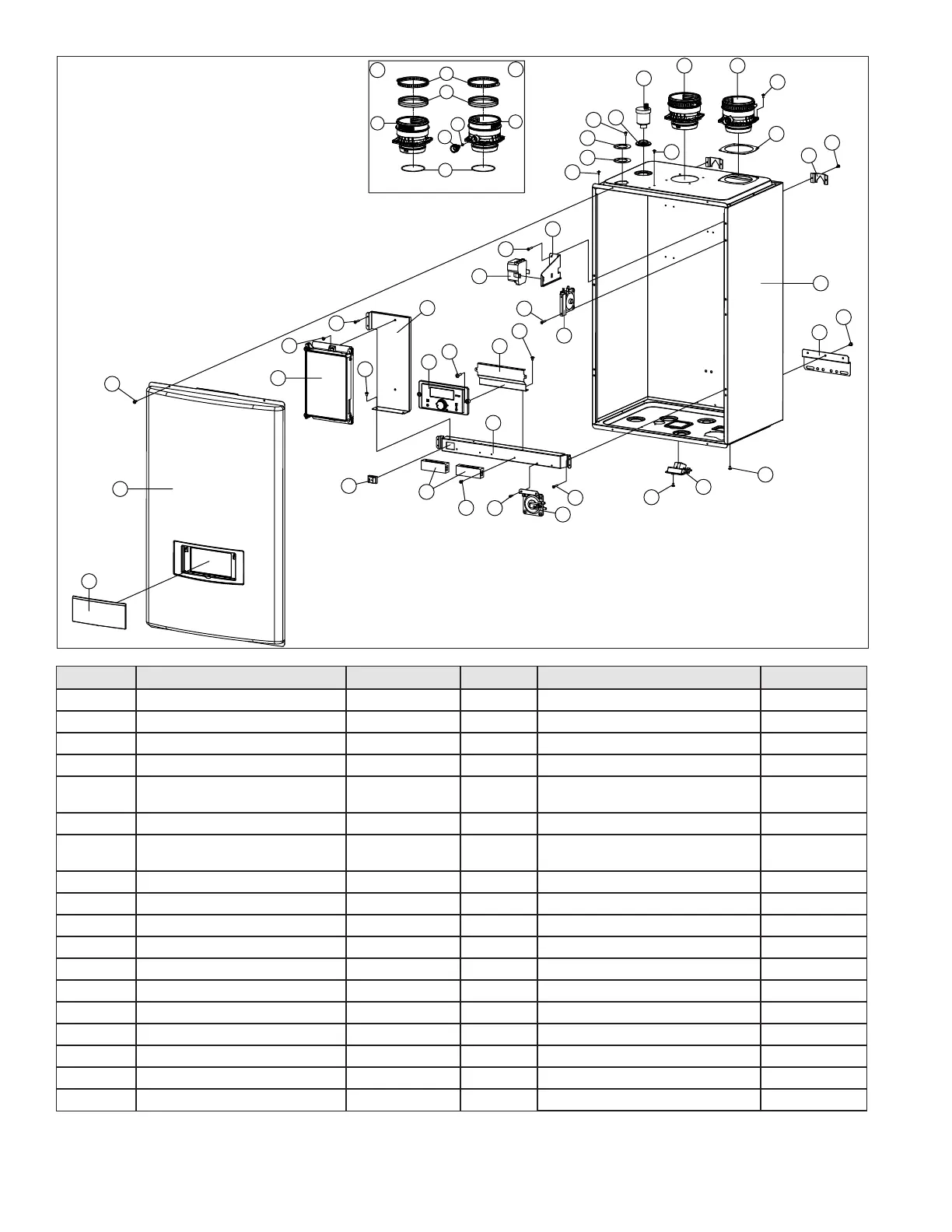

Figure 65 - Cabinet Replacement Parts - 199 Floor and Wall Mount Models
NUMBER DESCRIPTION PART NUMBER NUMBER DESCRIPTION PART NUMBER
15 Exhaust Duct Assembly 7855P-002 23 Display Panel Bracket 7855P-413
15-1 Exhaust/Intake Duct Clamps (Φ100) 7855P-332 24 Ignition Transformer 7850P-271
15-2 Exhaust/Intake Gaskets 7850P-210 24-1 Ignition Transformer Bracket 7855P-441
15-3 Exhaust Duct 7855P-333 25 Control Board 7855P-268
15-4
Combustion Analyzer Port Plug
O-Ring
7855P-334 26 Terminal Blocks Bracket 7855P-271
15-5 Combustion Analyzer Port Plug 7855P-335 27 Manual Power Switch 7855P-014
15-6
Intake and Exhaust Adapter
O-Ring (Φ85)
7855P-256 28 Terminal Block 6P - Combi 7855P-272
15-7 Exhaust Duct Inner Adapter 7855P-004 29 Condensate Block APS 7855P-017
15-8 Exhaust Adapter O-Ring (Φ75) 7855P-254 30 Front Cover 7855P-273
16 Air Intake Assembly 7855P-411 31 Display Panel Cover 7850P-023
16-1 Air Intake Cap 7855P-337 32 Exhaust Adapter Sealing Gasket 7850P-041
17 Air Vent 7855P-063 33 Top Wall Mount Bracket 7850P-068
18 Air Vent Grommet 7855P-339 34 Cabinet 7865P-028
19 PRV Ring 7855P-269 35 Bottom Wall Mount Bracket 7850P-092
19-1 PRV Rubber Pad 7855P-339 36 CH Pressure Gauge 7855P-135
20 Condensate Air Pressure Switch 7855P-262 Wire Harness (Not Shown) 7865P-027
21 Control Board Bracket 7855P-412 Wire Gland (Not Shown) 7855P-348
22 Membrane Display Panel 7865P-032
Table 42 - Cabinet Replacement Parts - 199 Floor and Wall Mount Models
