HTW IX21D4 User Manual

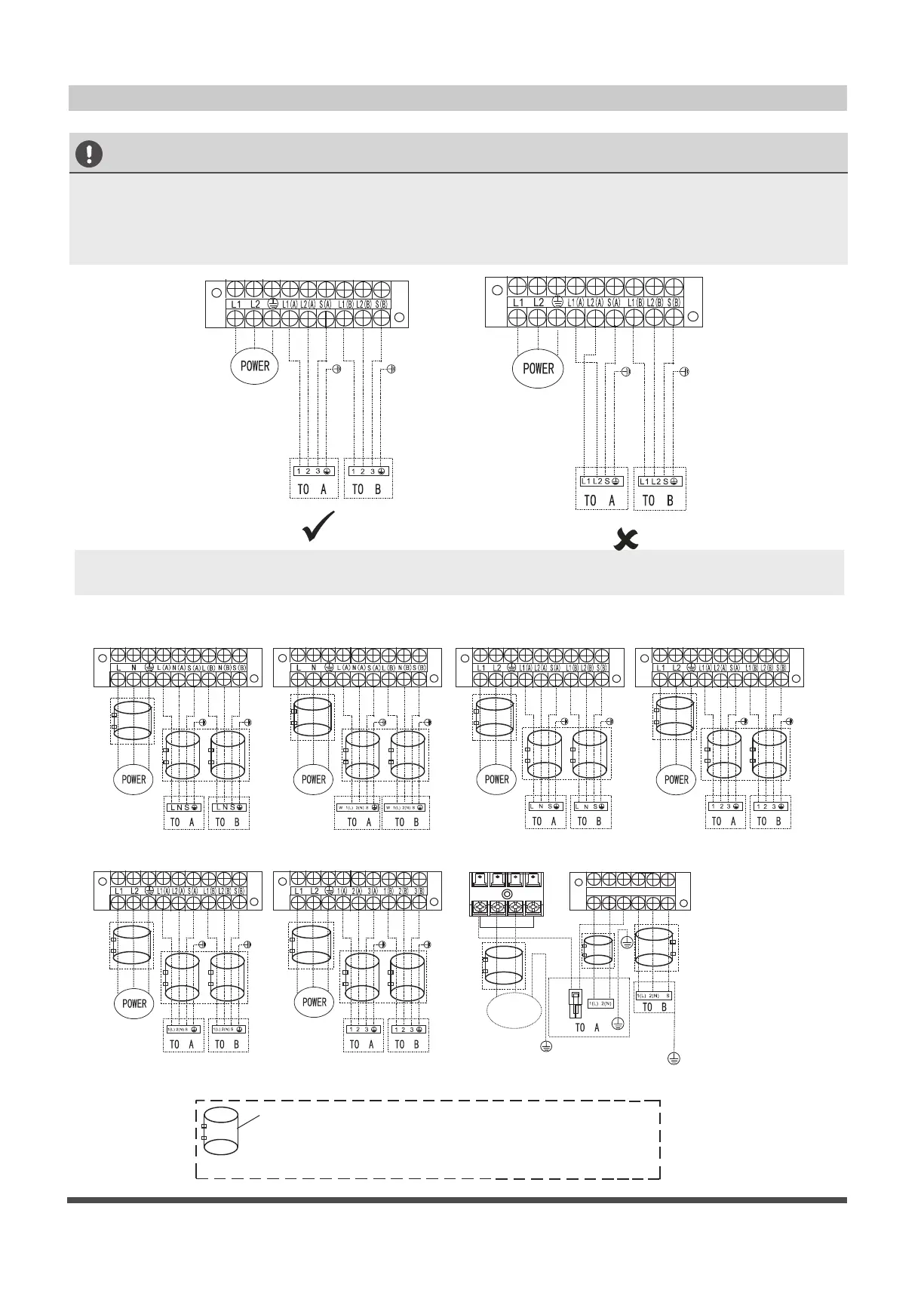

Wiring Figure
One-two models:
NOTE:Use the magnetic ring ( not supplied, optional
part) to hitch the connective cable of indoorand
outdoor units after installation.One magnetic ring
is used for one cable.
POWER
SUPPLY
L(A)
S(A)
N(A)
L(B)
N(B)
S(B)
Y/G
W
L
N
L( 1 )
NOTE: Refer to the following gures if end-users wish to perform their own wiring.
Run the main power cord through the lower line-outlet of the cord clamp.
CAUTION
Connect the connective cables to the terminals, as identied, with their matching numbers on the
terminal block of the indoor and outdoor units. For example, in the US models shown in the
following diagram, Terminal L1(A) of the outdoor unit must connect with terminal L1 on the
indoor unit.
Model A
Model E Model F Model G
Model B Model C Model D
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL
OPTIONAL OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL
54
