Installation for indoor unit
Fixing the indoor unit
1. Hang the inner machine hooked to the template,
moving the machine from left to right to make sure it
is positioned correctly.
2. Move the indoor unit slightly to the right and left
on the template, until you hear a “click” indicating
that it is correctly positioned.
Interconnection cord installation
• If the purchased indoor unit has the electric wire connected, you do not need to
modify it.
• If the purchased machine does not have the power connection line, you need to

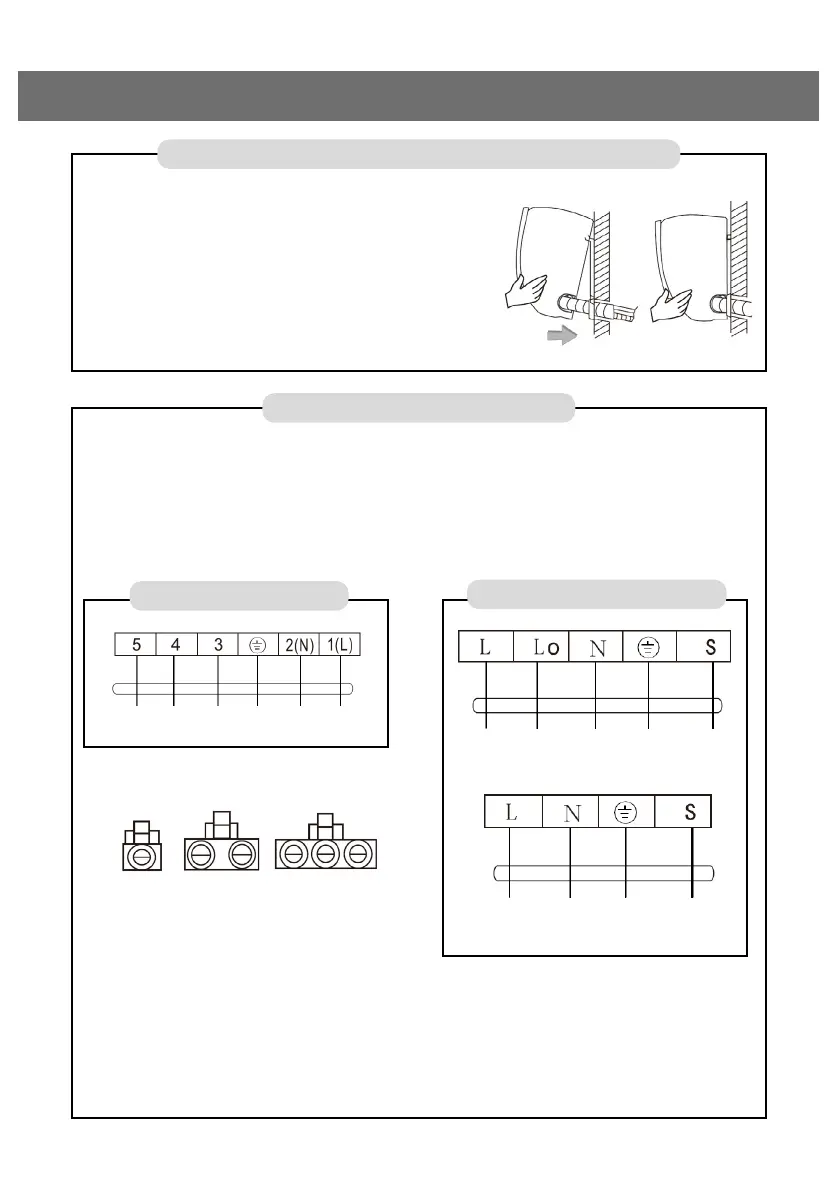

connect the cable according to the following diagram.
Note: *This manual contains the connection form of different air conditioners. You
must choose the scheme that corresponds to that of the purchased device.
*This wiring diagram is for reference only. If the wiring diagram is different from that
of your appliance, the detailed wiring diagram xed on the machine body prevails.
Constant speed
Variable speed
For outdoor unit
Connection plug
If the models have the connection plug,
they can be inserted directly.
To outdoor unit
To outdoor unit
