INSTALLATION INSTRUCTIONS
● The installation for electrical and plumbing work must be carried out
by qualified personnel, according to the installation instructions and in
compliance to the local authority regulations.
● Unit has to be installed as near as possible to the service points, in
order to reduce heat loss along the pipes. To facilitate maintenance,
allow a distance of 50cm for easy access to the electrical parts.
● This electrical water heater should be mounted on a solid cement
wall, preferably where it is close to the power source’s sockets and
water source.
● Please use our company’s fitted accessories to mount this electric
water heater.
● Before determining the bolt hole’s position, you should ensure that the
heater is more than 200mm from the ground or ceiling board. This will
leave space for maintenance when necessary.
● Assembling method: After selecting the proper fixing positions, use
the inflating bolt to secure the hanging board firmly, then hook the
electric water heater. (Diagram 4)
PIPE CONNECTION
● All piping parts are BSP 1/2”. Wind some white tape at the thread
sector of the inlet pipe (marked blue).
● Fix the safety valve to the inlet pipe and then connect it to the cold
water pipe of the mains.
● Install a water drainpipe to the safety valve to drain away water
discharge. (drain pipe joint outlet — diagram 5).
● Install the drainpipe in a continuously downward direction and in a
frost free environment.
● Connect the hot water pipe (marked red) to the outlet pipe.
● Do not over-tighten the safety valve and all pipes joint as it may
cause damage to the joints.
● Make sure all pipes are clean before installing the taps and showers.

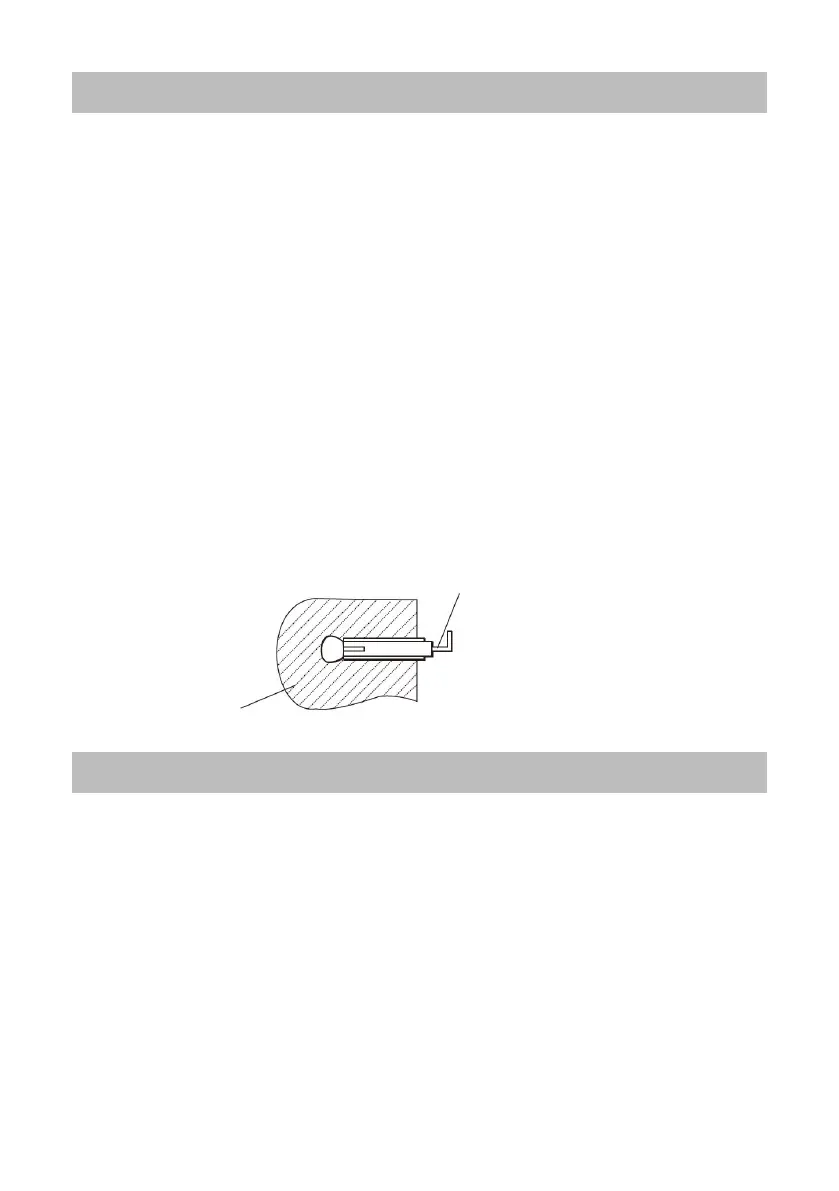

Diagram 4
Ination bolt
Firm Cement wall
