Huahuan Electronics H20RN-2000.V2 Series User Manual

Hardware Description
H20RN-2000.V2 Series Platforms
2 Architecture and Introduction
Version 1.3(Oct.2019)
Beijing Huahuan Electronics Co., Ltd.
25

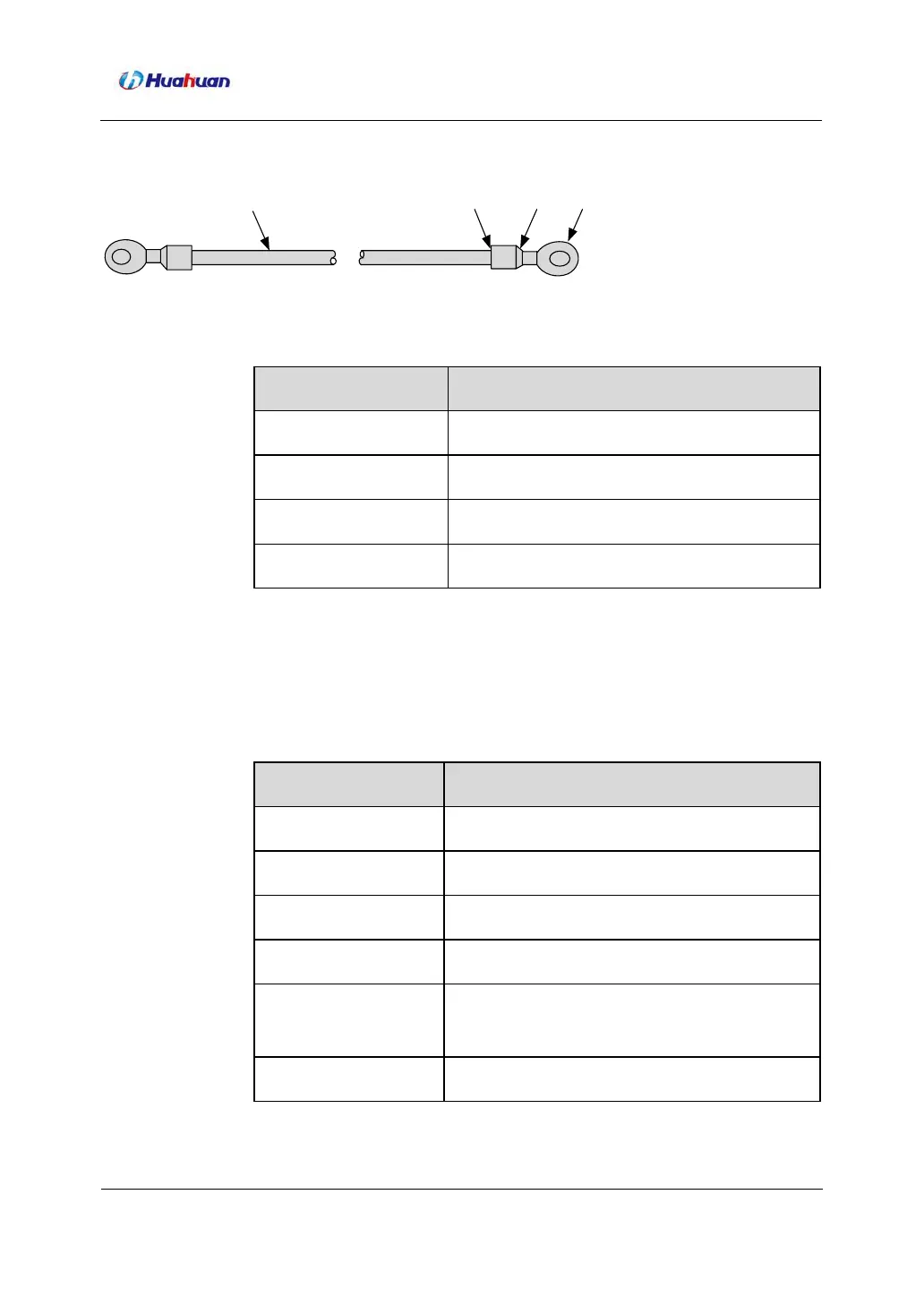

Figure 2-23 The grounding cable diagram
1 2 3 4
Table 2-19 Grounding cable structure list
Number
Name
1
Wire
2
Strip end (connected to the OT terminal)
3
Insulating sheath
4
OT terminal
Technical Specifications
Table 2-20 lists technical specifications of the grounding cable.
Table 2-20 Technical specifications of the grounding cable
Item
Description
Cable type
Electronic and electrical cable
Cable length
0.4 m
Color
Yellow and green
Connector type
OT/OT
Inner conductor cable
standard
Cross-sectional area ≈ 0.75 mm
2
Maximum current
7.5 A

Huahuan Electronics H20RN-2000.V2 Series Specifications

General

Brand	Huahuan Electronics
Model	H20RN-2000.V2 Series
Category	Multiplexer
Language	English
