Huawei AP3010DN-AGN Product Description

2.1 AP3010DN-AGN
Appearance
Figure 2-1 shows the appearance of the AP.
NOTE
The actual device appearance may be different from the following device appearance, but these differences
will not affect device functions.

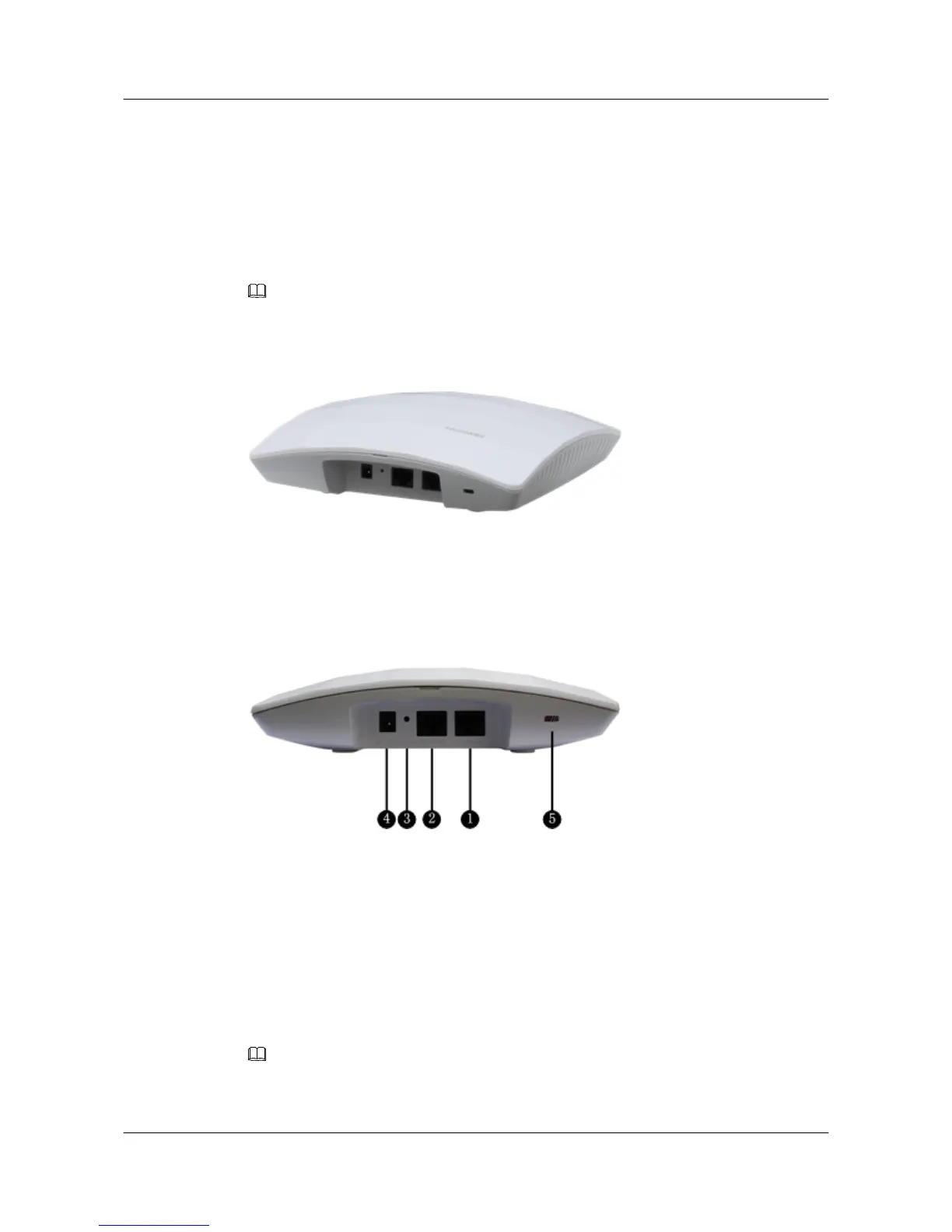

Figure 2-1 AP appearance
Interfaces
The following figure shows interfaces on the AP.
Figure 2-2 Interfaces on the AP
As shown in Figure 2-2, the AP has the following interfaces.
1. Console interface.
2. ETH/PoE interface: a 10/100/1000M interface, which connects to the wired Ethernet and
supports PoE power supply.
3. Default button: restores factory settings if you hold down the button more than 3s.
4. Power input interface: 12 V DC.
5. Lock interface: protects the AP against theft.
NOTE
Only Chinese-style power adapters can be delivered with the APs.
