Huawei AP3010DN-AGN Product Description

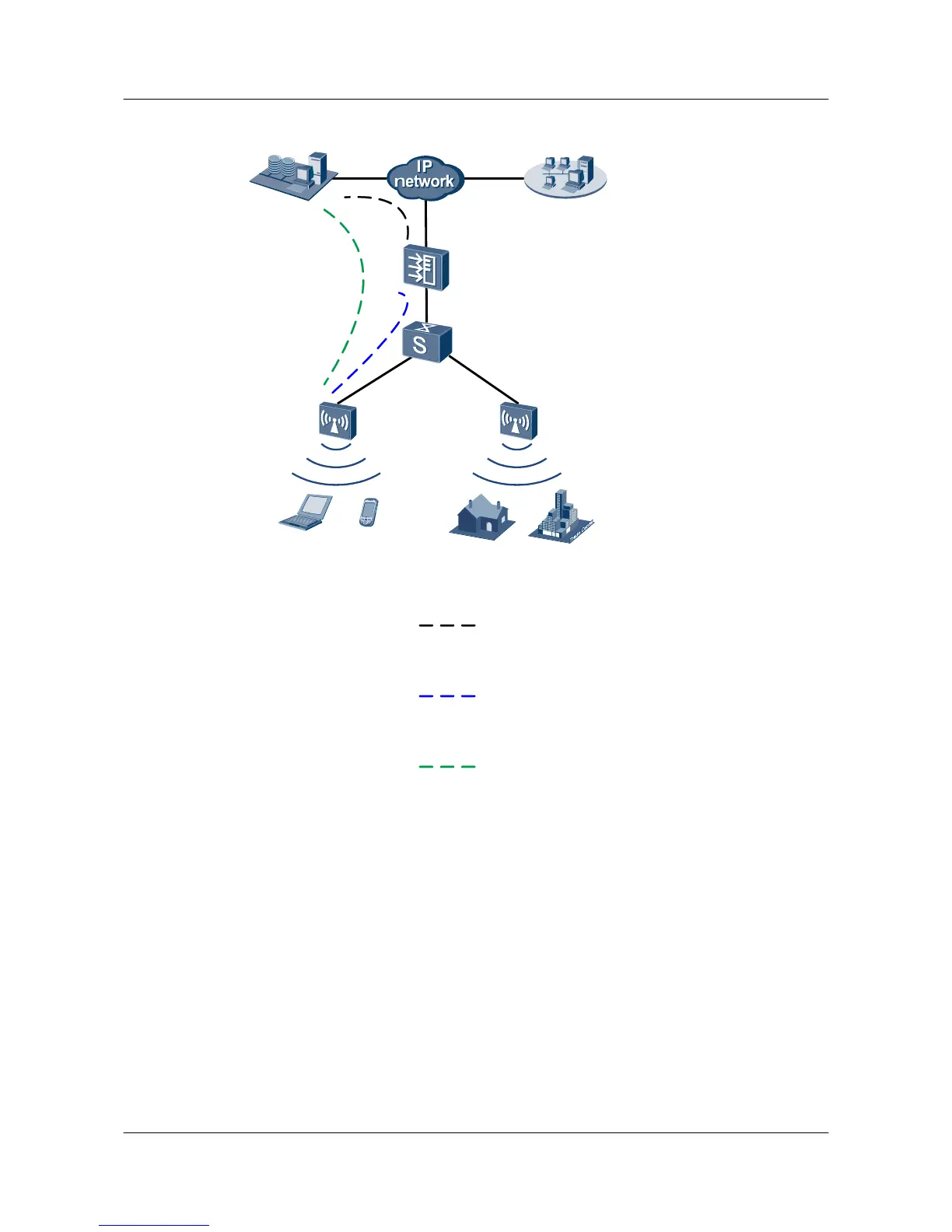

Figure 1-1 Fit AP networking (AP mode)
AP n
AP1
……
NMS
AC
Authentication system
Switch
Management channel between
NMS and AC
Management channel between the
AC and the AP and data channel
Where data flows are
encapsulated with CAPWAP
Channel where data flows are not
encapsulated with CAPWAP
Business
users
Residential
users
STA
STA
In this networking, the AP functions as a fit AP and provides only data forwarding functions.
The AC is responsible for user access, AP go-online, AP management, authentication, routing,
security, and QoS.
