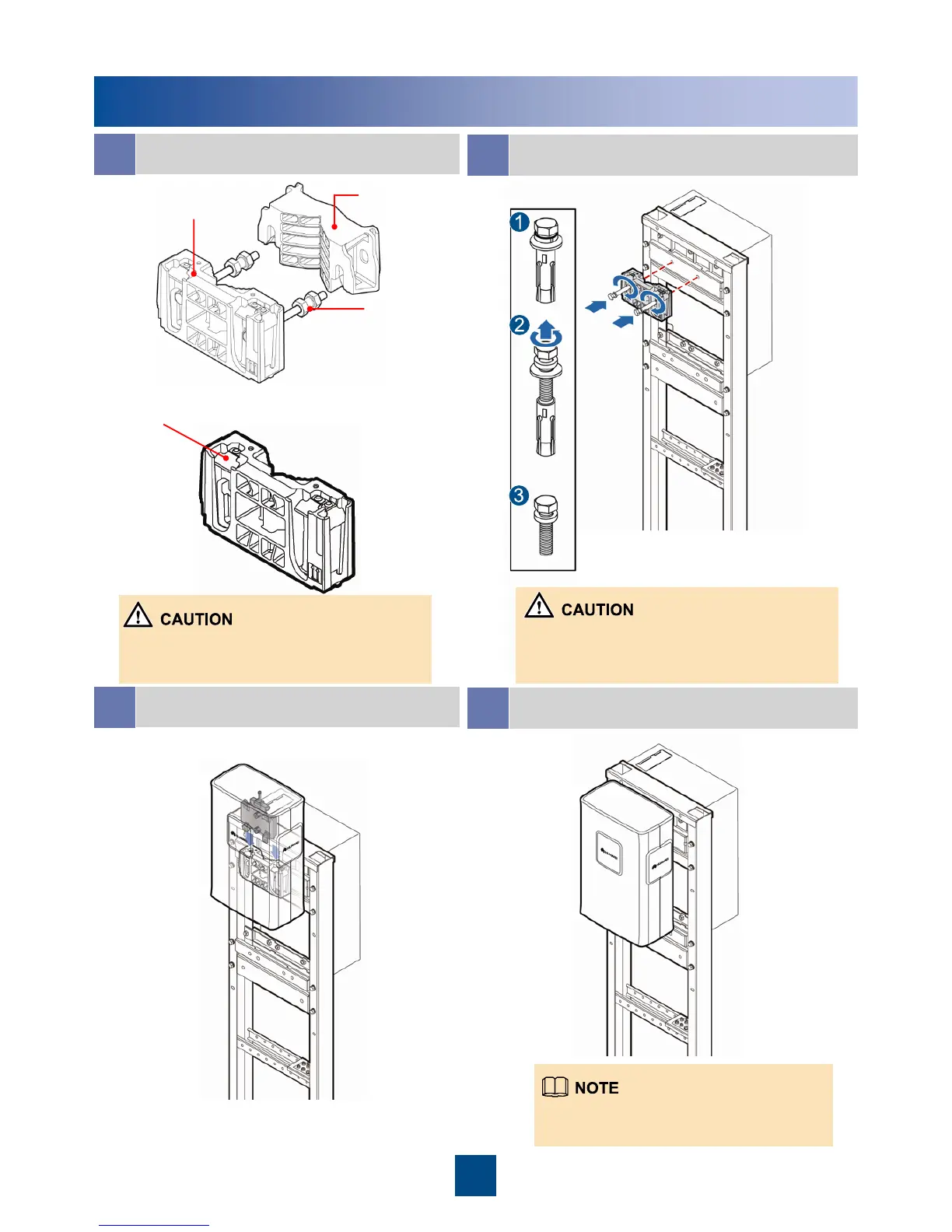

Installing the RRU on the H-Shaped Stand
Brackets for
installing the RRU
Main bracket
Auxiliary Bracket
Dual-nut bolt
Only the main bracket is used for installing the
RRU on the H-shaped stand, and the dual-nut
bolt and auxiliary bracket are not used.
Main bracket
a
Preparing the Installation
a
Installing the Main Bracket
b
a
Installing the RRU
c
Securing the RRU
d
For details about cable connections, see
pages 25 and 26.
When the expansion bolt assemblies are used
to secure the H-shaped stand, only the bolt
and spring washer are used, and the
expansion tube and plastic tube are removed.
