Huawei BBU3900 - Exterior of the BBU3900&BBU3910; BBU3900&BBU3910 Boards

LTE TDD
BBU3900&BBU3910 Description
1 Overview
Issue 01 (2018-02-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2

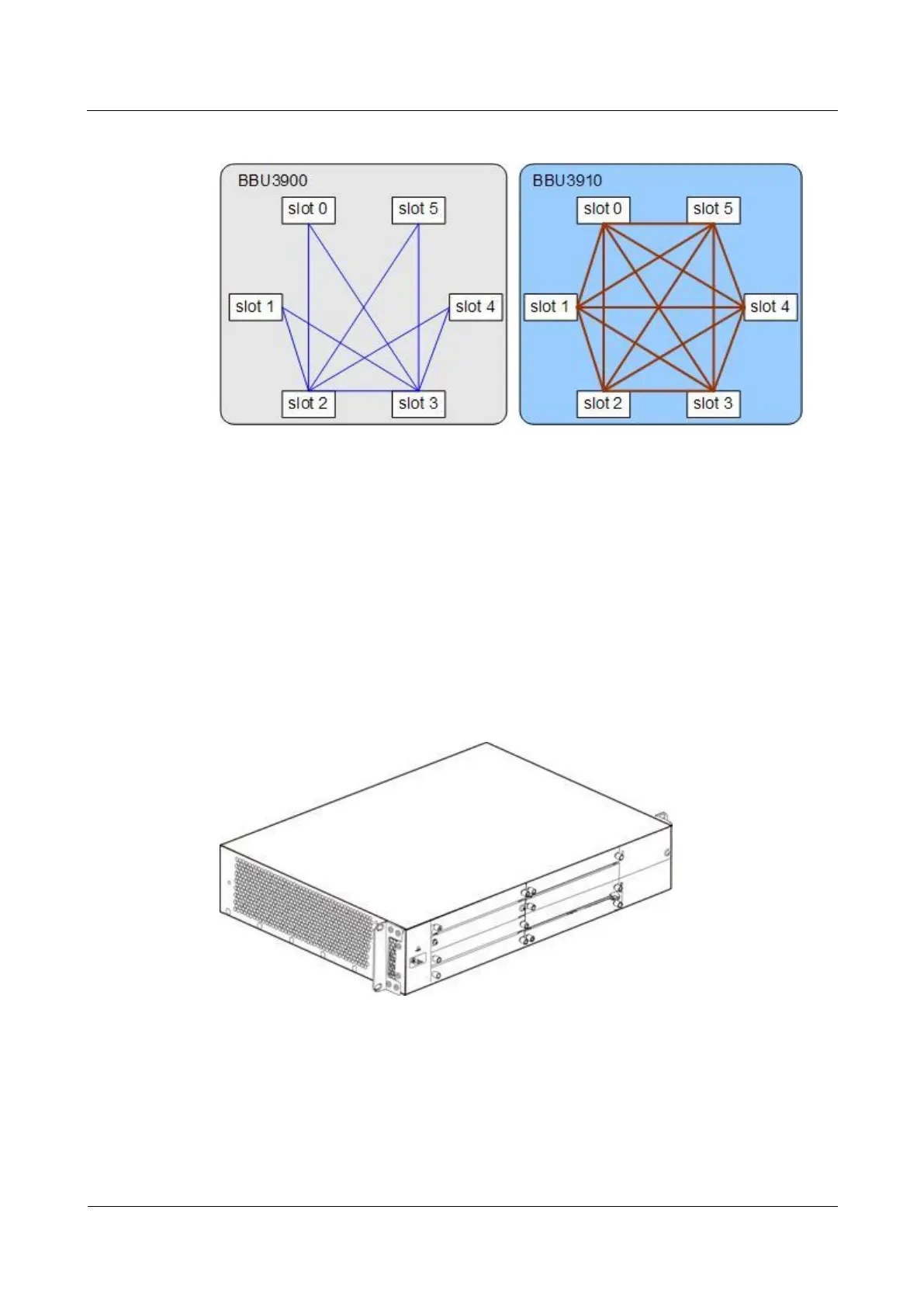

Figure 1-1 Slot connections in the BBU3900 and BBU39010

The backplane switching bandwidth for each pair of directly-connected slots in the
BBU3910 is almost twice that in the BBU3900.
1.2 Exterior of the BBU3900&BBU3910
The BBU3900&BBU3910 is a case measuring 19 inch wide and 2 U high. It can be installed
indoors, such as an office building or residence, or be installed in a cabinet with surge
protection in an outdoor place, such as a basement, balcony, corridor, or garage.
Figure 1-2 shows the exterior of the BBU3900&BBU3910.
Figure 1-2 BBU3900&BBU3910
1.3 BBU3900&BBU3910 Boards
The following boards can be installed in the BBU3900:

LMPT and UMPT
