Huawei E5331 Maintenance Manual

E5331 Maintenance Manual Basic Version V1.0
Internal
2012-4-21
Huawei confidential. No spreading without permission.
Page 38 of 57
*
9.5 Data Communication Failure

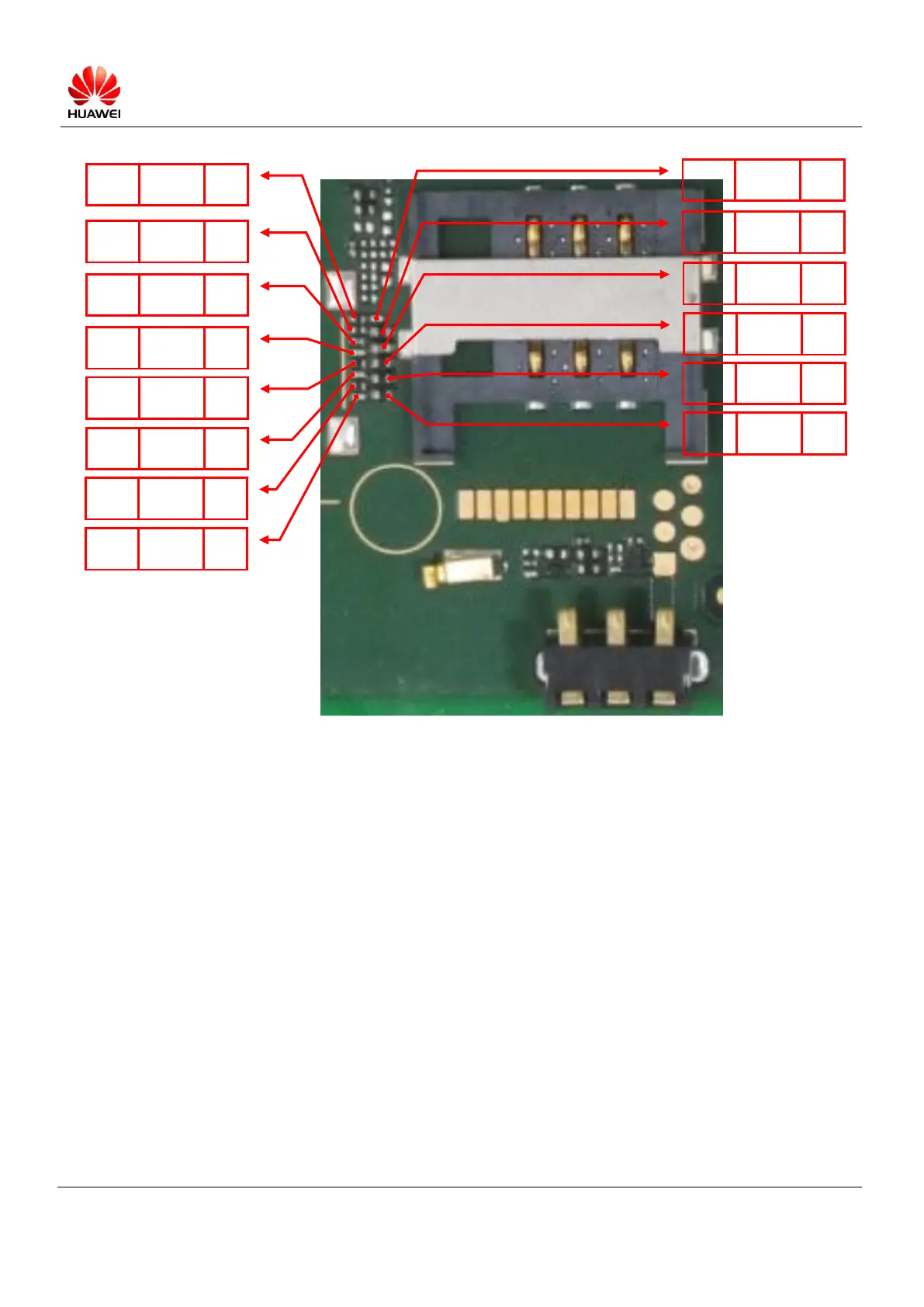

Reference Figure 9-5
Figure 9-4
R3707
Resistor
/
C3713
Capacitor
/
R3701
Resistor
/
RV3708
Varistor
/
C3416
Capacitor
/
C3719
Capacitor
/
C3702
Capacitor
/
RV3705
Varistor
/
RV3707
Varistor
/
RV3706
Varistor
/
R3312
Resistor
/
C3718
Capacitor
/
R3313
Resistor
/
C3717
Capacitor
/
