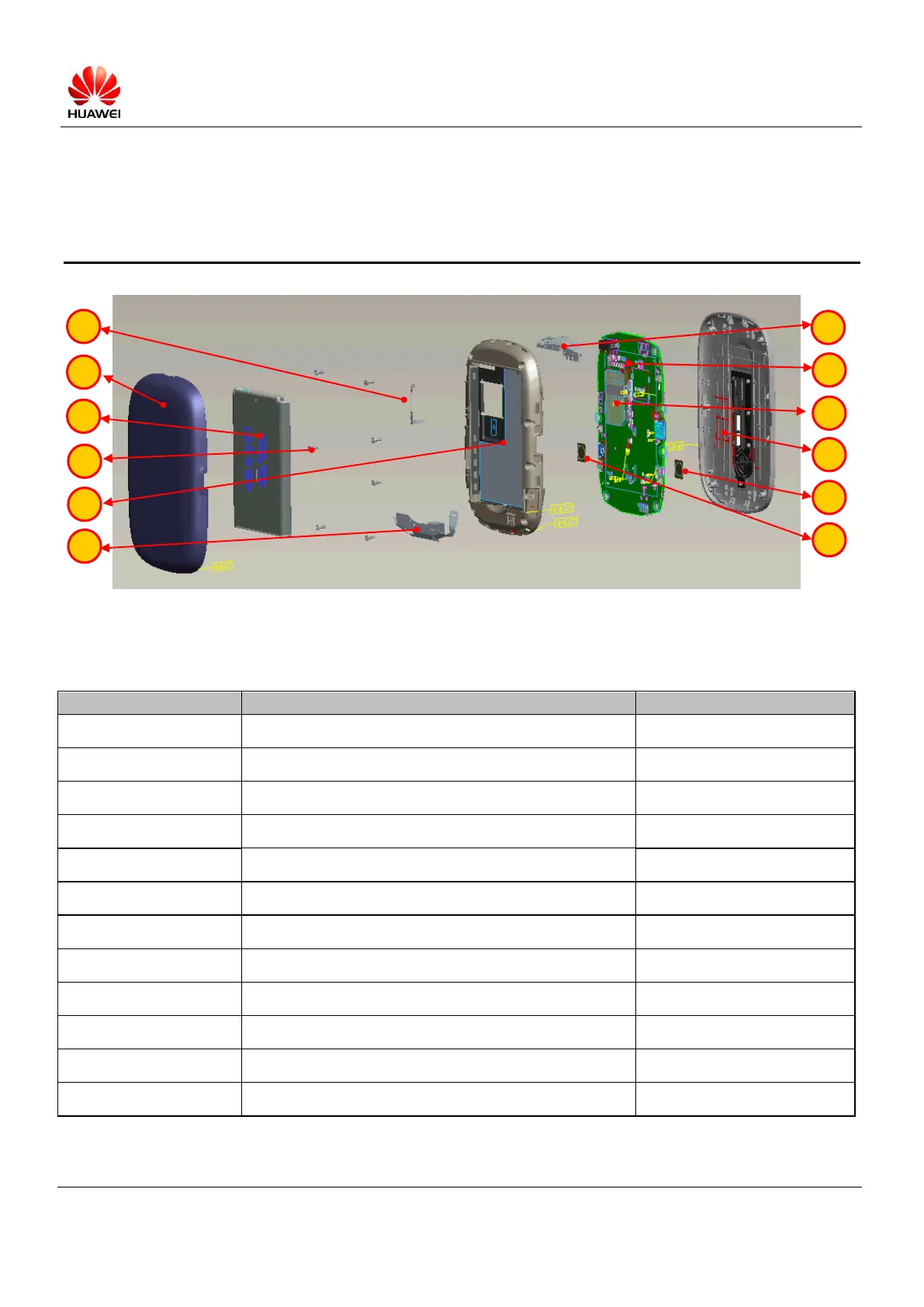

3 Exploded View of the Whole Unit
This exploded view is only applied to show phone frame. It is not regarded as a reference for applying
spare parts.
No.
Description
Quantity
1
WiFi Antenna
1
2
Battery Cover
1
3
Battery
1
4
Bolt
7
5
Back Cover
1
6
Main Antenna
1
7
Diversity Antenna
1
8
Water Proof Label
1
9
Main Board
1
10
Front Cover
1
11
Power Button Dome
1
12
Reset Button Dome
1
2
3
10
11
5
6
1
4
7
9
12
8
