9.8.5 RF Transmitting Failure – WCDMA 900MHz

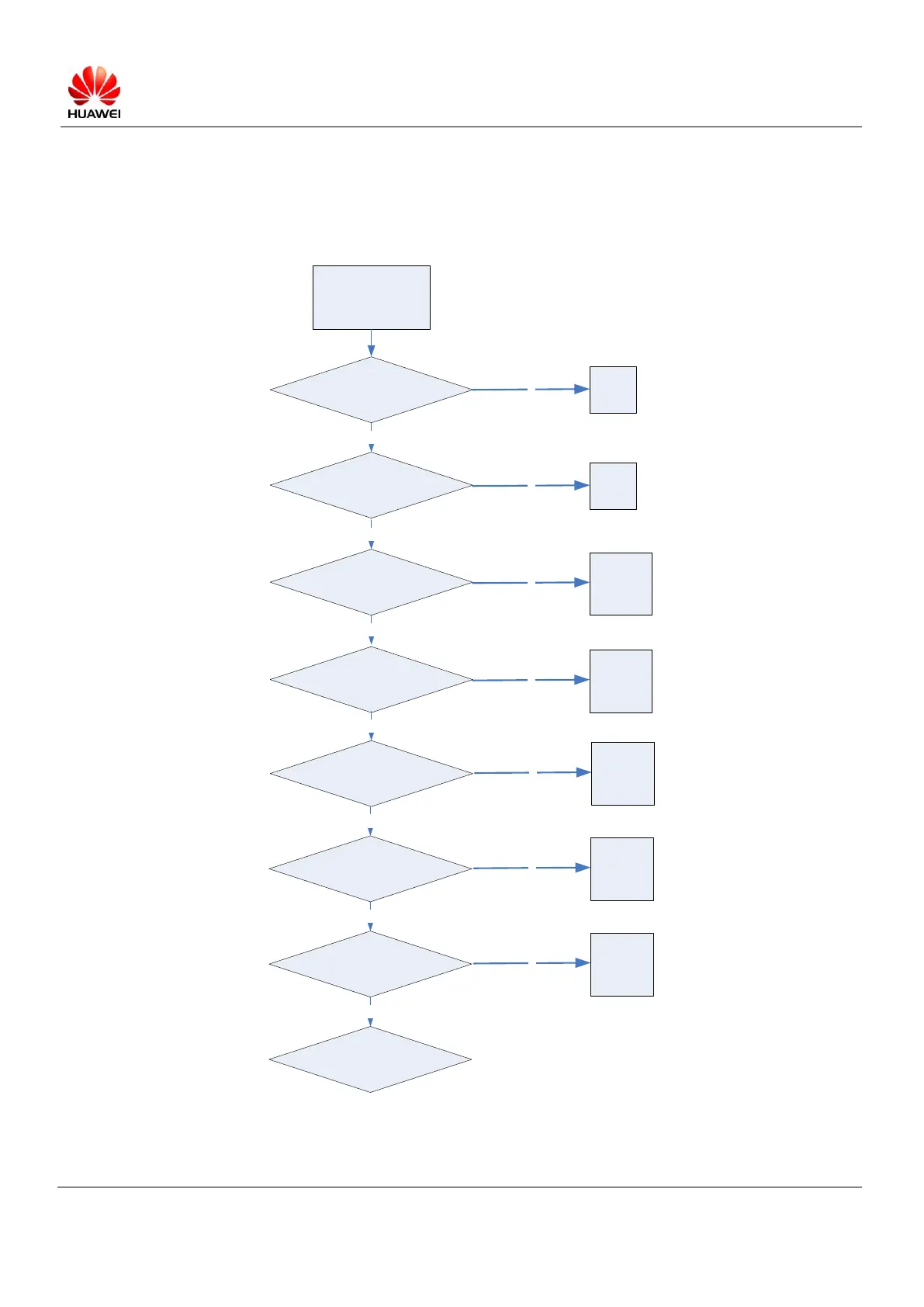

Reference Figure 9-8
Transmitting Failure
(WCDMA2100MHZ)
Update the sofeware。
Then inspect if it is normal?
Y
END
Check whether
antenna are normal
N
N
Replace
The
antenna
Replace J801. Check whether
It is normal
Y
Y
END
Replace U801. Check whether
It is normal
N
Y
END
Replace U502.Check whether
It is normal
N
Y
END
Replace U501 .Check whether
It is normal
N
Y
END
Replace Z501 .Check whether
It is normal
N
Y
END
Replace U101
N
