E5331 Maintenance Manual Basic Version V1.0
Internal
2012-4-21
Page 41 of 57

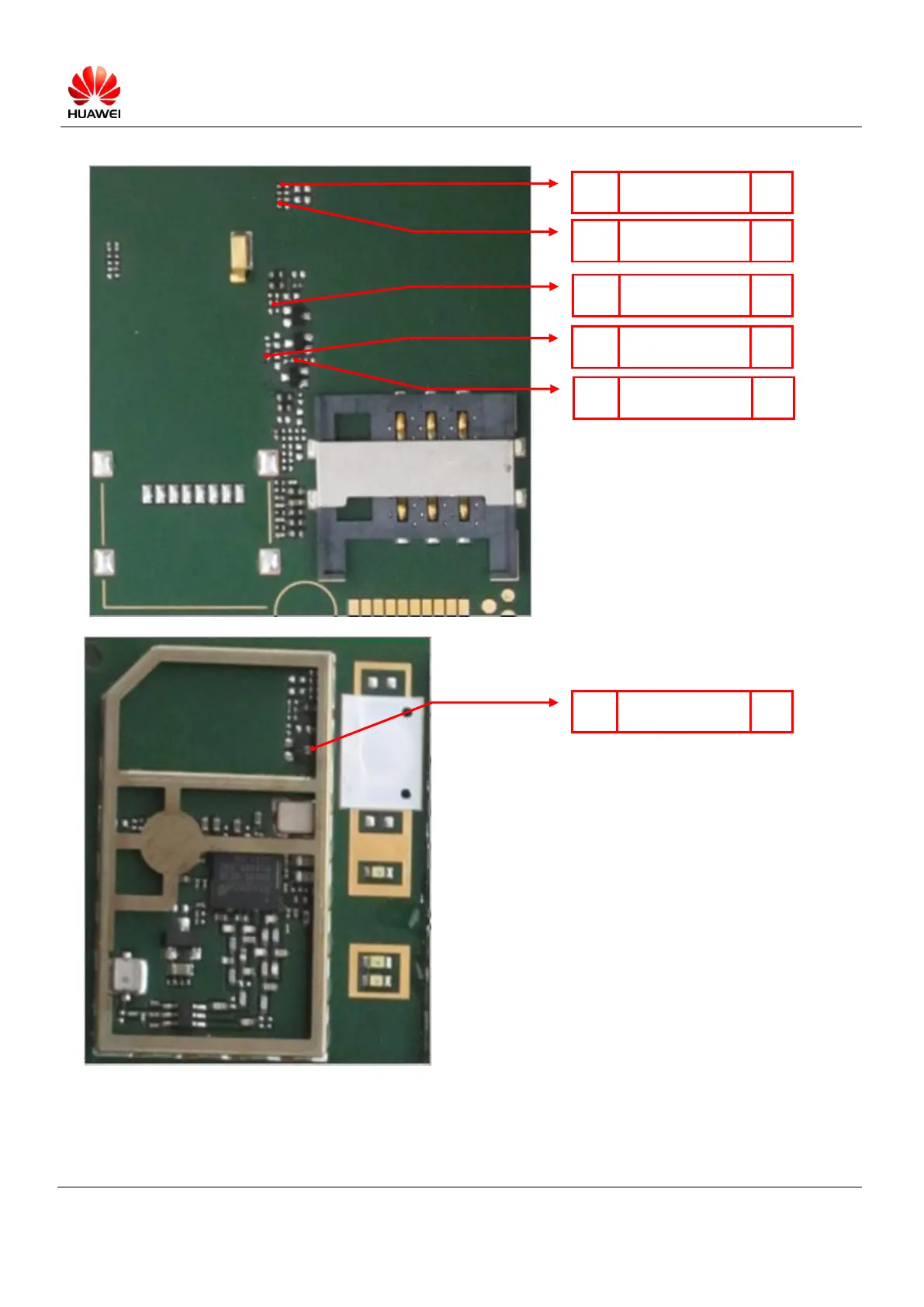

Figure 9-6
R3909
Resistor
220Ω
Q3902
R3908
Resistor
300Ω
Q3905
Q3903
Q3904
R3910
Resistor
300Ω
R3911
Resistor
220Ω
R3914
Resistor
300Ω
R3915
Resistor
300Ω
