6
1. When installing ONTs placed horizontally against the wall, you are advised to leave the
heads of the screws 3 mm over the wall. When installing ONTs placed vertically against the
wall, you are advised to leave the heads of the screws 8 mm over the wall.
2. This terminal is mainly placed horizontally on a desk. When it is mounted onto a wall, the
silkscreen of its indicator is reversed. If you have a special requirement on the silkscreen,
purchase another terminal.

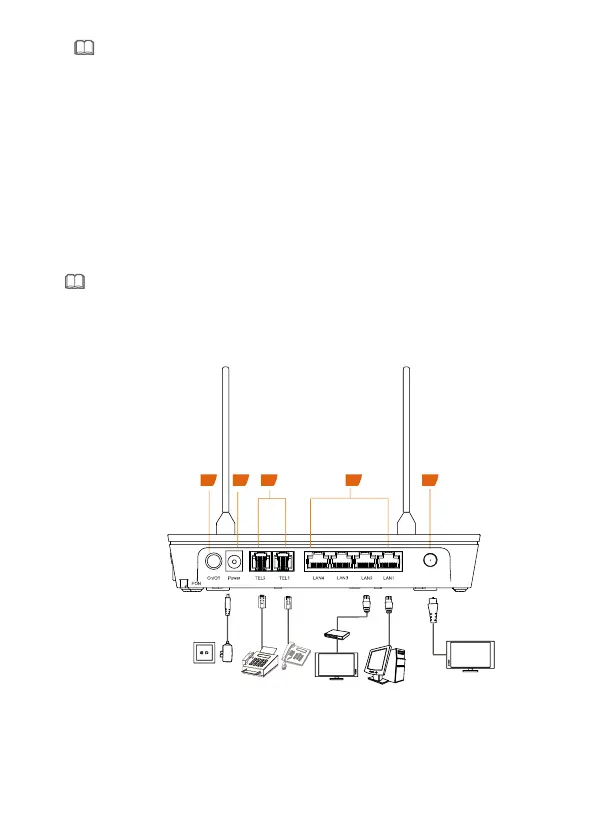

Connecting Cables
Ports on GPON terminals of all types may be different. Therefore, connect cables based on the ports
that are actually supported by the device. If the external device is different from the device in the figure,
see the description for connections of the external device. This document lists connections of typical
devices.
HG8247H5
1. The optical fiber connector connected to the optical port on the wall varies depending on
actual conditions.
2. To ensure normal use of fibers, make sure that the fiber bend radius is larger than 30 mm.
Fax machine
Phone
PC
TV set
IP STB
Power socket
TV set
CATV
1 2 3 4 5
