Huawei EchoLife HG8245W5-6T User Manual

NO TE

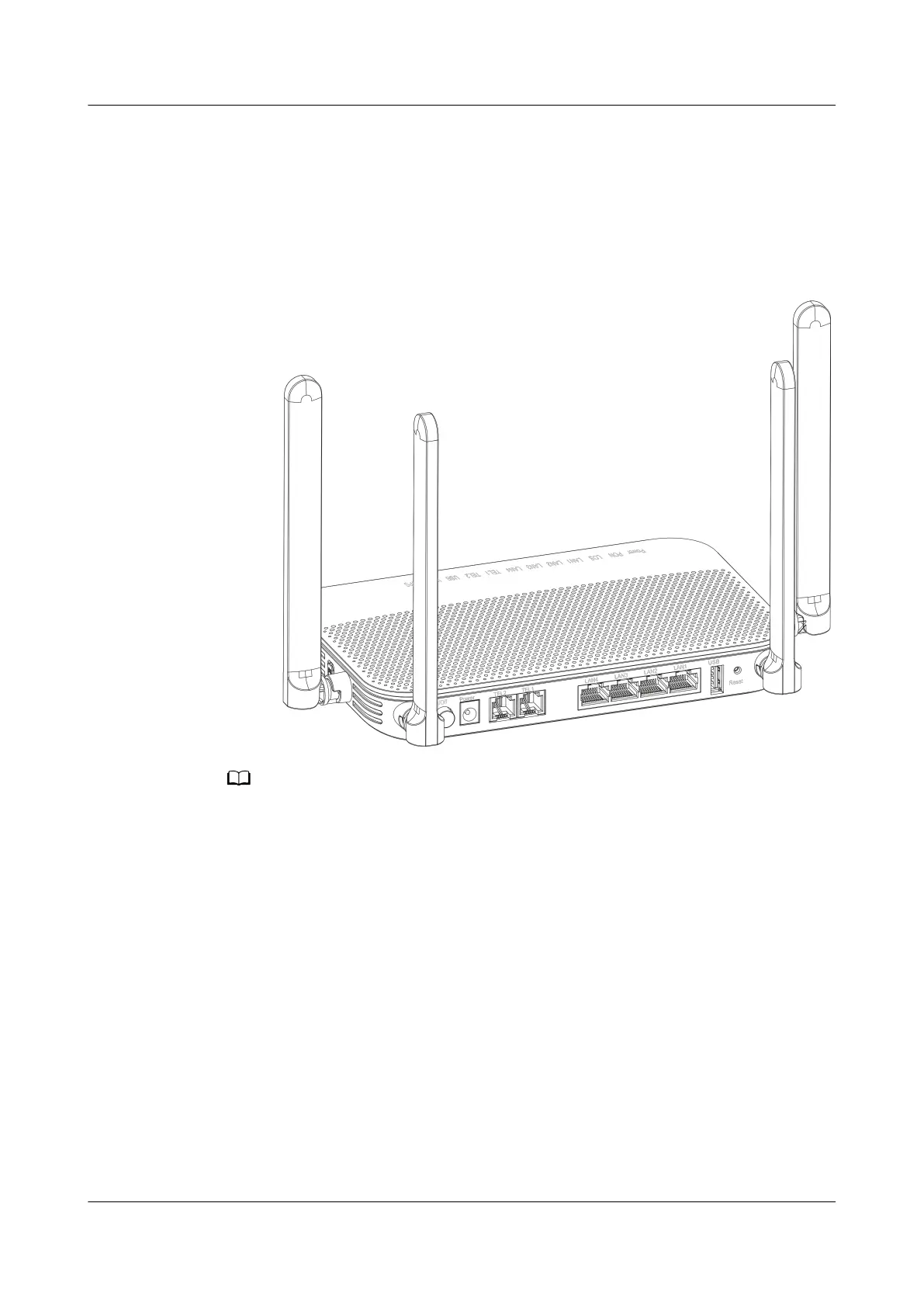

The appearance shown in this document may be dierent from the actual appearance of
the product. The actual product prevails.
Mounting an ONT onto the wall
1. Mark two positions with the same spacing as that between the two mounting
holes of the ONT using a marker on a wall.
2. Select a proper drill bit according to the outer diameter of the screws. Use a
hammer drill to drill the marked positions on the wall. Then clean the holes
and install two expansion bolts.
3. Use a screwdriver to fasten the screws into the expansion bolts, reserving 5
mm ends out of the wall, and mount the ONT onto the screws.
EchoLife HG8245W5-6T
Quick Start for QR code 1 Placing the Device
Issue 05 (2022-12-08) Copyright © Huawei Technologies Co., Ltd. 2

Huawei EchoLife HG8245W5-6T Specifications

General

Device Type	GPON Terminal
Power Supply	12 V DC, 1.5 A
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Ports	4 GE + 1 POTS + 1 USB
Wi-Fi	802.11b/g/n/ac
Max. Wi-Fi Speed	1167 Mbps
Antenna Gain	5 dBi
