Huawei FusionModule500

16
4

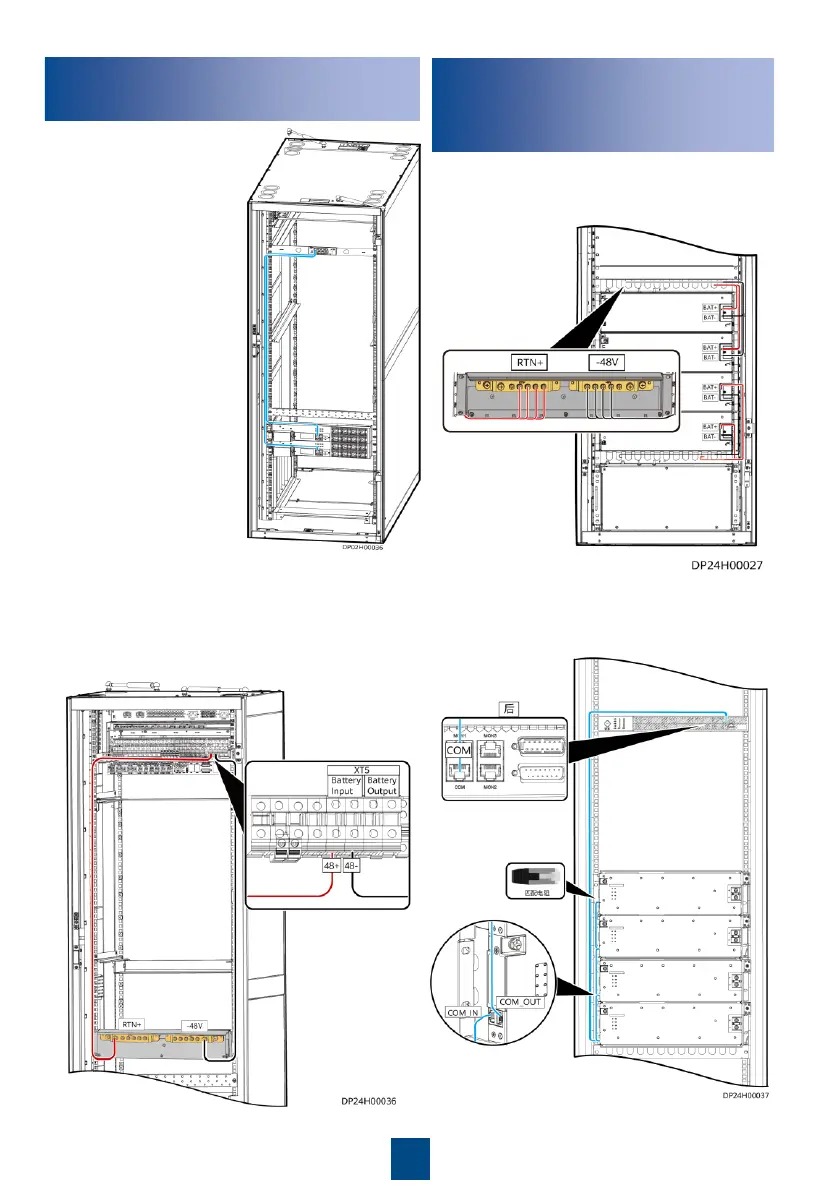

(Optional) Connecting
PDU2000 Signal Cables
1. Connect the LAN1
port on the ECC800
to the PoE port on
the UIM.
2. Connect the
intelligent PDU2000
signal cables to the
COM1/AIDI_4 and
COM2/AIDI_5 ports
on the UIM20A
expansion module.
5
Connecting Cables
Between Lithium
Batteries and the UPS
1. Connect cables between lithium
batteries and busbars.
4. Connect communications cables
between lithium batteries and the UPS.
2. Connect cables between the busbars
and the PDU.
3. Connect cables between the PDU and
the UPS.
