Huawei FusionModule5000 Quick Installation Guide

2

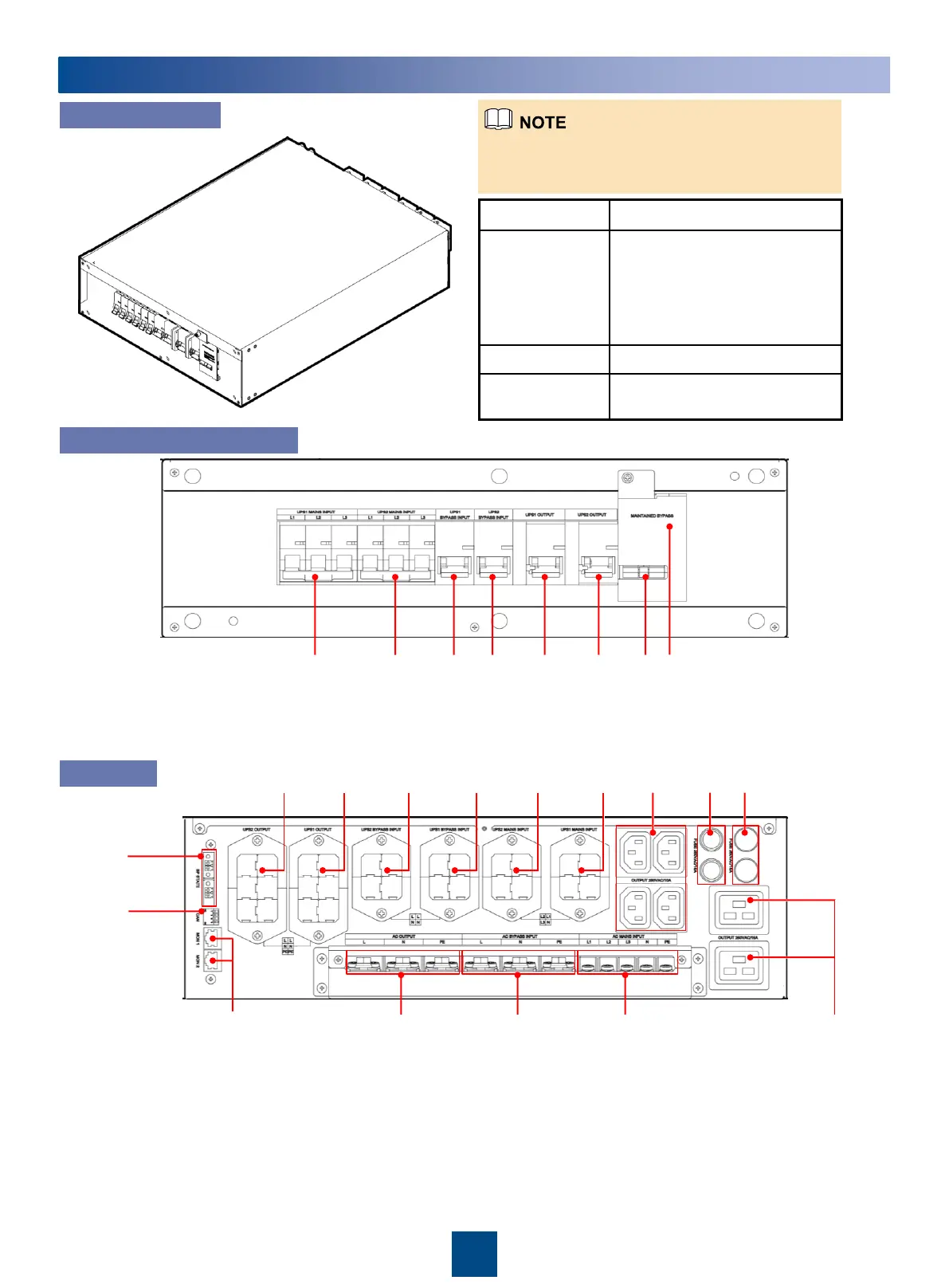

Appearance
1. UPS 1 mains input
circuit breaker
2. UPS 2 mains input circuit
breaker
3. UPS 1 bypass input circuit
breaker
4. UPS 2 bypass input
circuit breaker
5. UPS 1 output circuit
breaker
6. UPS 2 output circuit
breaker
7. Maintenance bypass circuit
breaker
8. Maintenance bypass
circuit breaker cover
1. Maintenance bypass
ports
2. Dual in-line package (DIP)
switch
3. Control area network (CAN)
communications ports (to check
the input and output voltage of
PDU)
4. Output ports
5. Bypass input ports
6. Mains input ports
7. Output socket group 1 (250 V
AC, 15 A)
8. Output socket group 1
fuses (250 V AC, 15 A)
9. Output socket group 2
fuses (250 V AC, 10 A)
10. Output socket group 2
(250 V AC, 10 A)
11. UPS 1 mains input port
12. UPS 2 mains input port
13. UPS 1 bypass input
port
14. UPS 2 bypass input port
15. UPS 1 output port
16. UPS 2 output port
PDU Model
PDC-0091V2ACIOA
Applicable UPS
UPS2000-G-6K/10KRTS,
UPS2000-G-6K/10KRTL, and
UPS2000-G-15K/20KRTL
(Three-Phase Input Single-
Phase Output and Single-Phase
Input Single-Phase Output)
Weight
13 kg
Dimensions (H
x W x D)
130 mm x 430 mm x 585 mm
PDC-0091V2ACIOA
Front panel (under the cover)
Rear panel
1 2 3 4 5 6 7 8
1
2
4 5 6 7
3
8 9 10 11 12 13 14 15 16
PDC is short for power distribution cabinet.
PDU is short for power distribution unit.
UPS is short for uninterruptible power system.
