HUAWEI ME909s Series LTE Mini PCIe Module
Hardware Guide
Overall Description
Issue 02 (2016-09-07)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11

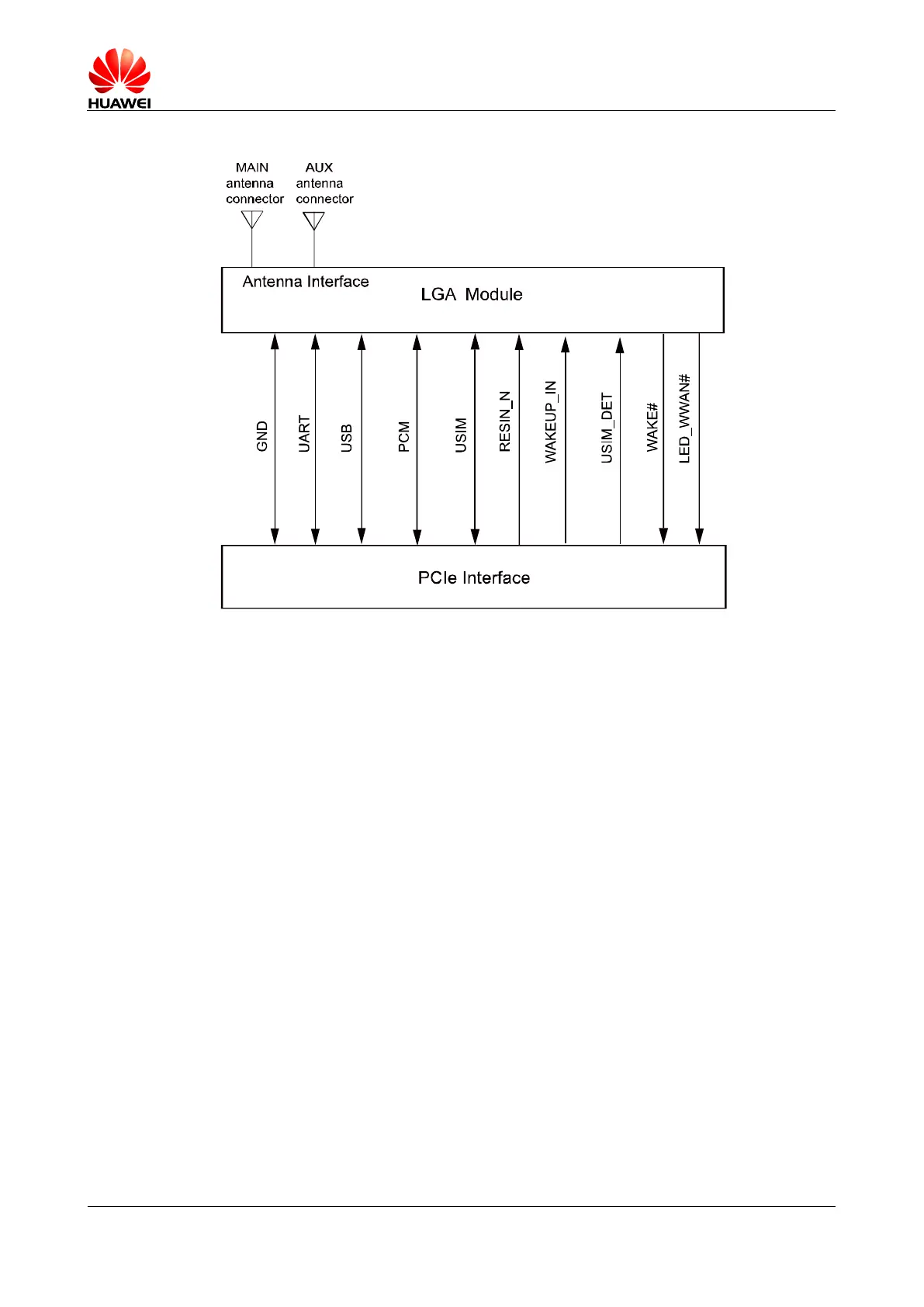

Figure 2-1 Circuit block diagram of the ME909s Mini PCIe module
