Huawei MERC-1100W-P User Manual

Optimizer Model Part No. Rated Input
Power
Input Cable
Length
Output Cable
Length
MERC-1300W-P
(Short input power
cables)
02314APY 1300 W 0.1 m 5.1 m (negative) +0.1
m (positive)
MERC-1300W-P
(Long input power
cables)
02314AQB 1300 W 1.3 m 2.9 m (negative) +0.1
m (positive)
MERC-1100W-P
(Short input power
cables)
02314APY-001 1100 W 0.1 m 5.1 m (negative) +0.1
m (positive)
MERC-1100W-P
(Long input power
cables)
02314AQB-001 1100 W 1.3 m 2.9 m (negative) +0.1
m (positive)
2.2 Structure
Optimizer Ports

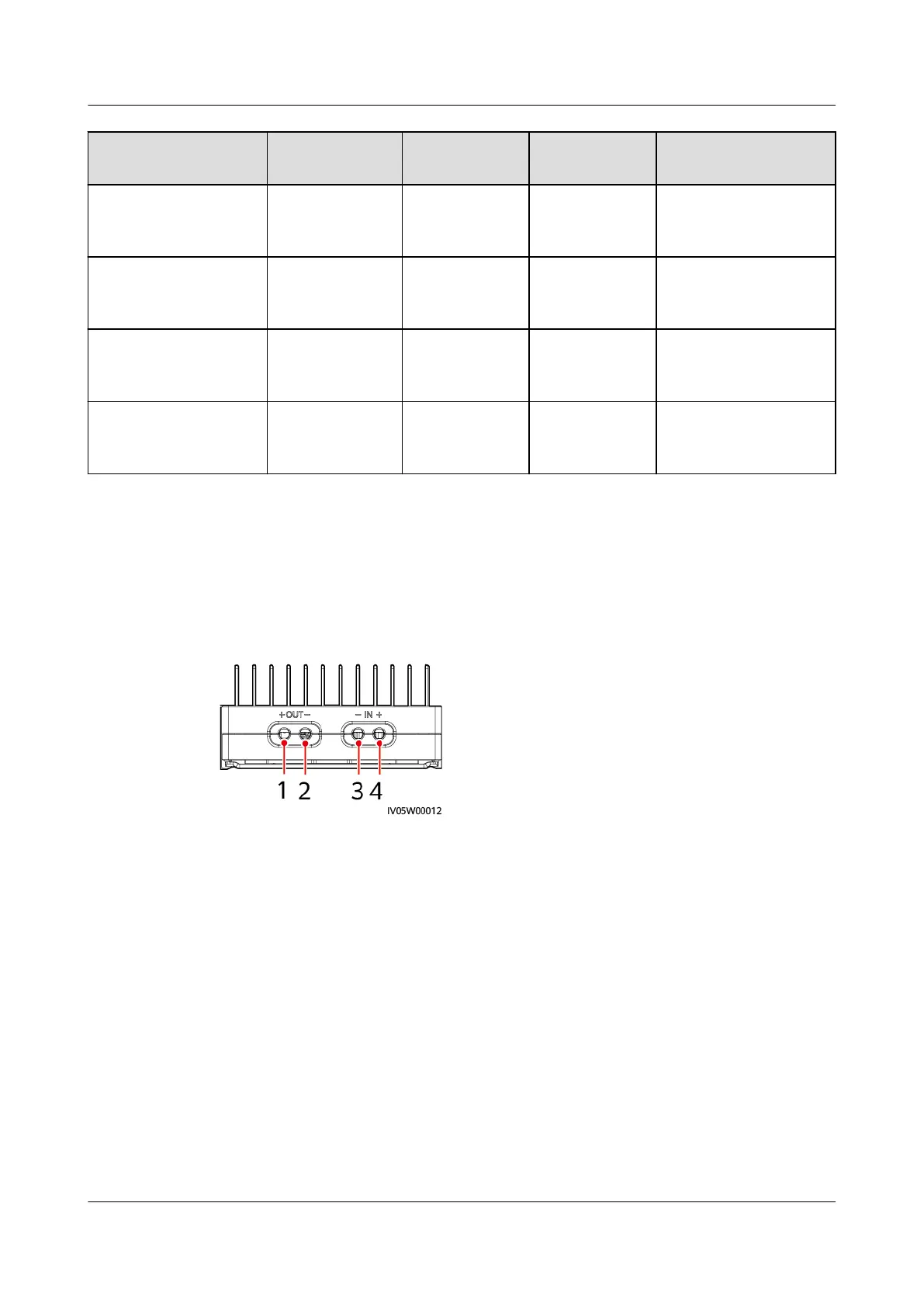

Figure 2-2 Ports
(1) Output port (positive)
(2) Output port (negative)
(3) Input port (negative) (4) Input port (positive)
MERC Smart PV Optimizer
User Manual 2 Product Introduction
Issue 02 (2022-09-20) Copyright © Huawei Digital Power Technologies Co., Ltd. 5
