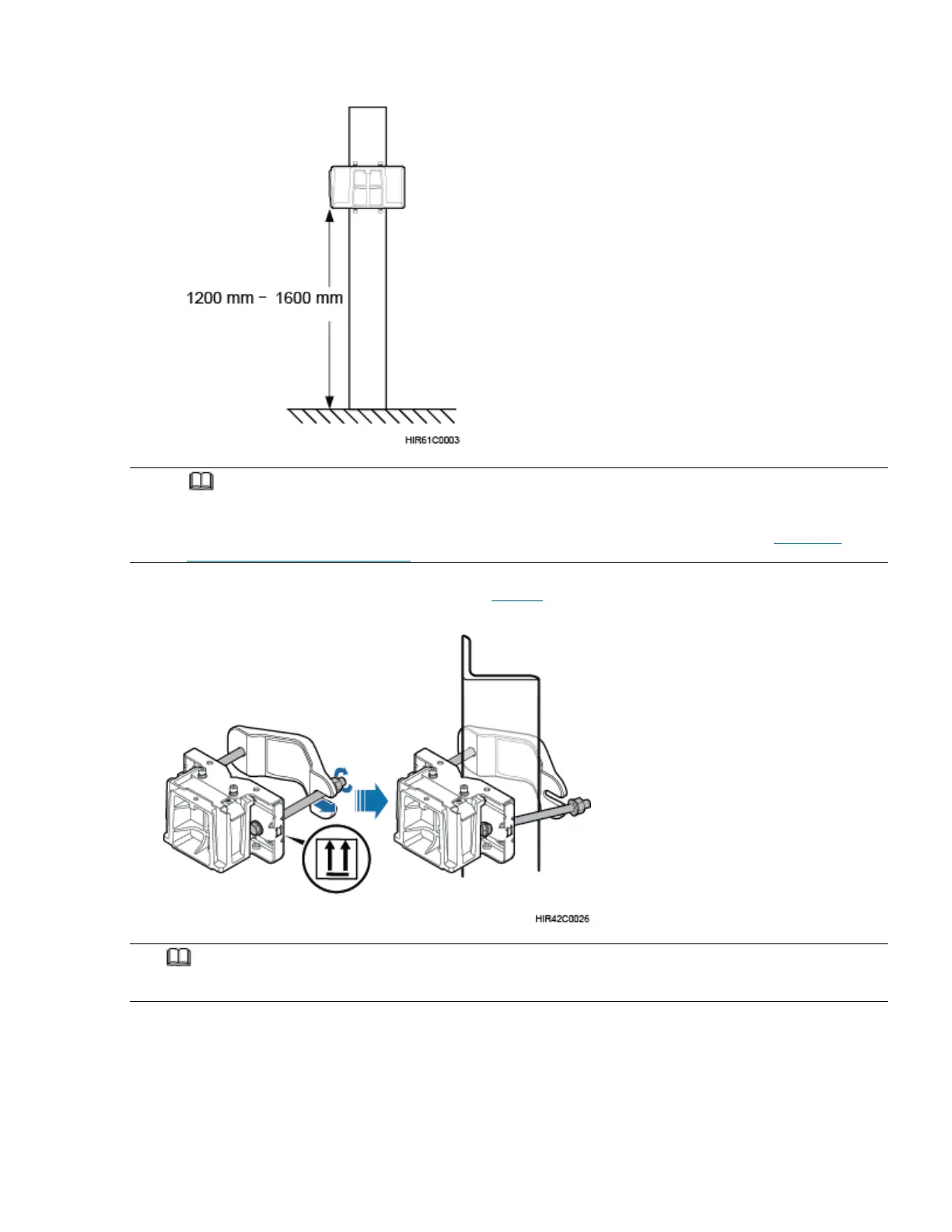

Figure 2 Distance between the mounting kits and the ground
NOTE:
As shown in the figure above, it is recommended that the mounting kits be installed at a position 1200 mm
(47.24 in.) to 1600 mm (59.06 in.) high above the ground. If the space is insufficient, only the Installation
Clearance Requirements of an RRU needs to be provided.
2. Install the RRU mounting kits, as shown in Figure 3.
Figure 3 Installing the RRU mounting kits
NOTE:
Ensure that the arrows on the pole mounting kits are pointing up.
a. Adjust the position of the nut and remove the square-neck bolt at the open end from
the slot on the auxiliary bracket.
b. Slide the mounting brackets onto the angle steel horizontally and insert the square-neck bolt
into the slot.
