Appearance and Structure

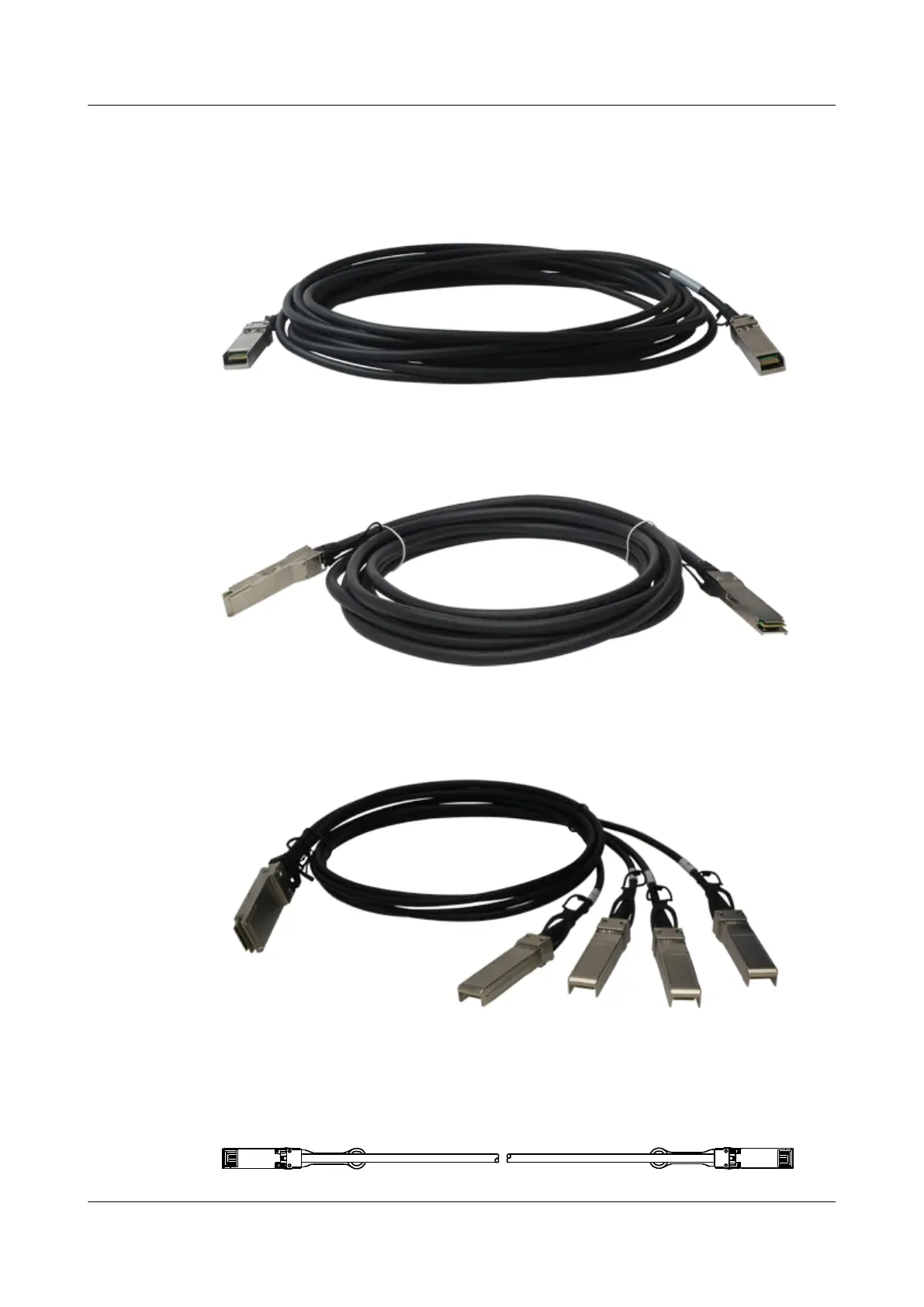

Figure 6-21 shows the appearance of an SFP/SFP+ copper cable.
Figure 6-21 Appearance of an SFP/SFP+ copper cable
Figure 6-22 shows the appearance of a QSFP+ copper cable.
Figure 6-22 Appearance of a QSFP+ copper cable
Figure 6-23 shows the appearance of a QSFP+ to 4*SFP+ copper cable.
Figure 6-23 Appearance of a QSFP+ to 4*SFP+ copper cable
Figure 6-24 shows the structure of an SFP/SFP+ copper cable.
Figure 6-24 Structure of an SFP/SFP+ copper cable
X1X2
S6700 Series Ethernet Switches
Hardware Description
6 Cables
Issue 12 (2015-07-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
82

Huawei S1720 Series Specifications

General

Operating Humidity	5% to 95% (non-condensing)
Uplink Ports	4 x GE combo ports
VLANs	4094
Power Supply	AC 100-240V, 50/60Hz
Layer 2 Features	VLAN
Layer 3 Features	Static routing
Management	SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to +70°C
Dimensions (W x D x H)	442 mm x 220 mm x 43.6 mm
