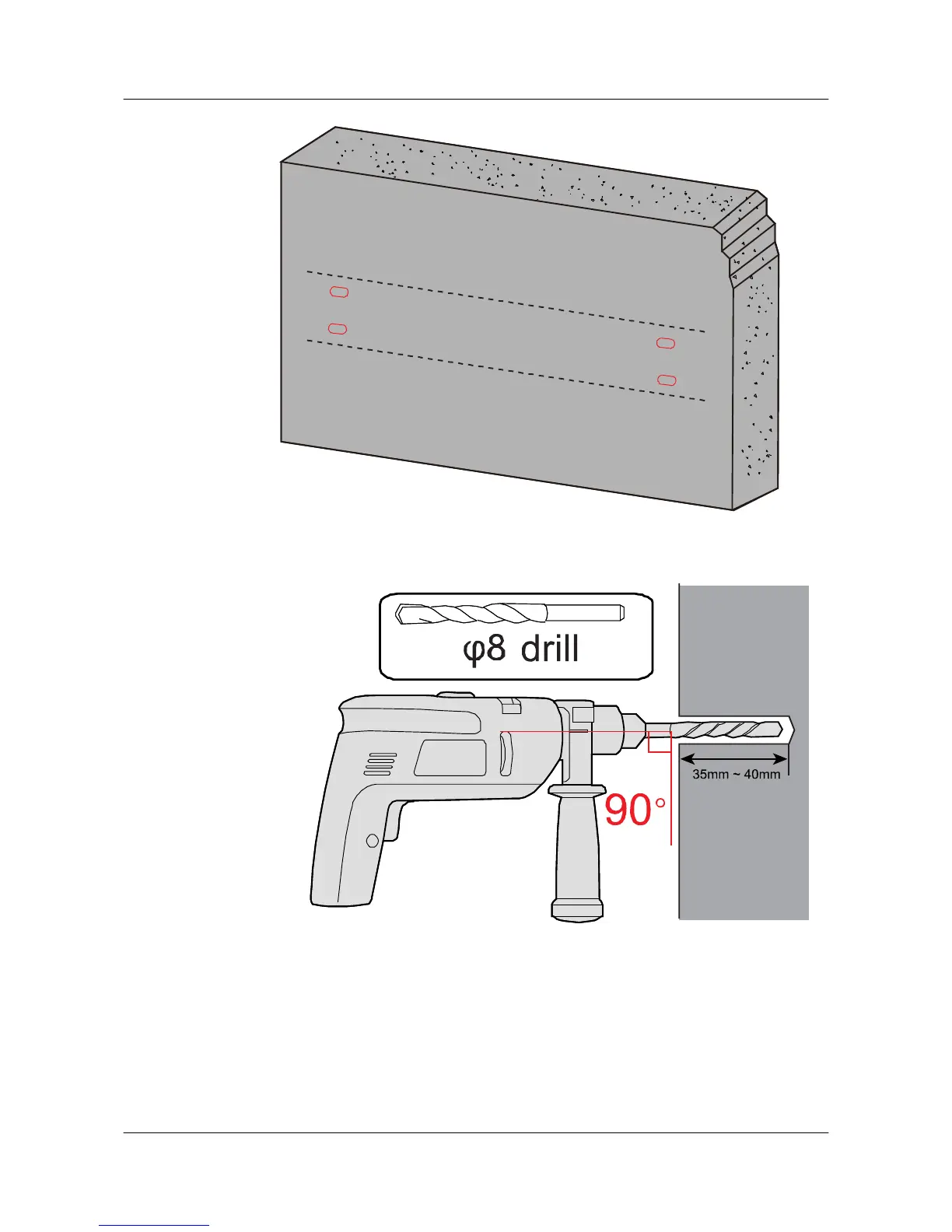

3. Install expansion bolts in the wall.
a. Use a φ8 drill bit to drill 35 mm to 40 mm deep holes in the marked positions.
b. Insert expansion bolts into the holes and screw the nuts to fasten the expansion bolts.
