Huawei S5700 Series Hardware Description

Table 3-51 Version mapping
Series Model Software Version
S5700-LI S5700-28TP-PWR-LI-AC V200R003C10 and later versions
NOTE
This model does not match V200R005C00,
V200R005C01, V200R005C02, V200R005C03,
or V200R007C10.
Appearance and Structure

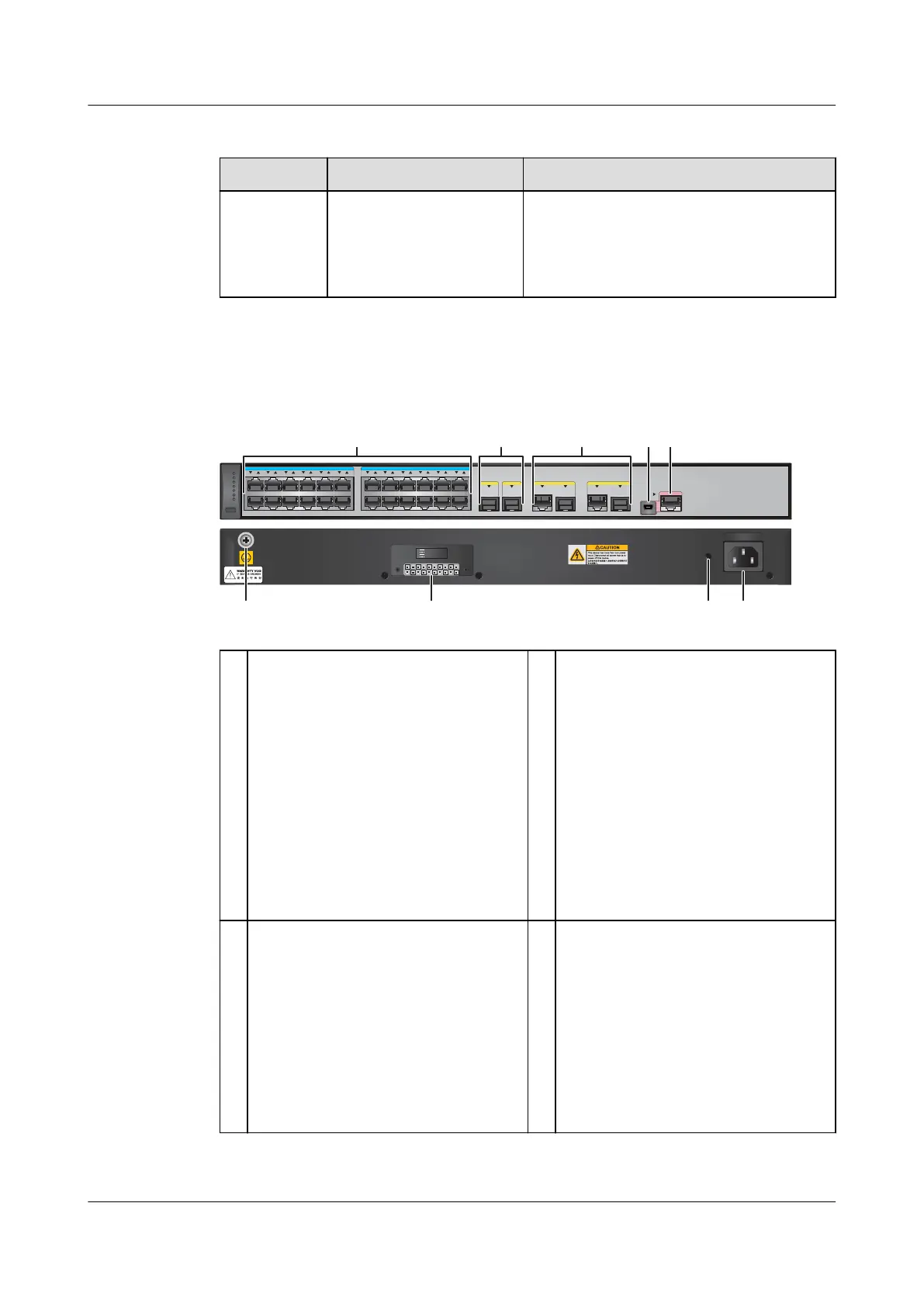

Figure 3-20 S5700-28TP-PWR-LI-AC appearance
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
CONSOLE
25 26 27
1G/STACK-5G 1G
MODE
HUAWEI
STCK
PoE
SPED
STAT
SYS
PWR
RPS
28
1G
S5700-28TP-PWR-LI-AC
~100-240 V; 50/60Hz; 7A
+12V;10A
-53.5V;15A
1
67 9
23
8
45
1 Twenty-four PoE+ 10/100/1000BASE-T
ports
2 Two 1000BASE-X ports
Applicable modules and cables:
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
l GE copper module
l Stack optical module (applicable in
V200R007C00 and later versions)
l 1 m and 10 m SFP+ copper cables
l 3 m and 10 m AOC cables
3 Two combo ports (10/100/1000BASE-T
+ 100/1000BASE-X)
Modules applicable to combo optical
ports:
l FE optical module
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
4 One mini USB port
S5700 Series Ethernet Switches
Hardware Description
3 Chassis
Issue 24 (2016-08-12) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
121

Huawei S5700 Series Specifications

General

Model	S5700 Series
Category	Switch
Power Supply	AC or DC
Fixed GE Ports	24/48 (depending on model)
PoE	Available on some models
Routing Protocols	RIP, OSPF, BGP, IS-IS
Management	SNMP, RMON, Web-based, CLI
Operating Temperature	0°C to 45°C
VLAN	4094
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm
