Huawei S5700 Series Hardware Description

Table 3-70 Version mapping
Series Model Software Version
S5700-LI S5700-28X-LI-DC V200R002C00 and later versions
NOTE
This model does not match V200R003C02,
V200R003C10, V200R005C00SPC500,
V200R005C01, V200R005C02, V200R005C03,
or V200R007C10.
Appearance and Structure

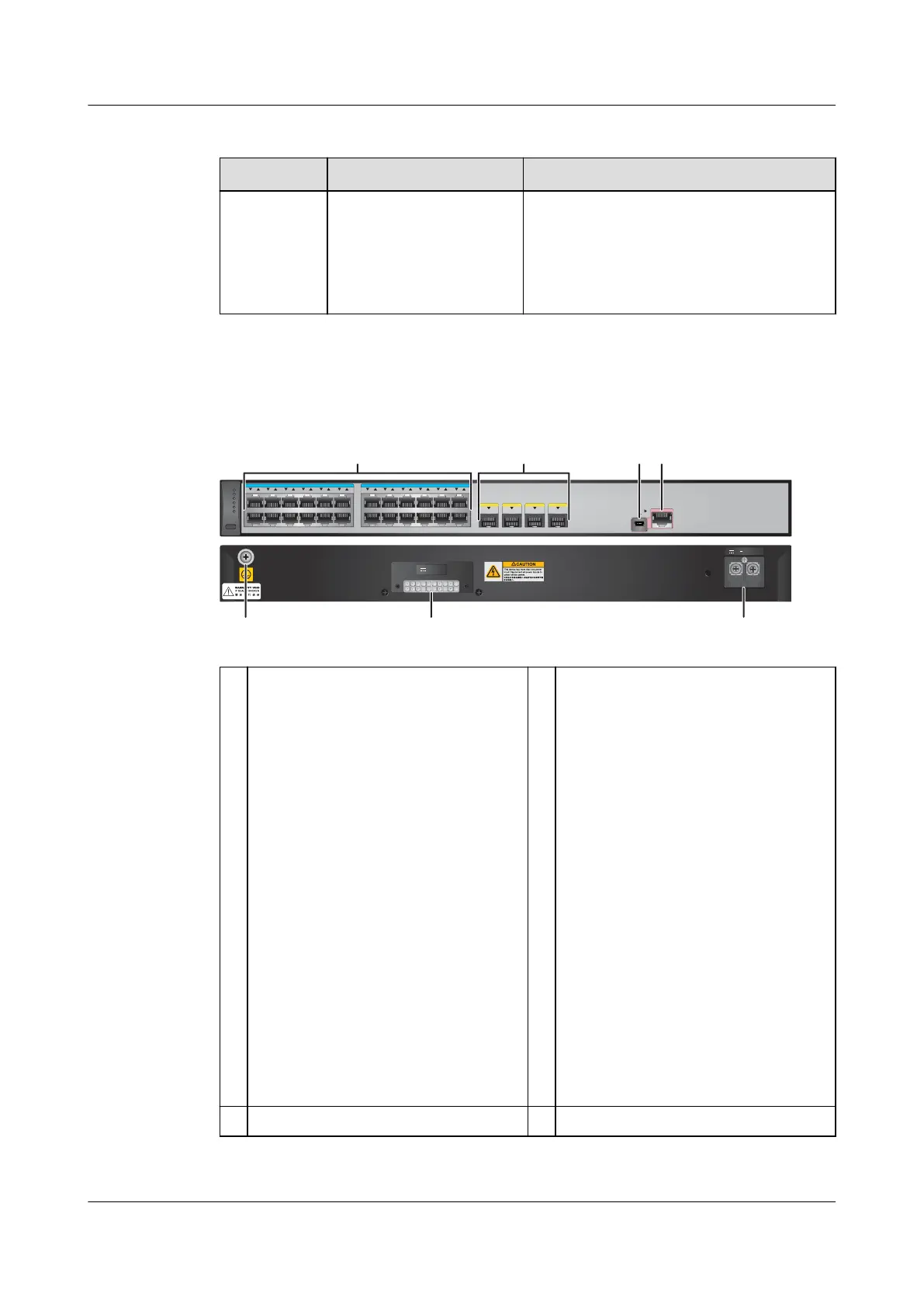

Figure 3-27 S5700-28X-LI-DC appearance
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
CONSOLE
1
2
3 4
MODE
STCK
SPED
STAT
SYS
RPS
PWR
HUAWEI
S5700-28X-LI-DC
1
2
34
+12V;8A
-48 -60V;0.8A
56 7
1 Twenty-four 10/100/1000BASE-T ports 2 Four 10GE SFP+ ports
Applicable modules and cables:
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
l GE copper module
l 10GE SFP+ optical module
l 10GE-CWDM optical module
(applicable in V200R005C00 and
later versions)
l 1 m, 3 m, and 10 m SFP+ high-
speed copper cables
l 5 m SFP+ high-speed copper cable
(applicable in V200R009C00 and
later versions)
l 3 m and 10 m AOC cables
(applicable in V200R003C00 and
later versions)
3
One mini USB port 4 One console port
S5700 Series Ethernet Switches
Hardware Description
3 Chassis
Issue 24 (2016-08-12) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
143

Huawei S5700 Series Specifications

General

Model	S5700 Series
Category	Switch
Power Supply	AC or DC
Fixed GE Ports	24/48 (depending on model)
PoE	Available on some models
Routing Protocols	RIP, OSPF, BGP, IS-IS
Management	SNMP, RMON, Web-based, CLI
Operating Temperature	0°C to 45°C
VLAN	4094
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm
