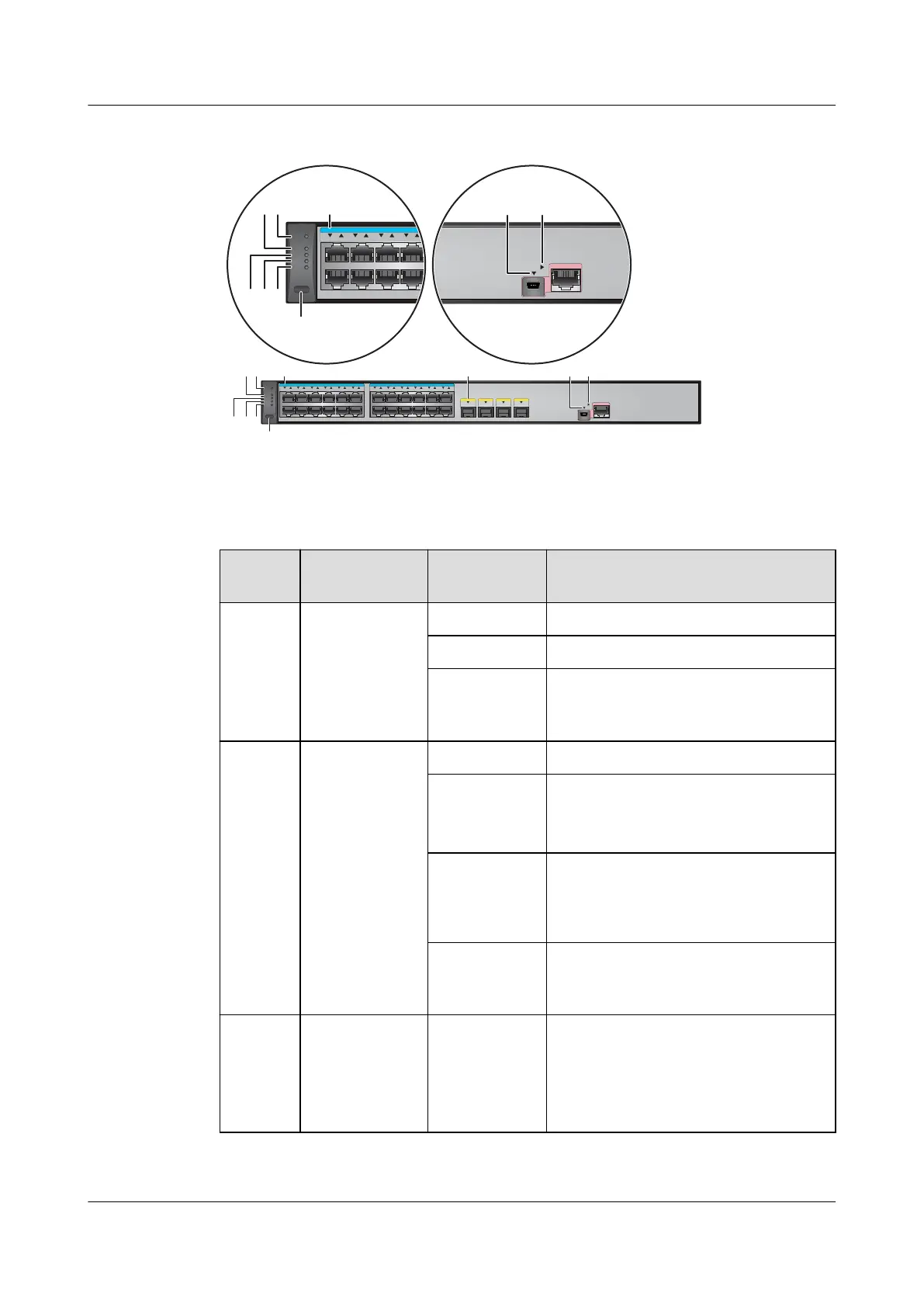

Figure 3-51 Indicators on the S5700S-28P-LI-AC
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
21
22 23 24
CONSOLE
25 26 27
28
MODE
STCK
SPED
STAT
SYS
PWR
HUAWEI
S5700S-28P-LI-AC
17 78 9
6
2
543
12 34 56 78
MODE
STCK
SPED
STAT
SYS
PWR
HUAWEI
S5700S-28P-LI-AC
17
6
2
543
CONSOLE
8 9
Table 3-137 Description of indicators on the switch
Number
Indicator/
Button
Color Description
1 PWR: built-in
power module
indicator
- Off: The switch is powered off.
Green Steady on: The switch is powered on.
Yellow Steady on: The built-in power module is
faulty, and the switch is powered by the
RPS system.
2 SYS: system
status indicator
- Off: The system is not running.
Green
l Fast blinking: The system is starting.
l Slow blinking: The system is
operating properly.
Yellow Blinking: The system is in the sleep state.
NOTE
The system can wake from the sleeping state
if you press the MODE button.
Red Steady on: The system does not work
normally after registration, or a fan or
temperature alarm has been generated.
3 STAT: status
indicator
Green
l Off: The status mode is not selected.
l Steady on: The status mode (default
mode) is selected. If the status mode
is selected, the service port indicator
shows the port link or activity state.
