Huawei S5700 Series Hardware Description

Table 3-148 Version mapping
Series Model Software Version
S5700S-LI S5700S-52P-LI-AC V200R001C00 and later versions
NOTE
This model does not match V200R001C01,
V200R003C02, V200R003C10,
V200R005C00SPC500, V200R005C01,
V200R005C02, V200R005C03, or
V200R007C10.
Appearance and Structure

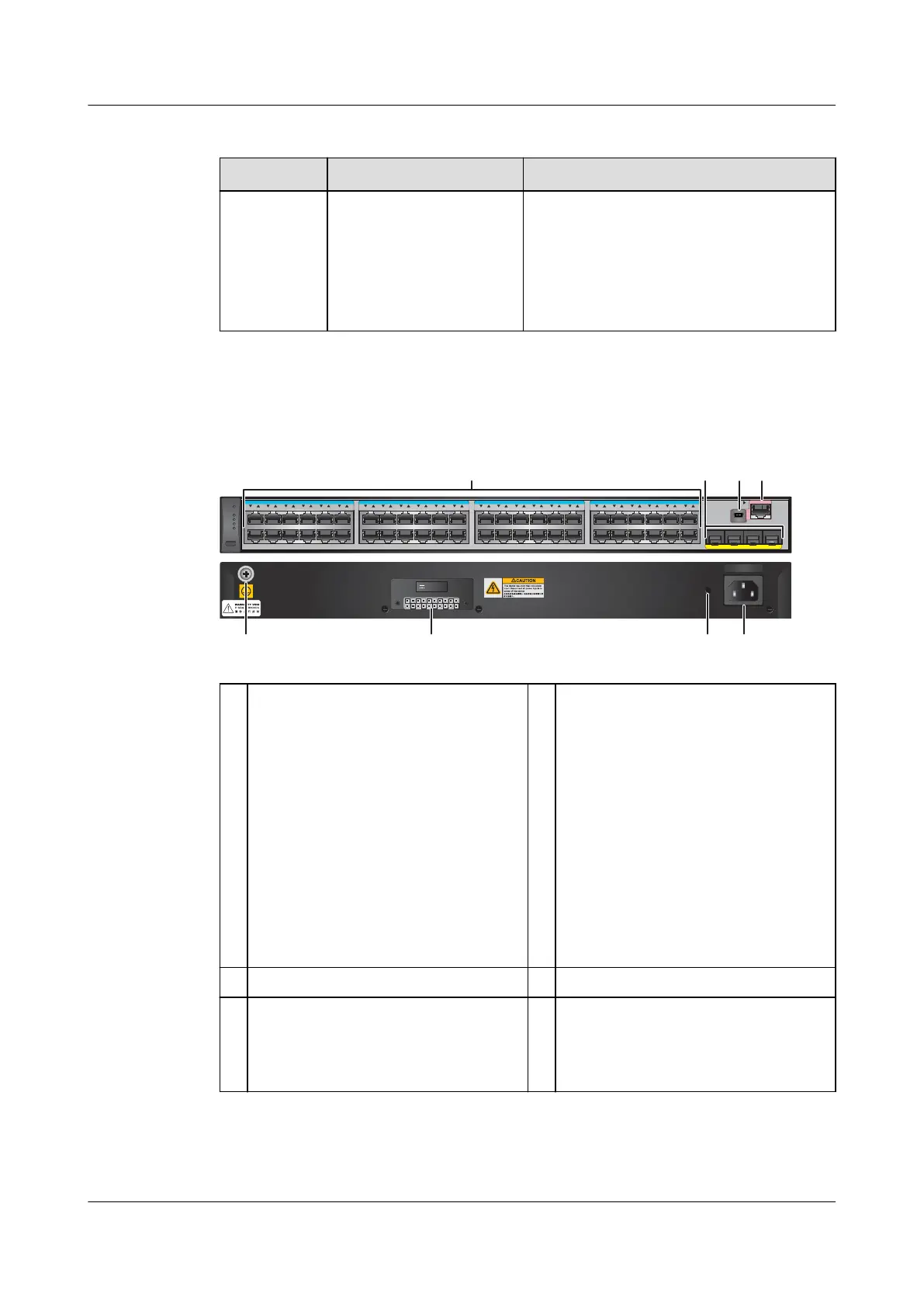

Figure 3-56 S5700S-52P-LI-AC appearance
~100-240V;50/60Hz;2A
+12V;5A
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
CONSOLE
MODE
STCK
SPED
STAT
SYS
PWR
HUAWEI
S5700S-52P-LI-AC
49 50 51 52
1
56 78
234
1 Forty-eight 10/100/1000BASE-T ports 2 Four 1000BASE-X ports
Applicable modules and cables:
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
l GE copper module (applicable in
V200R002C00 and later versions)
l 1 m and 10 m SFP+ copper cables
l 3 m and 10 m AOC cables
(applicable in V200R003C00 and
later versions)
3 One mini USB port 4 One console port
5 Ground screw
NOTE
It is used with a ground cable.
6 RPS socket
NOTE
It is used with an RPS cable, which is not
hot swappable.
S5700 Series Ethernet Switches
Hardware Description
3 Chassis
Issue 24 (2016-08-12) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
234

Huawei S5700 Series Specifications

General

Model	S5700 Series
Category	Switch
Power Supply	AC or DC
Fixed GE Ports	24/48 (depending on model)
PoE	Available on some models
Routing Protocols	RIP, OSPF, BGP, IS-IS
Management	SNMP, RMON, Web-based, CLI
Operating Temperature	0°C to 45°C
VLAN	4094
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm
