Huawei S5700 Series Hardware Description

Appearance and Structure

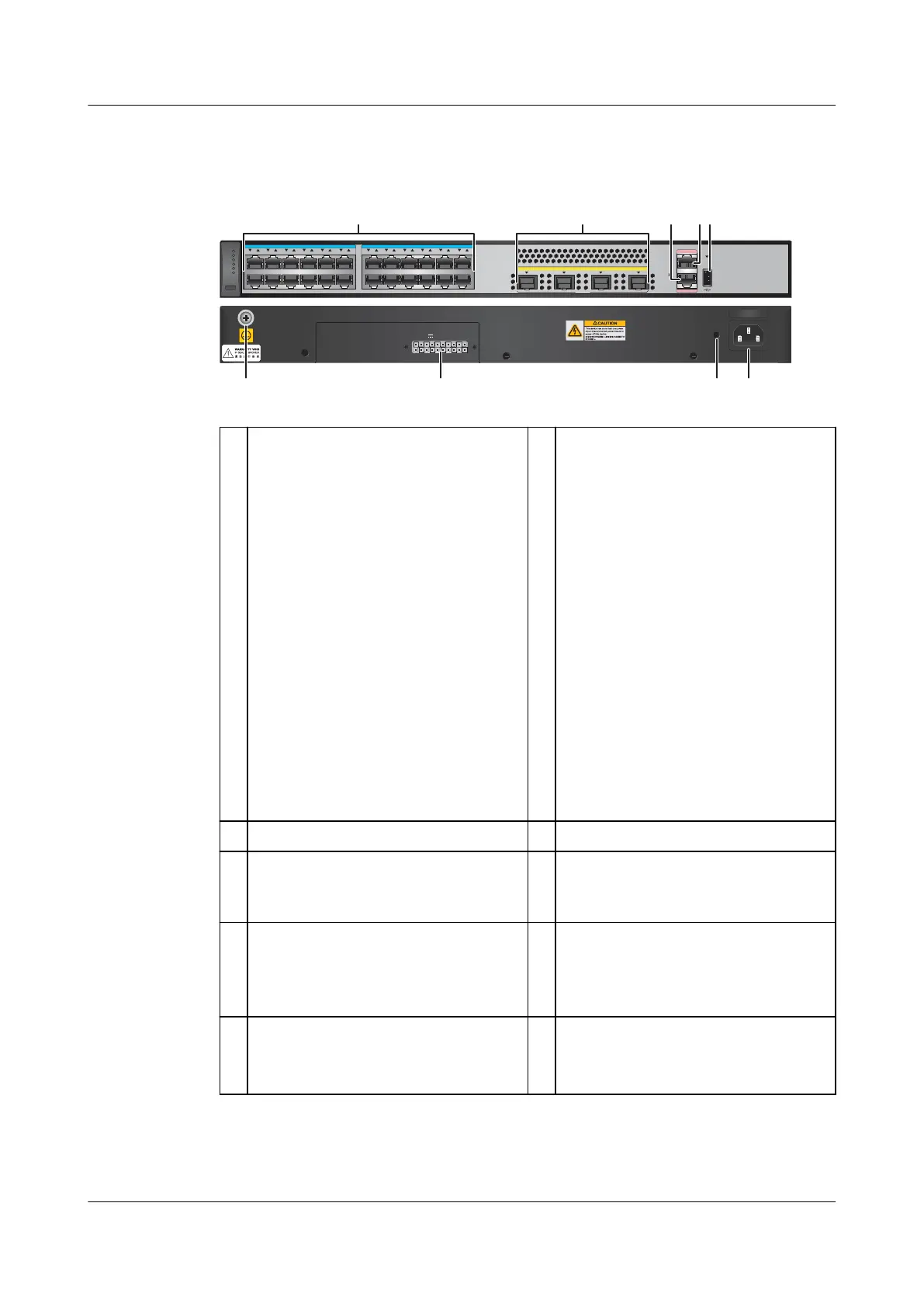

Figure 3-58 S5700S-28X-LI-AC appearance
+12 V;10 A
S5700S-28X-LI-AC 10G/1G
1 2 3
4
ETH
MODE
HUAWEI
STCK
SPED
STAT
SYS
PWR
RPS
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
CONSOLE
3
1 2
4 5
67 8 9
~100-240V;50/60Hz;0.8A
1 Twenty-four 10/100/1000BASE-T ports 2 Four 10GE SFP+ ports
Applicable modules and cables:
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
l GE copper module (only 1000
Mbit/s supported)
l 10GE SFP+ optical module
(maximum transmission distance of
10 km)
l 1 m, 3 m, and 10 m SFP+ high-
speed copper cables
l 5 m SFP+ high-speed copper cable
(applicable in V200R009C00 and
later versions)
l 3 m and 10 m AOC cables
3 One ETH management port 4 One console port
5 One USB port 6 Ground screw
NOTE
It is used with a ground cable.
7 RPS socket
NOTE
It is used with an RPS cable, which is not
hot swappable.
8 Jack for AC terminal locking latch
NOTE
The AC terminal locking latch is not
delivered with the switch.
9 AC socket
NOTE
It is used with an AC power cable.
- -
Port Description
10/100/1000BASE-T port
S5700 Series Ethernet Switches
Hardware Description
3 Chassis
Issue 24 (2016-08-12) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
239

Huawei S5700 Series Specifications

General

Model	S5700 Series
Category	Switch
Power Supply	AC or DC
Fixed GE Ports	24/48 (depending on model)
PoE	Available on some models
Routing Protocols	RIP, OSPF, BGP, IS-IS
Management	SNMP, RMON, Web-based, CLI
Operating Temperature	0°C to 45°C
VLAN	4094
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm
