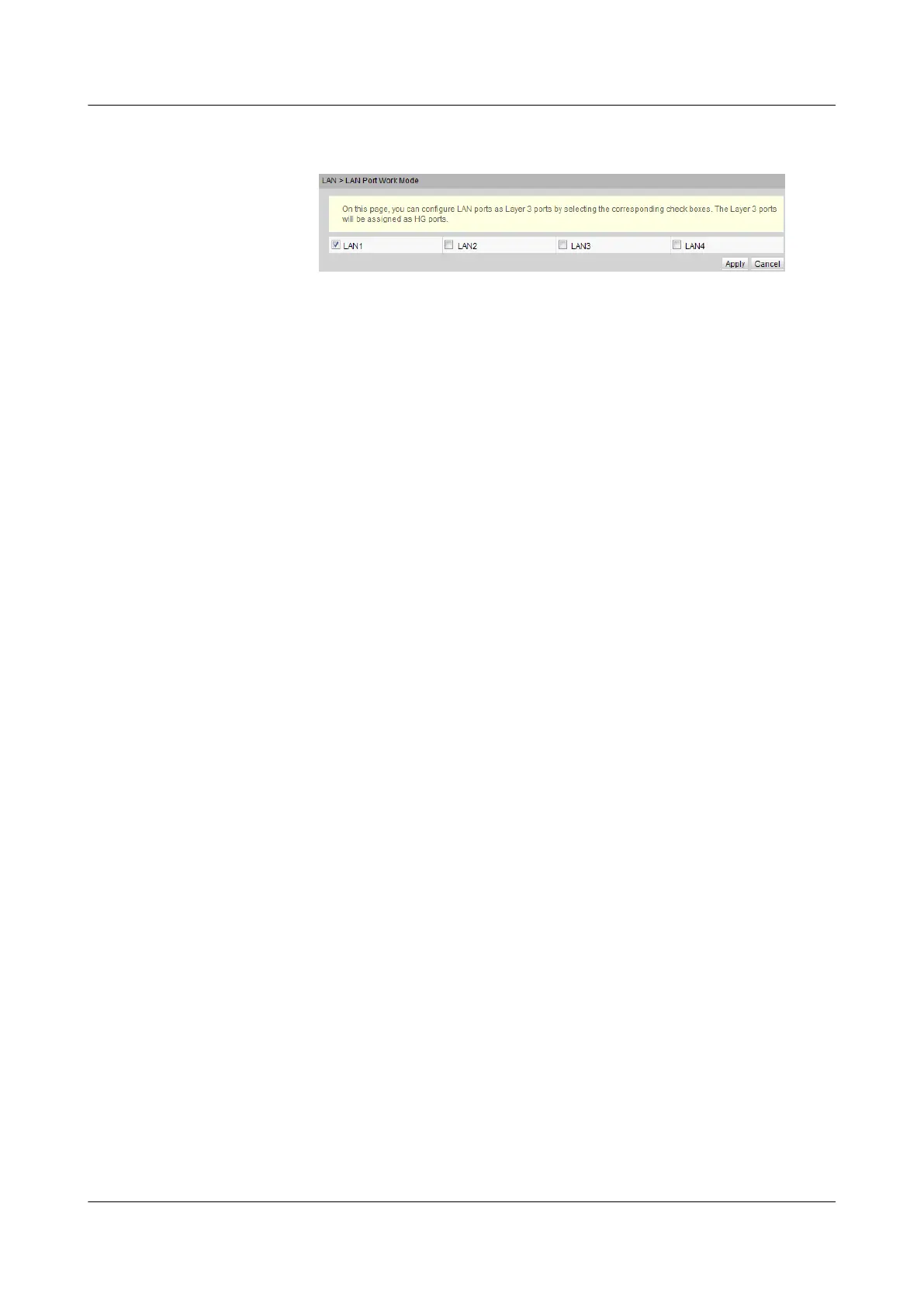

a. In the navigation tree, choose LAN > LAN Port Work Mode. Select the check
box of LAN 1 and set LAN1 to work in the Layer 3 mode.
b. Click Apply.
2. Configure parameters of a WAN port.
a. In the navigation tree, choose WAN > WAN Configuration.
b. In the right pane, click New. In the dialog box that is displayed, configure
parameters of a WAN port as follows:
– Select Enable WAN Connection to enable the new WAN connection.
– Set Encapsulation mode to PPPoE.
– Set Mode to Route WAN.
– Set Service List to INTERNET. (For configuring the Internet access service,
INTERNET or a combination containing INTERNET needs to be selected.)
– Select Enable VLAN.
– Set VLAN ID to 1001. (The VLAN ID of the ONT must be the same as the
user-side VLAN ID configured on the OLT.)
– Set 802.1p to 0.
– Set User Name to iadtest@pppoe and Password to iadtest. (The user name
and password must be the same as the user name and password configured
on the BRAS.)
– Select the check box next to LAN1 in the Binding options area, indicating
that the WAN port is bound to LAN1.
– Set IP Acquisition Mode to PPPoE.
– Select Enable NAT to enable the NAT function. (NAT must be enabled to
configure the Internet access service.)
