Huawei SmartLogger3000 Quick Guide

5

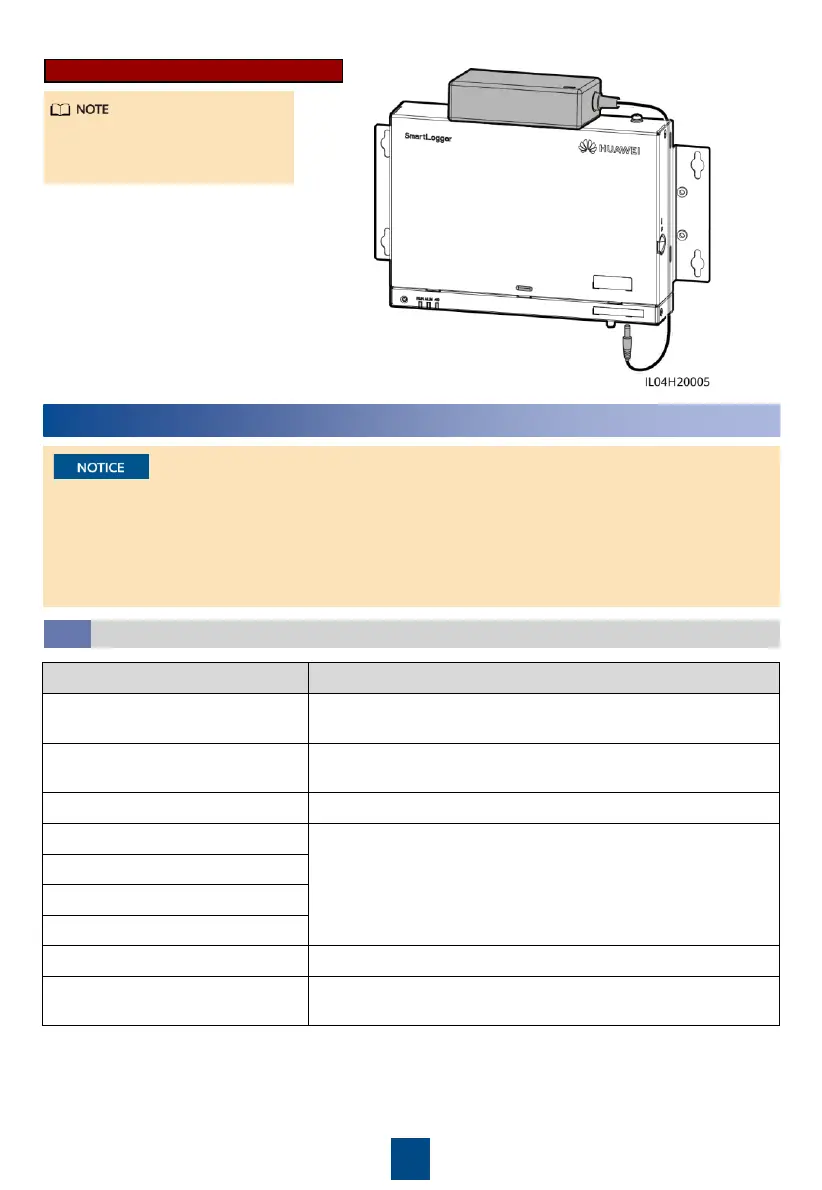

Flat Surface-Mounted Installation
Ensure that the power adapter
indicator faces upward or
outward.
4
Electrical Connections
Preparing Cables
4.1
Type
Recommended Specifications
PE cable
Outdoor copper cable with a cross
-sectional area of 4–6 mm
2
or 12
–10 AWG
RS485 communications cable
Two
-core or multi-core outdoor shielded cable with a cross-
sectional area of
0.2–2.5 mm
2
or 24–14 AWG
MBUS cable (optional)
Supplied with the
SmartLogger
DI signal cable
Two
-core or multi-core cable with a cross-sectional area of
0.2
–1.5 mm
2
or 24–16 AWG
Output p
ower cable
AI signal cable
DO signal cable
Ethernet cable
Supplied with the
SmartLogger
24 V
input power cable (optional)
Two
-core cable with a cross-sectional area of 0.2–1.5 mm
2
or
24
–16 AWG
•
Connect cables in accordance with the installation laws and regulations of the country or
region where the project is located.
•
Before connecting cables to ports, leave enough slack to reduce the tension on the cables and
prevent poor cable connections.
•
One SmartLogger3000A can connect to a maximum of 80 solar inverters, and one
SmartLogger3000B can connect to a maximum of 150 solar inverters.
