Huawei SmartLogger3000 Quick Guide

10

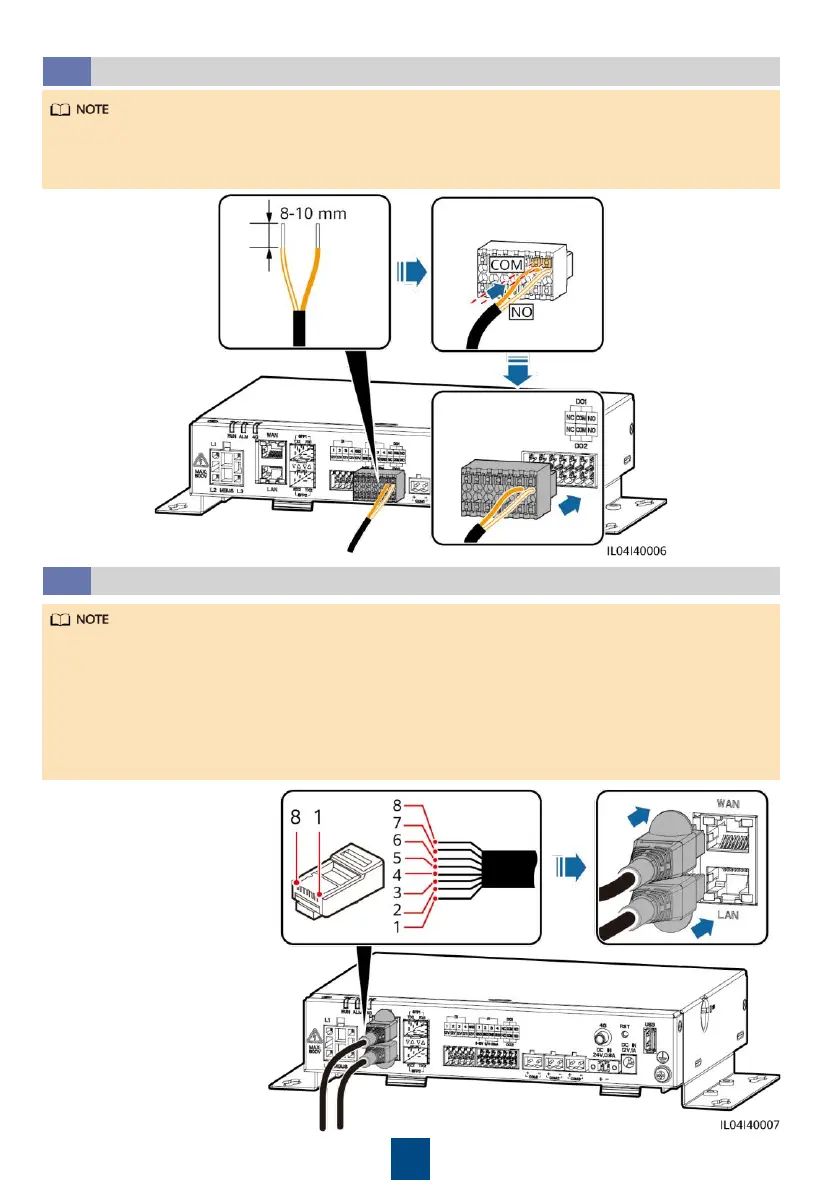

Connecting the Ethernet cable
4.9
Connecting the DO Signal Cable
4.8
•
The SmartLogger can connect to an Ethernet switch, router, or PC over a WAN port.
•
The SmartLogger can connect to a SmartModule or PC over a LAN port.
•
If the delivered network cable is too short, you are advised to prepare a network cable of
Cat 5e or higher specifications and shielded RJ45 connectors. The recommended
communication distance is less than or equal to 100 m. When crimping the network cable,
ensure that the shielding layer of the cable is securely connected to the metal shell of the
RJ45 connectors.
•
The DO port supports a maximum of 12 V signal voltage. The NC/COM is a normally closed
contact, while the NO/COM is a normally open contact.
•
It is recommended that the transmission distance be less than or equal to 10 m.
(1) White
-and-
orange
(2)
Orange
(3) White
-and-
green
(4) Blue
(5) White
-and-
blue
(6) Green
(7) White
-and-
brown
(8) Brown
