Huawei SmartLogger3000 Quick Guide

11
Connecting the Optical Jumper
4.10
•
The SmartLogger can connect to devices such as the access terminal box through optical
fibers.
•
Optical modules are optional. Configure the 100M or 1000M optical module based on the
peer port on the optical switch. The optical module should use the SFP or eSFP encapsulation.
The transmission distance supported by the 100M optical module should be greater than or
equal to 12 km, and the transmission distance supported by the 1000M optical module
should be greater than or equal to 10 km.
•
When inserting an optical module into the SFP1 port, verify that the side with a label faces
upward. When inserting an optical module into the SFP2 port, verify that the side with a label
faces downward.

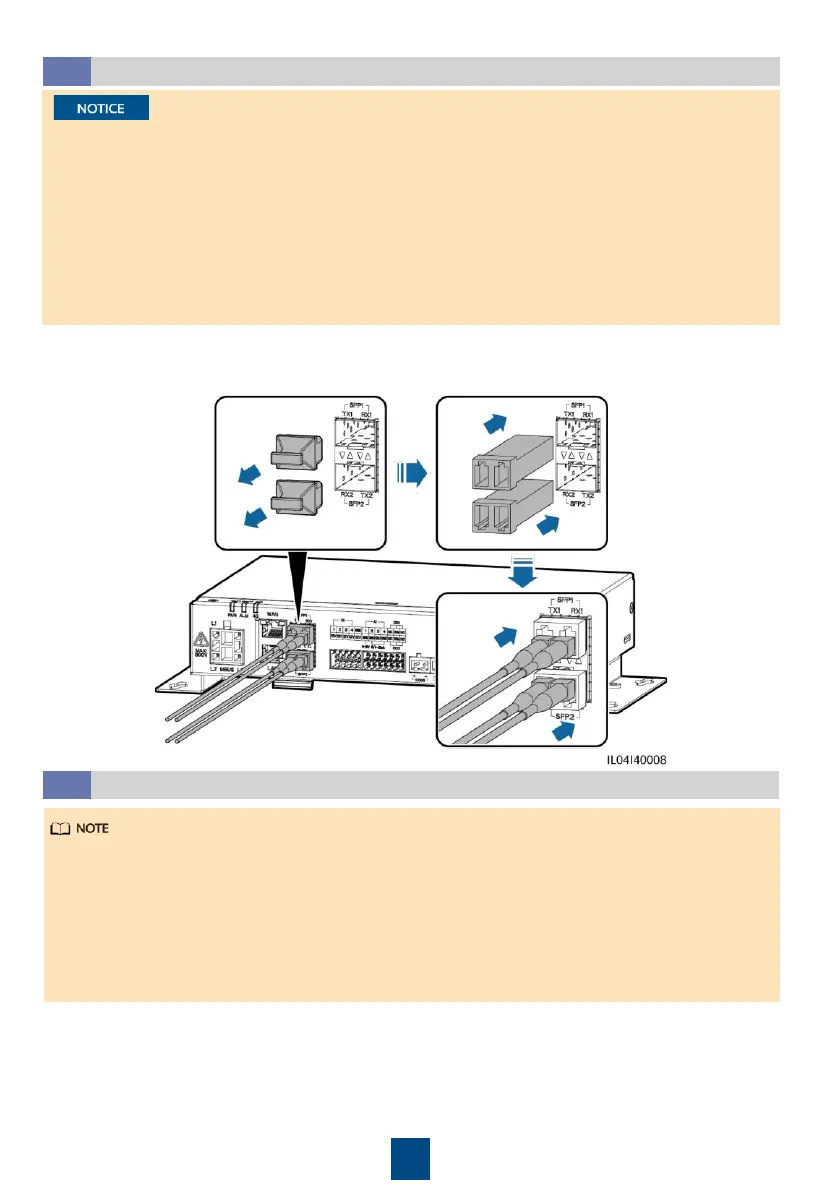

1. Insert the optical module into the SFP1 or SFP2 port. If there are two modules, insert one
into each port.
2. Connect the two cables delivered with the optical modules to the ports on the optical
modules.
Installing the SIM Card and 4G Antenna
4.11
•
Prepare a standard SIM card (size: 15 mm x 25 mm; capacity ≥ 64 KB). Monthly traffic of the
SIM card ≥ Monthly traffic of solar inverters + Monthly traffic of EMIs + Monthly traffic of
optimizers. The model of the energy storage system in the following table is LUNA2000-(5-
30)-S0. If other devices are connected to the SmartLogger in the network, the monthly traffic
of the SIM card needs to be increased as required.
•
Install the SIM card in the direction shown by the silkscreen on the SIM card slot.
•
Press the SIM card in place to lock it. In this case, the SIM card is correctly installed.
•
When removing the SIM card, push it inward to eject it.
