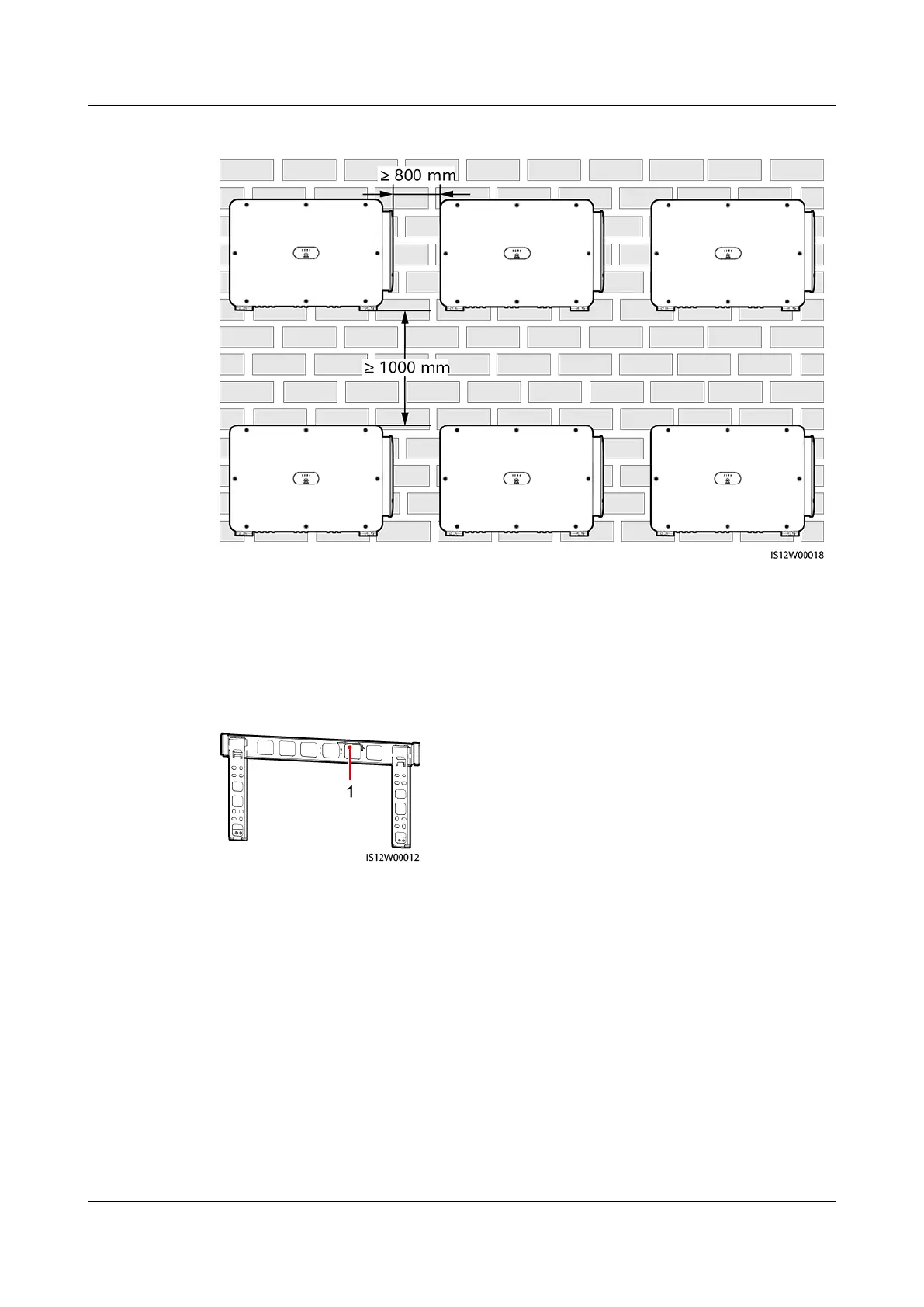

Figure 4-6 Stacked installation mode (not recommended)
4.4 Installing the Mounting Bracket
Before installing the mounting bracket, remove the security Torx wrench and keep
it for later use.
Figure 4-7 Position for binding the security Torx wrench
(1) Security Torx wrench
The mounting bracket of the solar inverter has four groups of tapped holes, each
group containing four tapped holes. Mark any hole in each group based on site
requirements and mark four holes in total. The two round holes are
recommended.
SUN2000-(100KTL, 110KTL, 115KTL)-M2
User Manual 4 Installation
Issue 07 (2023-04-30) Copyright © Huawei Technologies Co., Ltd. 34
