2.4.2 Circuit Diagram
The inverter connects to four PV strings and tracks the maximum power point of
the PV strings through two maximum power point tracking (MPPT) circuits. It also
converts DC power into three-phase AC power through an inverter circuit. Surge
protection is supported on both the DC and AC sides.

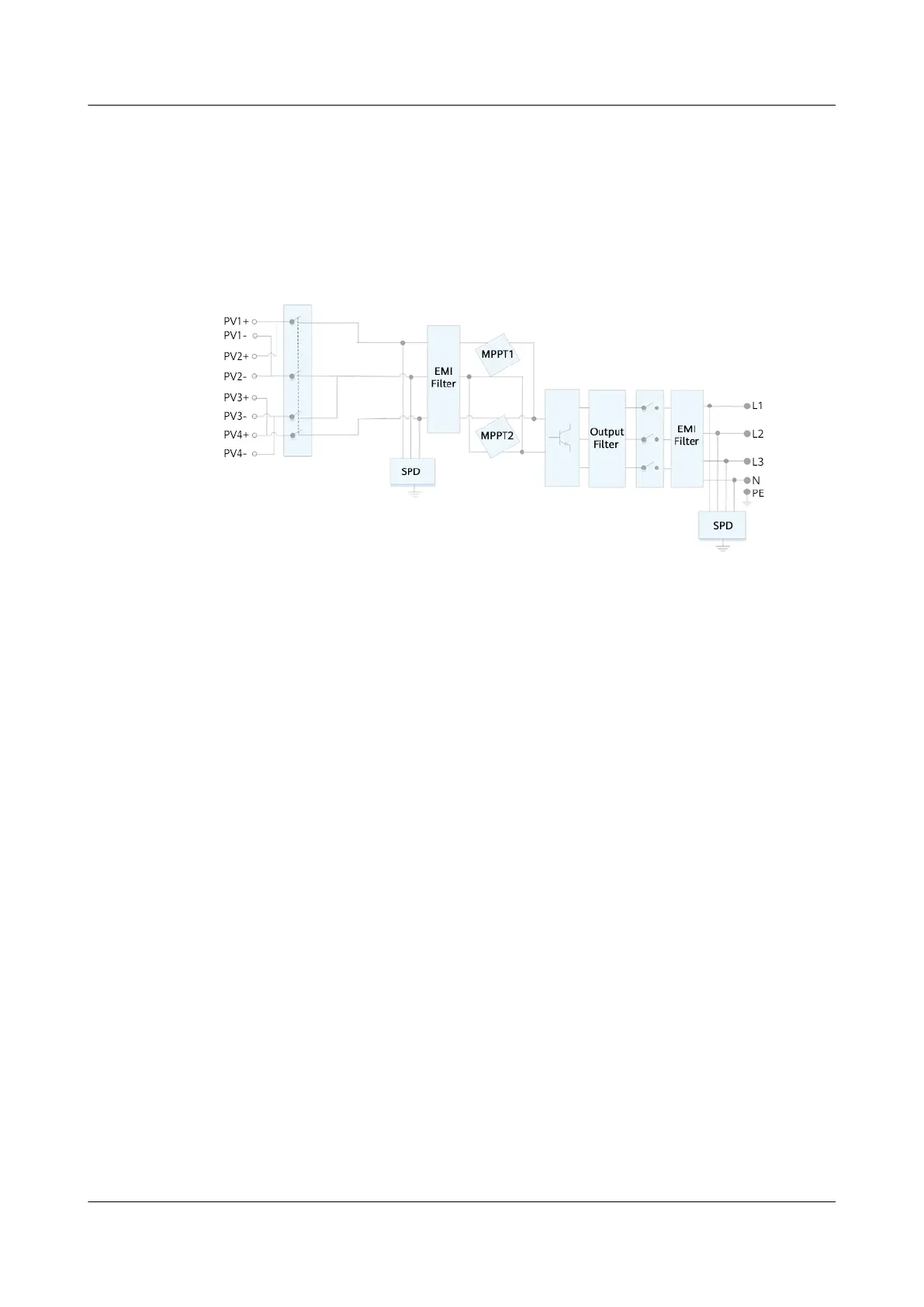

Figure 2-6 Conceptual diagram
SUN2000-(12KTL-25KTL)-M5 Series
User Manual 2 Overview
Issue 10 (2024-05-14) Copyright © Huawei Digital Power Technologies Co., Ltd. 20
